Water Pump - 3.0L (4V): Notes

WARNING: This page is about a different variant/trim than selected.

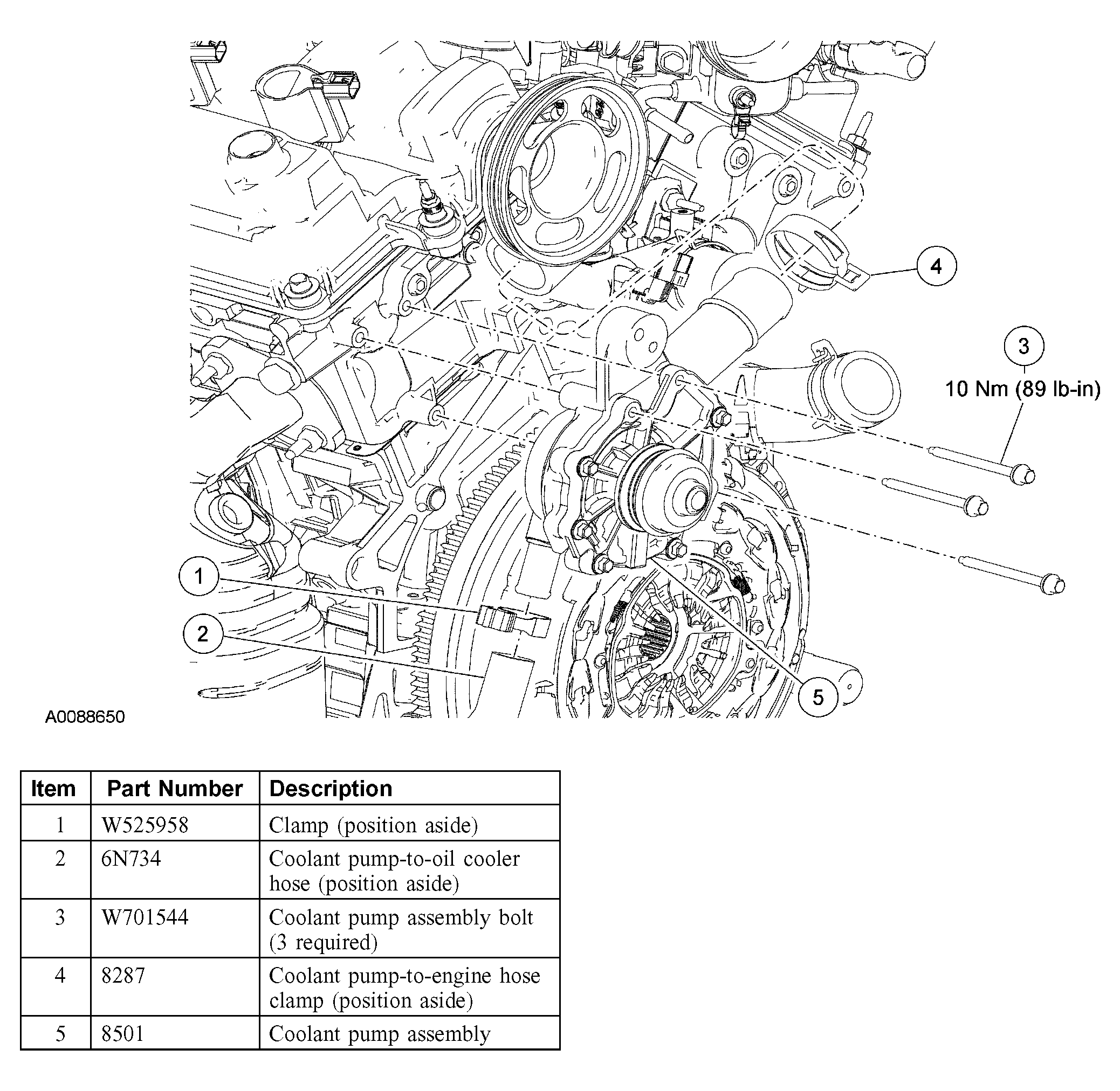

Fig 1: Locating Water Pump Component Location - 3.0L (4V) With Torque Specifications
G03900342Courtesy of FORD MOTOR CO.
