Section 14 (Engine Cooling - (Except Hybrid))
>>
Removal And Installation
>>
Thermostat Housing - 3.0L (4V)
>>
Notes
Thermostat Housing - 3.0L (4V): Notes
WARNING:
This page is about a different variant/trim than selected.

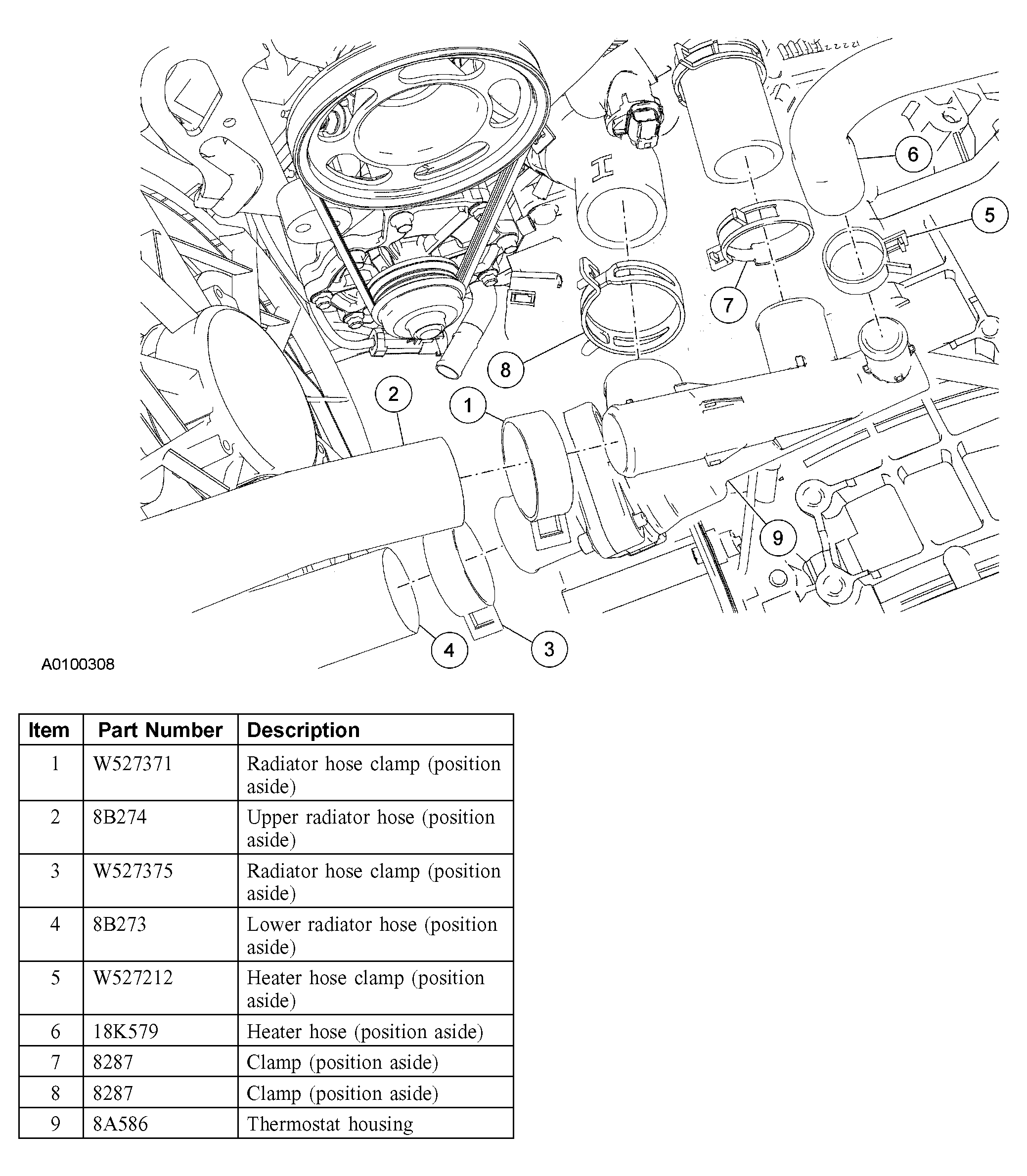

Fig 1: Locating Thermostat Housing Component Location - 3.0L (4V)
Courtesy of FORD MOTOR CO.
