Thermostat Housing - 2.3L: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: The thermostat and thermostat housing are serviced as an assembly.

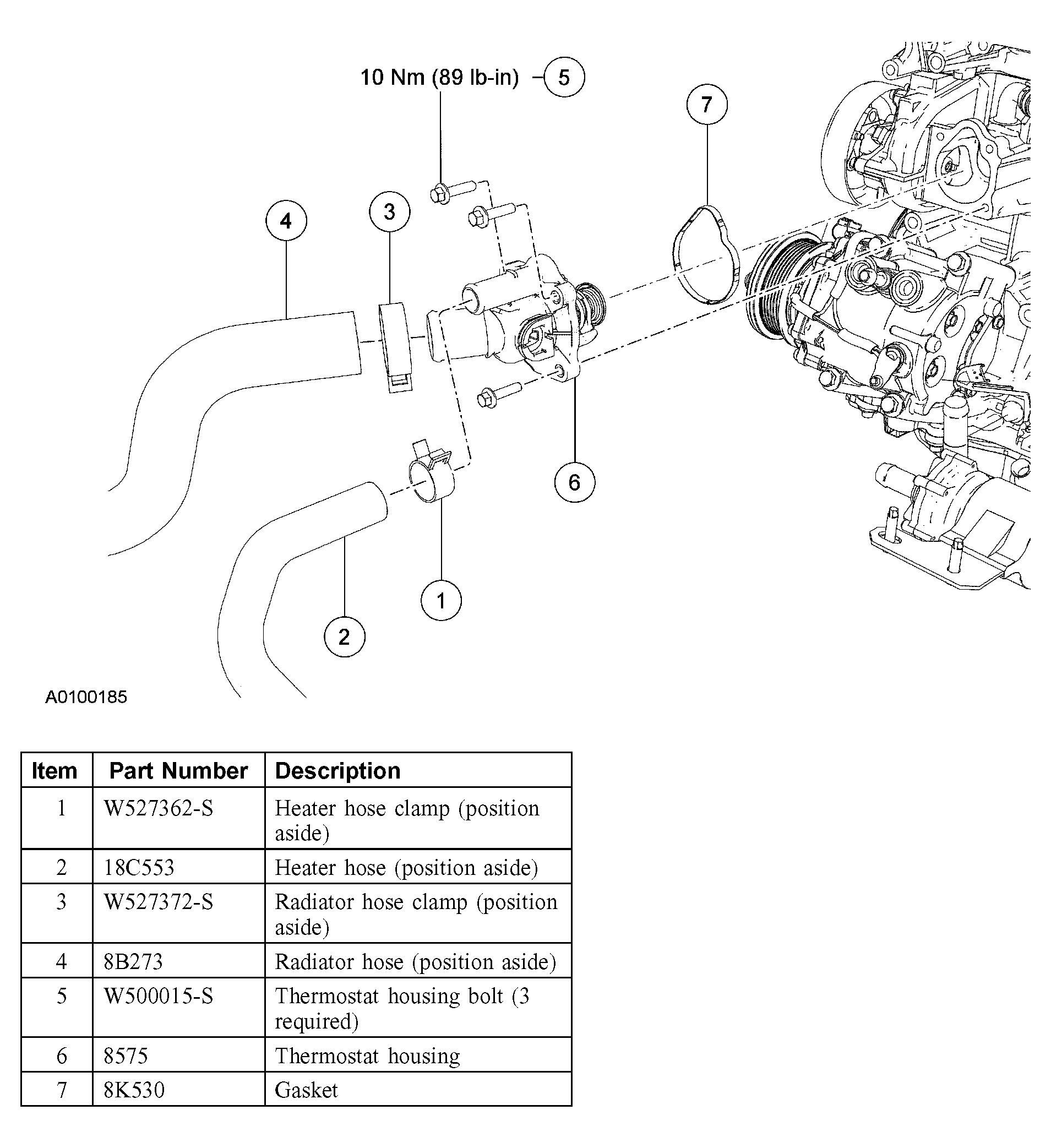

Fig 1: Exploded View Of Thermostat Housing - 2.3L With Torque Specifications
G03900336Courtesy of FORD MOTOR CO.
