Cooling Fan Motor and Shroud: Notes

WARNING: This page is about a different variant/trim than selected.

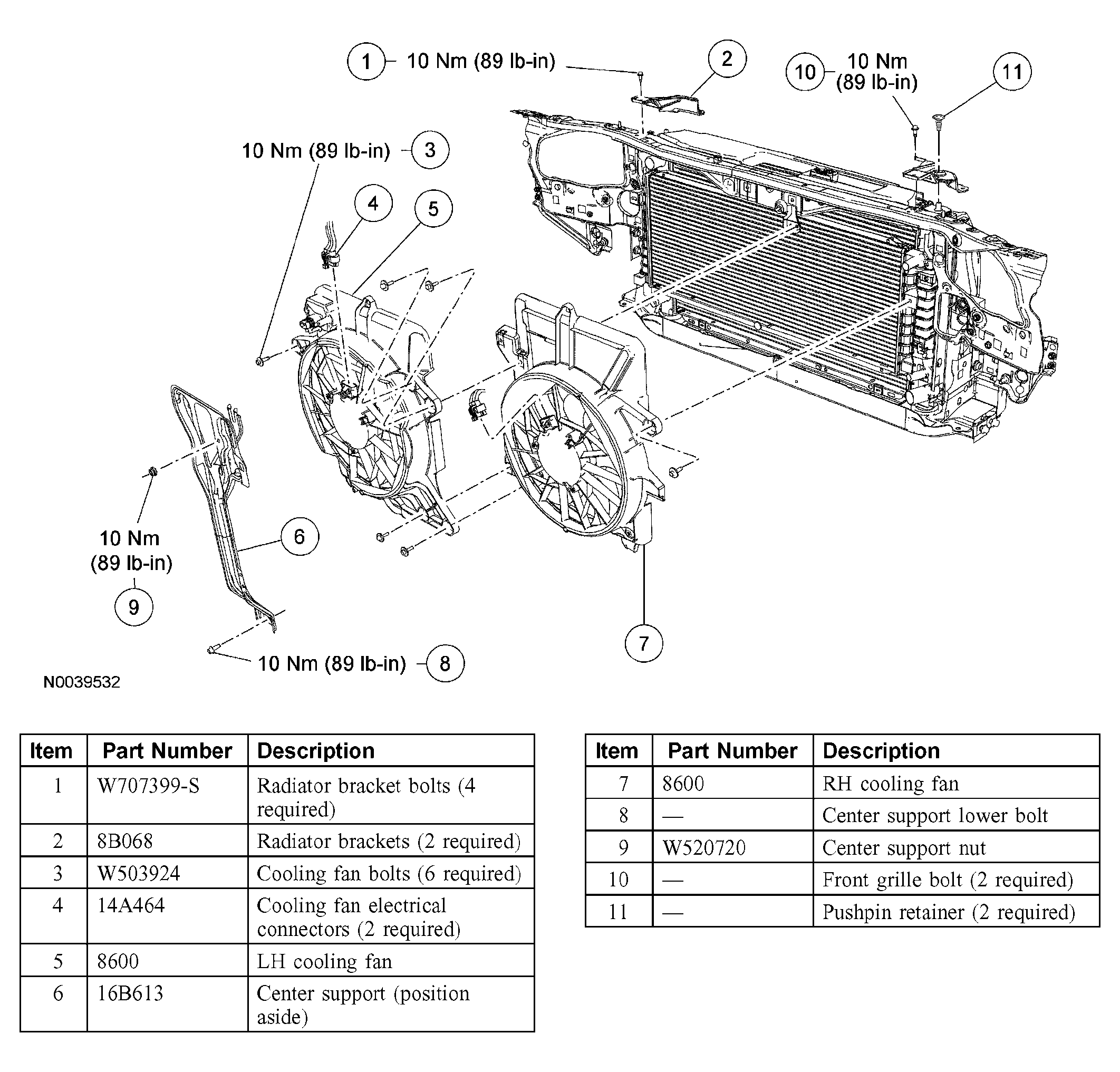

Fig 1: Removing Cooling Fan Motor And Shroud (Vehicles With 2-Piece Fan Shroud) With Torque Specifications
G03900344Courtesy of FORD MOTOR CO.

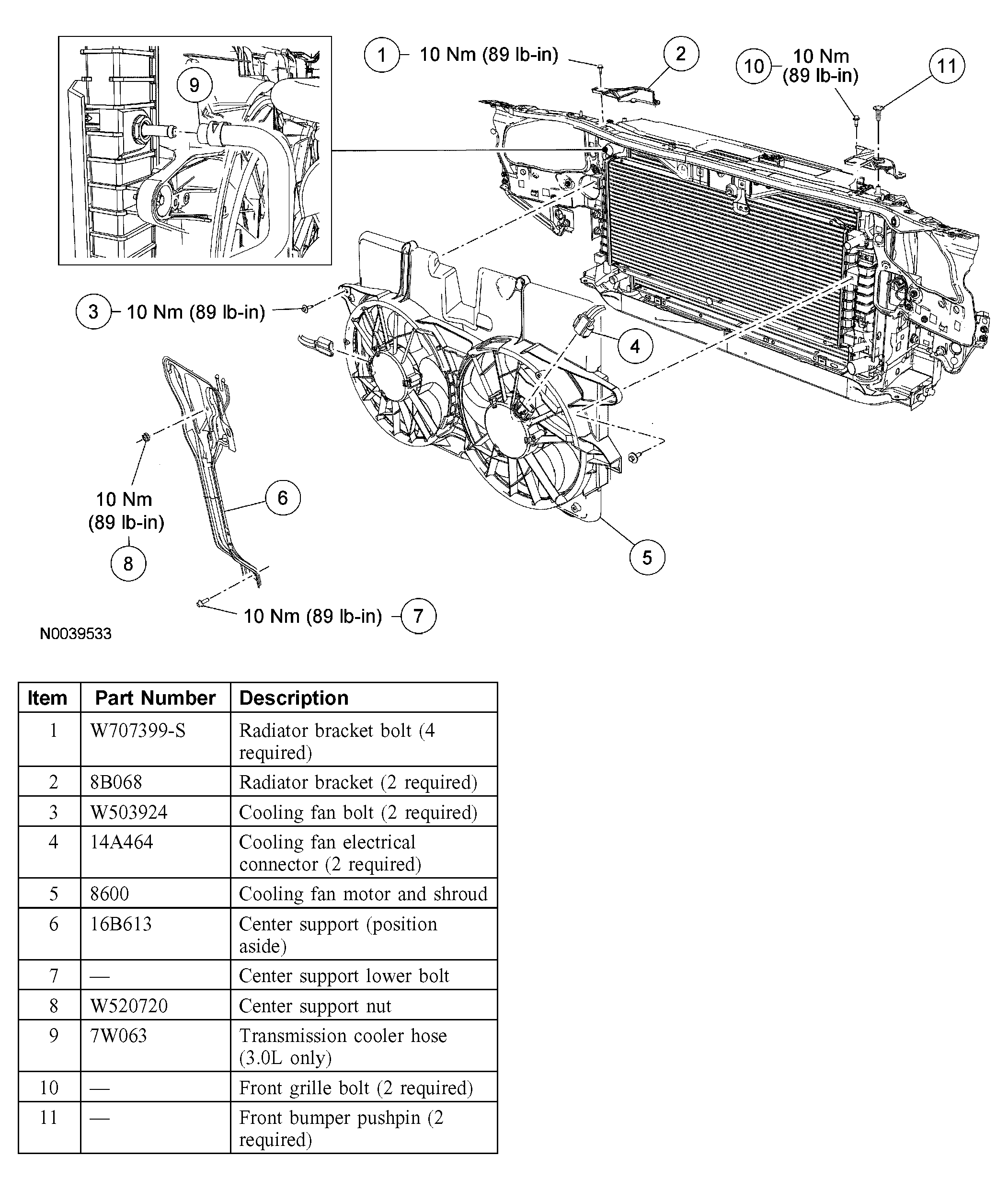

Fig 2: Removing Cooling Fan Motor And Shroud (Vehicles With 1-Piece Fan Shroud) With Torque Specifications
G03900345Courtesy of FORD MOTOR CO.
