Connector Circuit Reference

WARNING: This page is about a different variant/trim than selected.

Low Speed Cooling Fan Relay - 2.3L

Fig 1: Identifying Low Speed Cooling Fan Relay Pinout - 2.3L
G03900313Courtesy of FORD MOTOR CO.

Low Speed Cooling Fan Relay - 3.0L

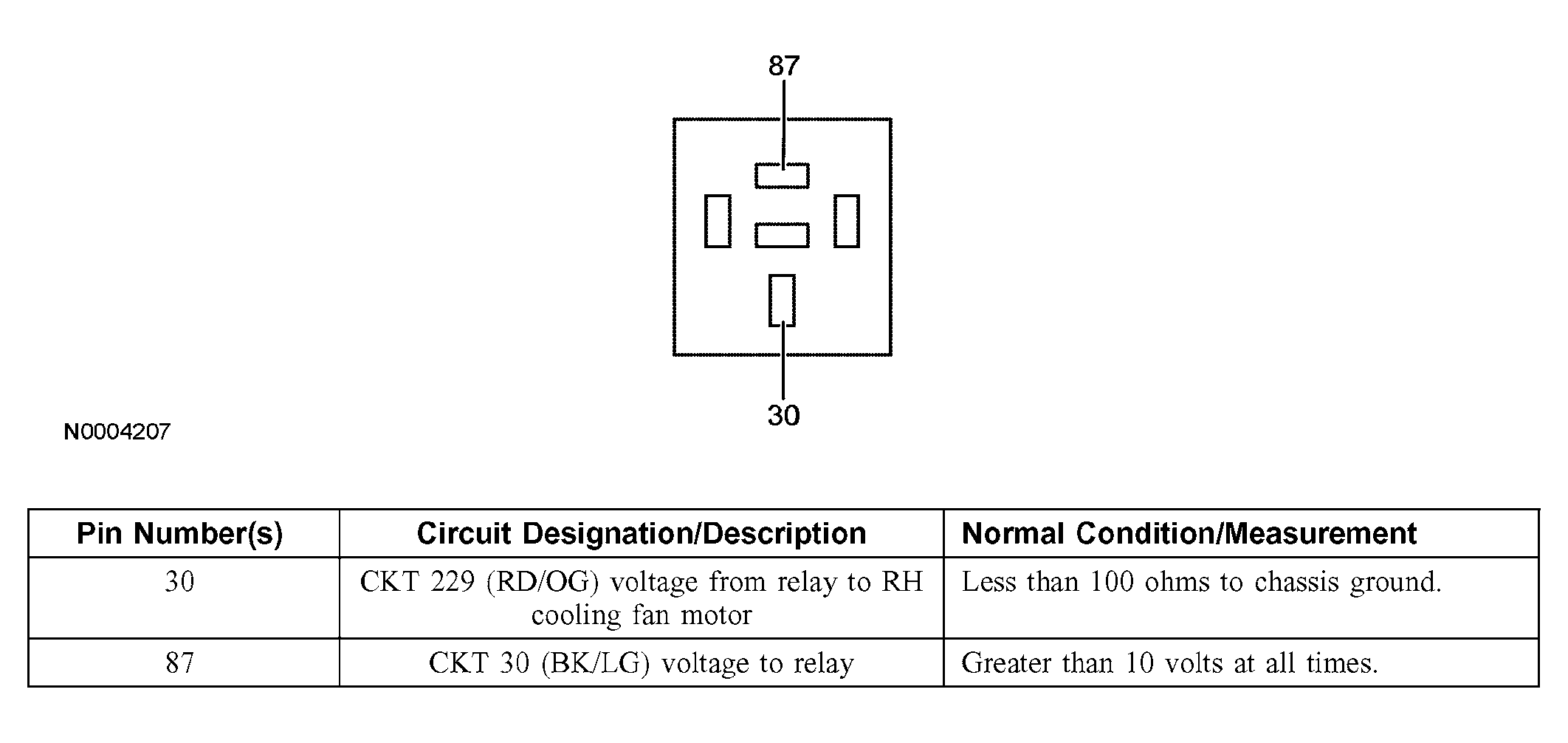

Fig 2: Identifying Low Speed Cooling Fan Relay Pinout - 3.0L
G03900314Courtesy of FORD MOTOR CO.

Cooling Fan Relay - 2.3L

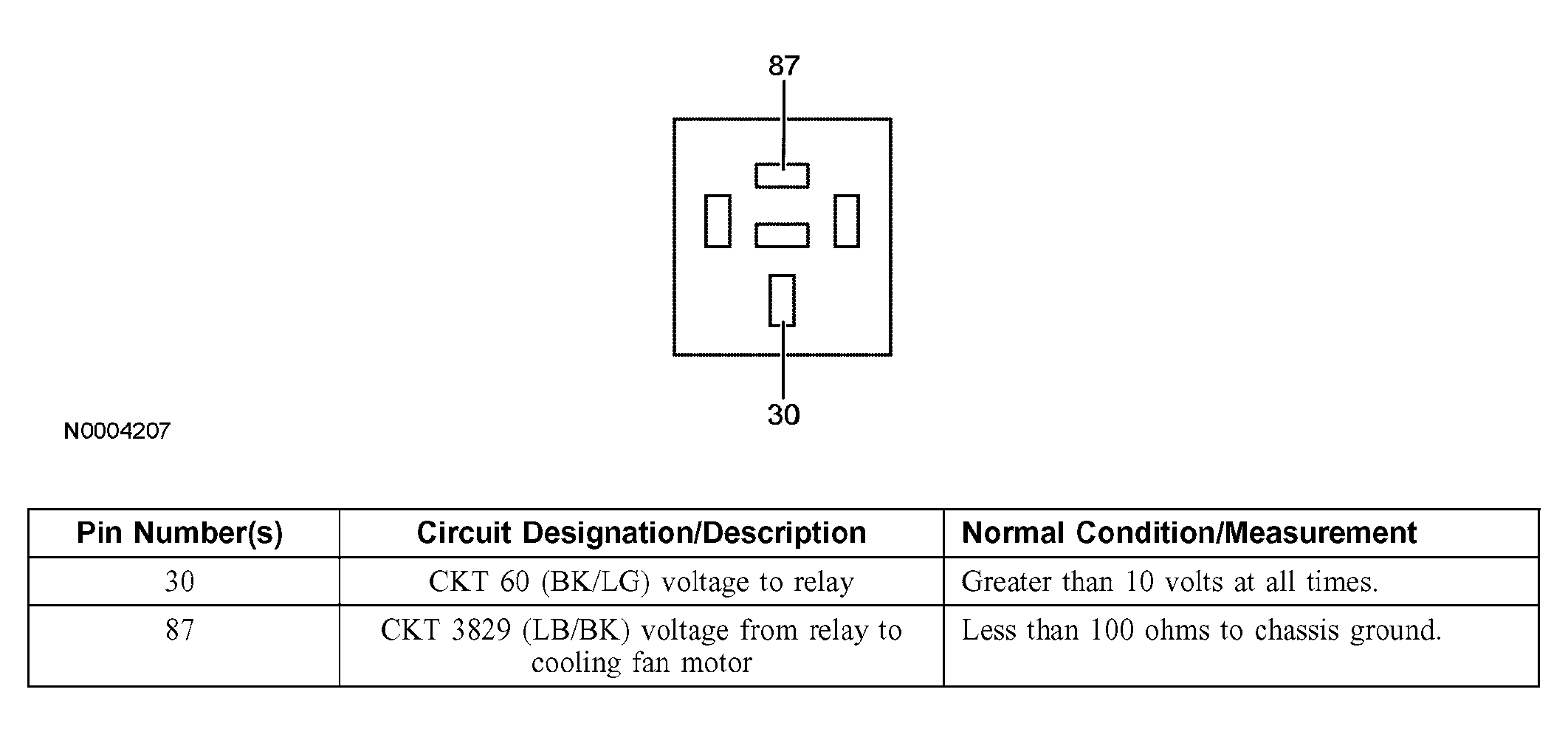

Fig 3: Identifying Cooling Fan Relay Pinout - 2.3L
G03900315Courtesy of FORD MOTOR CO.

High Speed Cooling Fan Relay - 2.3L

Fig 4: Identifying High Speed Cooling Fan Relay Pinout - 2.3L
G03900316Courtesy of FORD MOTOR CO.

High Speed Cooling Fan Relay 1 - 3.0L

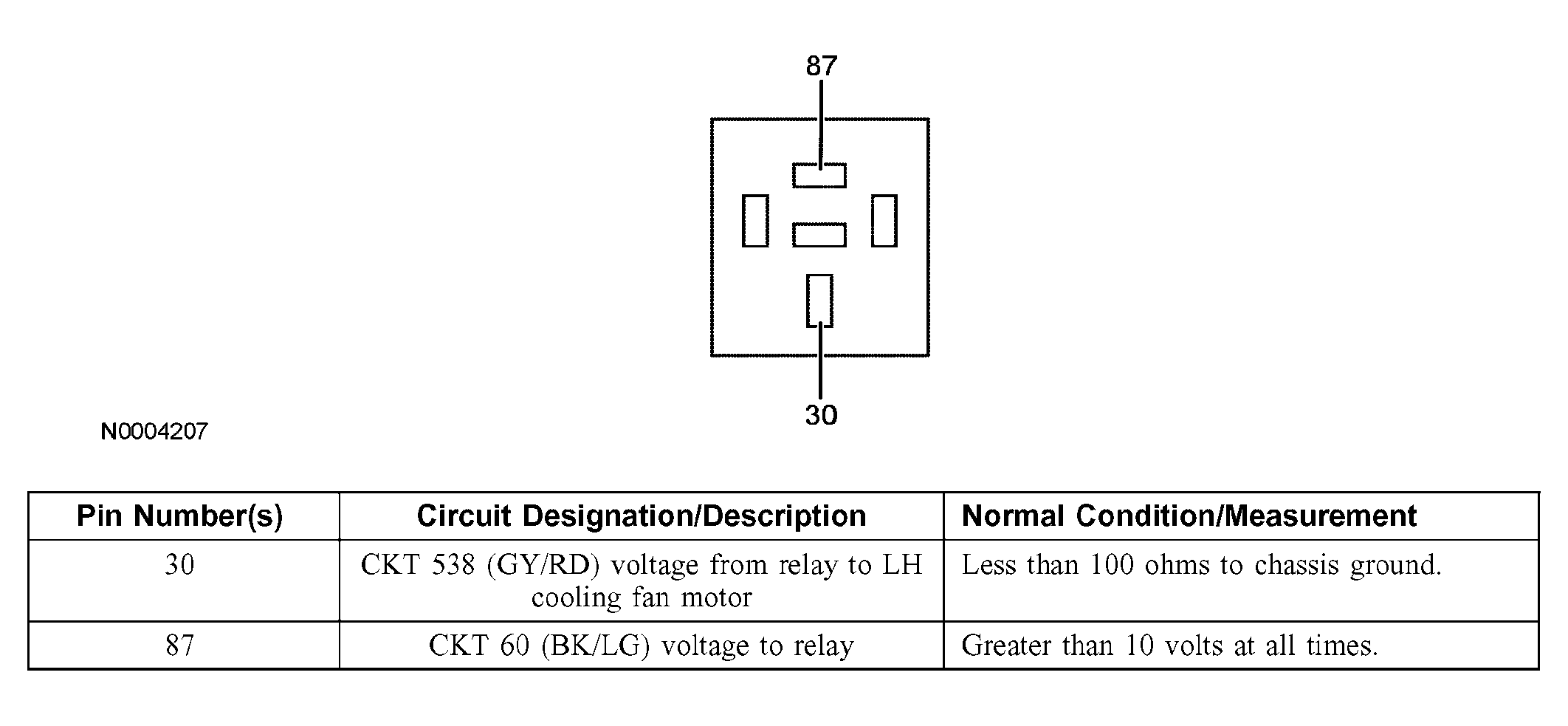

Fig 5: Identifying High Speed Cooling Fan Relay 1 Pinout - 3.0L
G03900317Courtesy of FORD MOTOR CO.

High Speed Cooling Fan Relay 2 - 3.0L

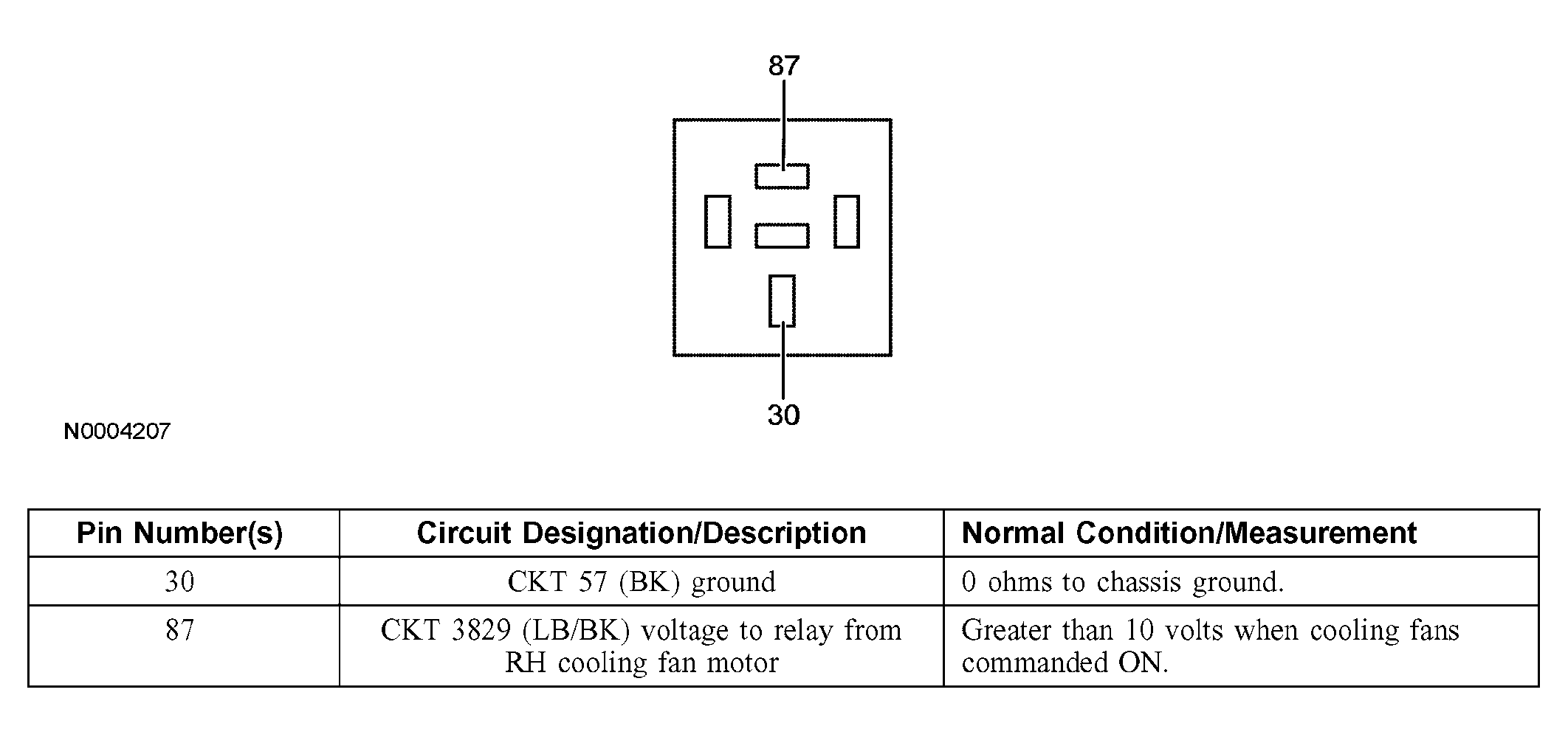

Fig 6: Identifying High Speed Cooling Fan Relay 2 Pinout - 3.0L
G03900318Courtesy of FORD MOTOR CO.

RH Cooling Fan Motor - 2.3L

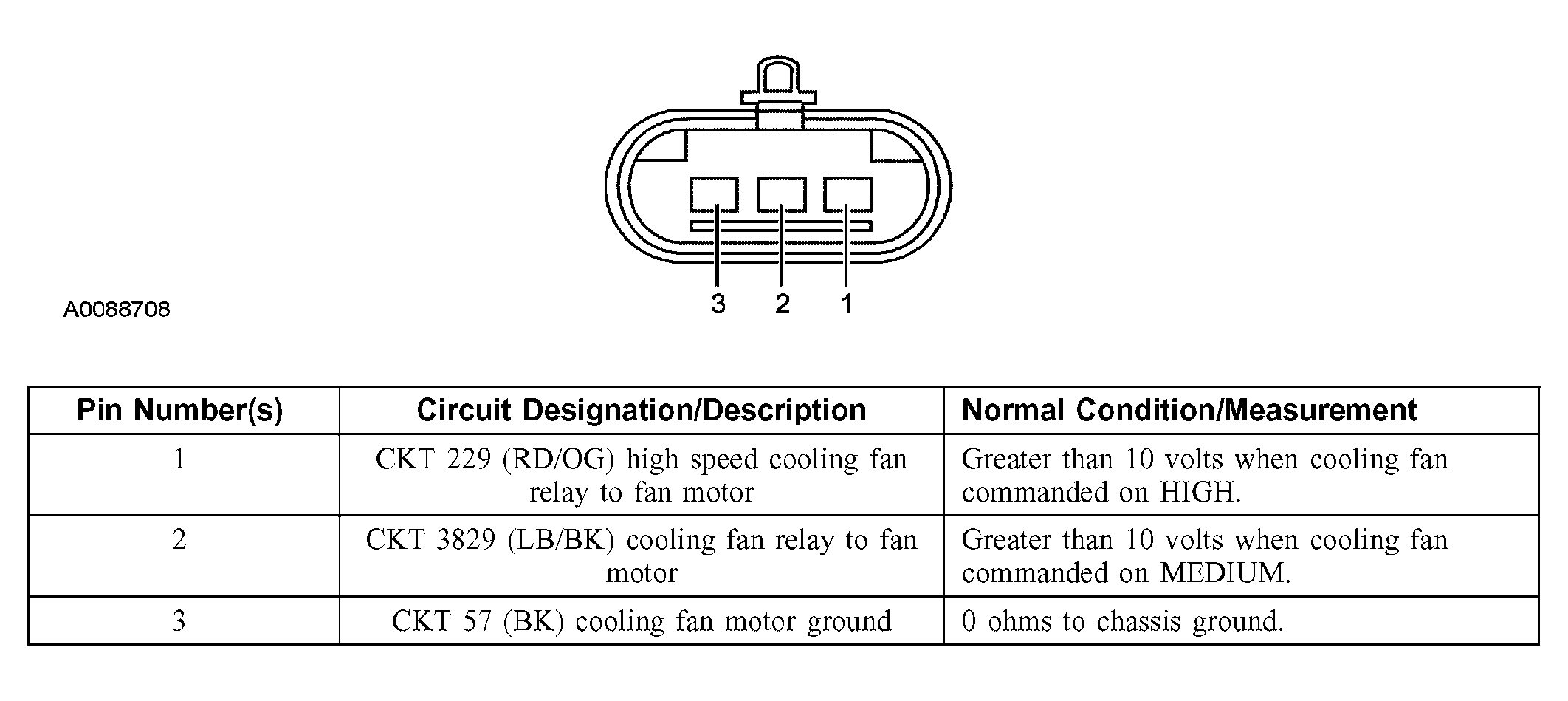

Fig 7: Identifying RH Cooling Fan Motor Pinout - 2.3L
G03900319Courtesy of FORD MOTOR CO.

LH Cooling Fan Motor - 2.3L

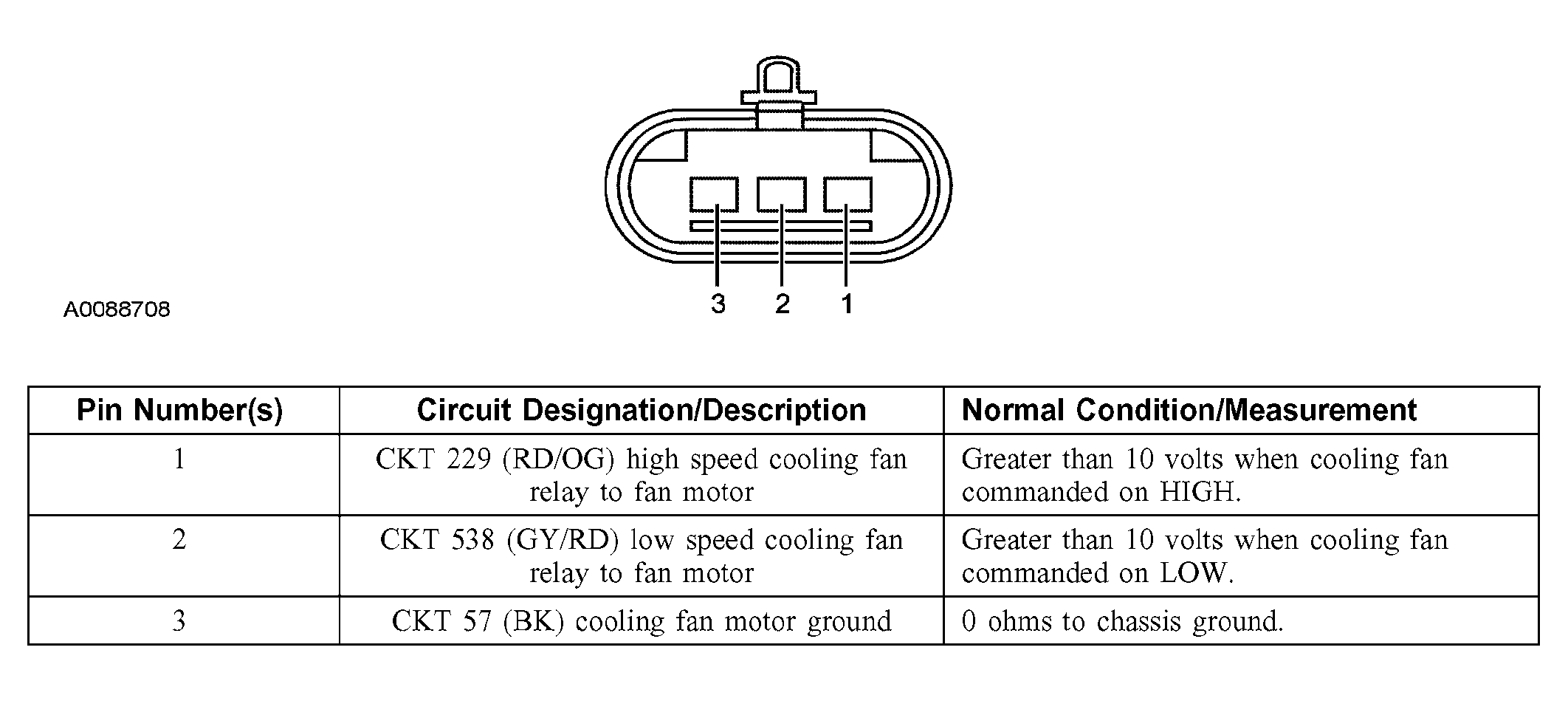

Fig 8: Identifying LH Cooling Fan Motor Pinout - 2.3L
G03900320Courtesy of FORD MOTOR CO.

RH Cooling Fan Motor - 3.0L

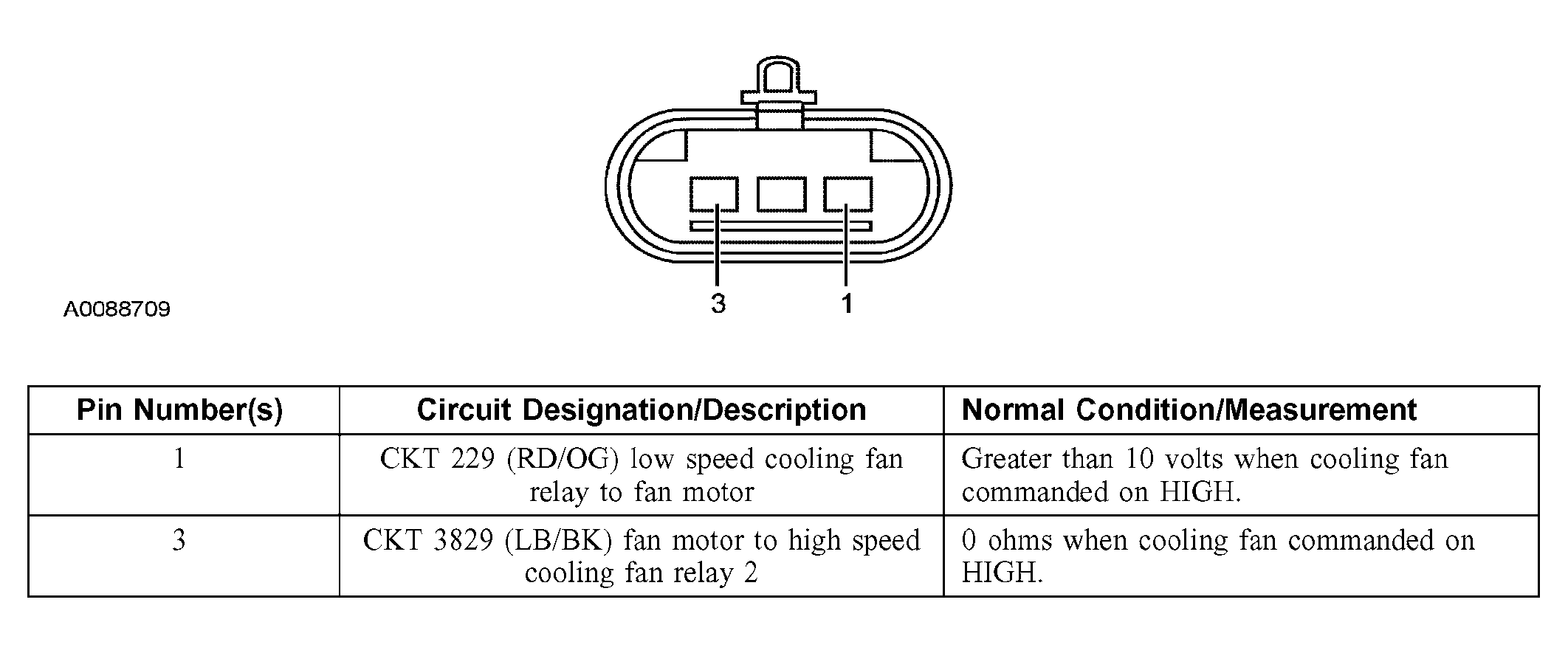

Fig 9: Identifying RH Cooling Fan Motor Pinout - 3.0L
G03900321Courtesy of FORD MOTOR CO.

LH Cooling Fan Motor - 3.0L

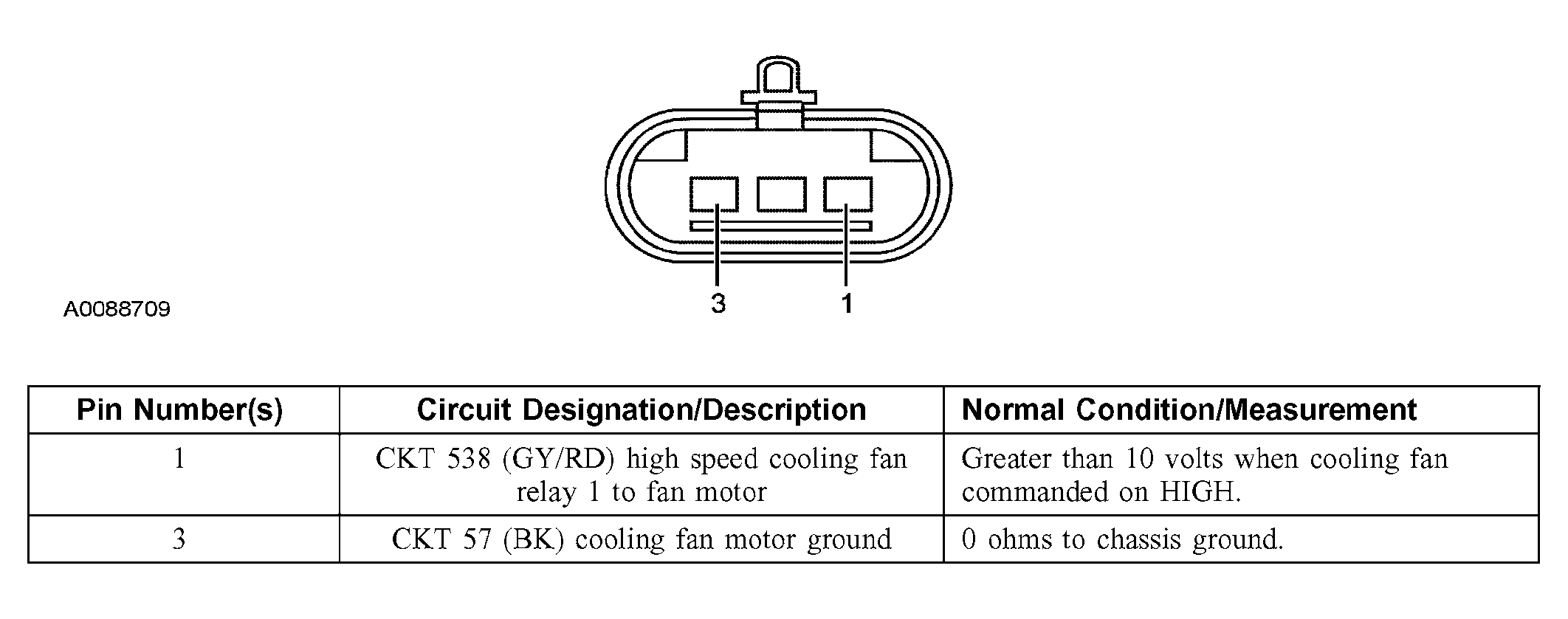

Fig 10: Identifying LH Cooling Fan Motor Pinout - 3.0L
G03900322Courtesy of FORD MOTOR CO.
