Smart Junction Box (SJB)

NOTE: Smart junction box is located below center of dash. See Figure.

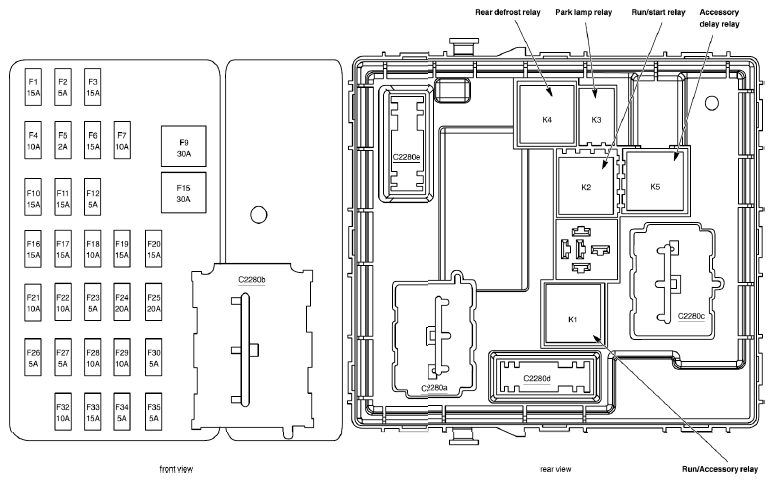

Fig 1: Smart Junction Box Components, Fuses And Relays
G05909170Courtesy of FORD MOTOR CO.
SMART JUNCTION BOX RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
K4 Rear defrost relay
K3 Park lamp relay
K2 Run/start Relay
K5 Accessory delay relay
K1 Run/Accessory Relay
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND

Fuse/Relay Location Fuse Amp Rating Battery Junction Box Description
1 15A(1) not used
2 5A(1) not used
3 15A(1) Front and rear park lamps
4 10A(1) Accessory delay relay, Ignition switch (11572)
5 2A(1) PCM power relay, Powertrain Control Module (PCM) (12A650), Passive anti-theft transceiver
6 15A(1) Brake pedal position switch (13480), Deactivator switch
7 10A(1) Exterior rear view mirror switch (17B676), Data Link Connector (DLC) (14489), Instrument cluster, Audio unit (18808), CD changer (18D806), Audio Visual Navigation (AVN) module (10E887)
8 - not used
9 30A(2) Power Door Locks, Power seat switch
10 15A(1) Rear window defrost switch (18C621) indicator
11 15A(1) not used
12 5A(1) Audio unit (18808), Audio Visual Navigation (AVN) module (10E887), MS-CAN/ACP gateway module
13 - not used
14 - not used
15 30A(2) Power window switches
16 15A(1) Subwoofer amplifier (18C804)
17 15A(1) Low beams
18 10A(1) Intelligent Torque Control Coupling (ITCC) module
19 15A(1) not used
20 15A(1) Horn (13832)
21 10A(1) Rear window washer pump motor, Rear wiper motor assembly
22 10A(1) Instrument cluster
23 5A(1) not used
24 20A(1) Cigar lighter, front (15055)
25 20A(1) Wiper/washer switch, Windshield wiper motor (17508)
26 5A(1) Function selector switch assembly (19B888)
27 5A(1) Injector relay, Traction battery control module, Battery zone valve
28 10A(1) Instrument cluster
29 10A(1) Reversing lamps, Audio Visual Navigation (AVN) module (10E887)
30 5A(1) not used
31 - not used
32 10A(1) not used
33 15A(1) Occupant Classification Sensor (OCS), Restraints control module (14B321), Passenger Air bag Deactivation (PAD) indicator
34 5A(1) Power Steering Control Module (PSCM), ABS test connector, ABS control module (2C219)
35 5A(1) Intelligent Torque Control Coupling (ITCC) module, DC/AC inverter module
K1 - Run/Accessory relay
K2 - Run/start relay
K3 - Park lamp relay
K4 - Rear defrost relay
K5 - Accessory delay relay
(1)
Mini fuse
(2)
Cartridge fuse
