Blower Motor Relay

NOTE: Blower motor relay is located behind lower left center of dash. See Fig 1.

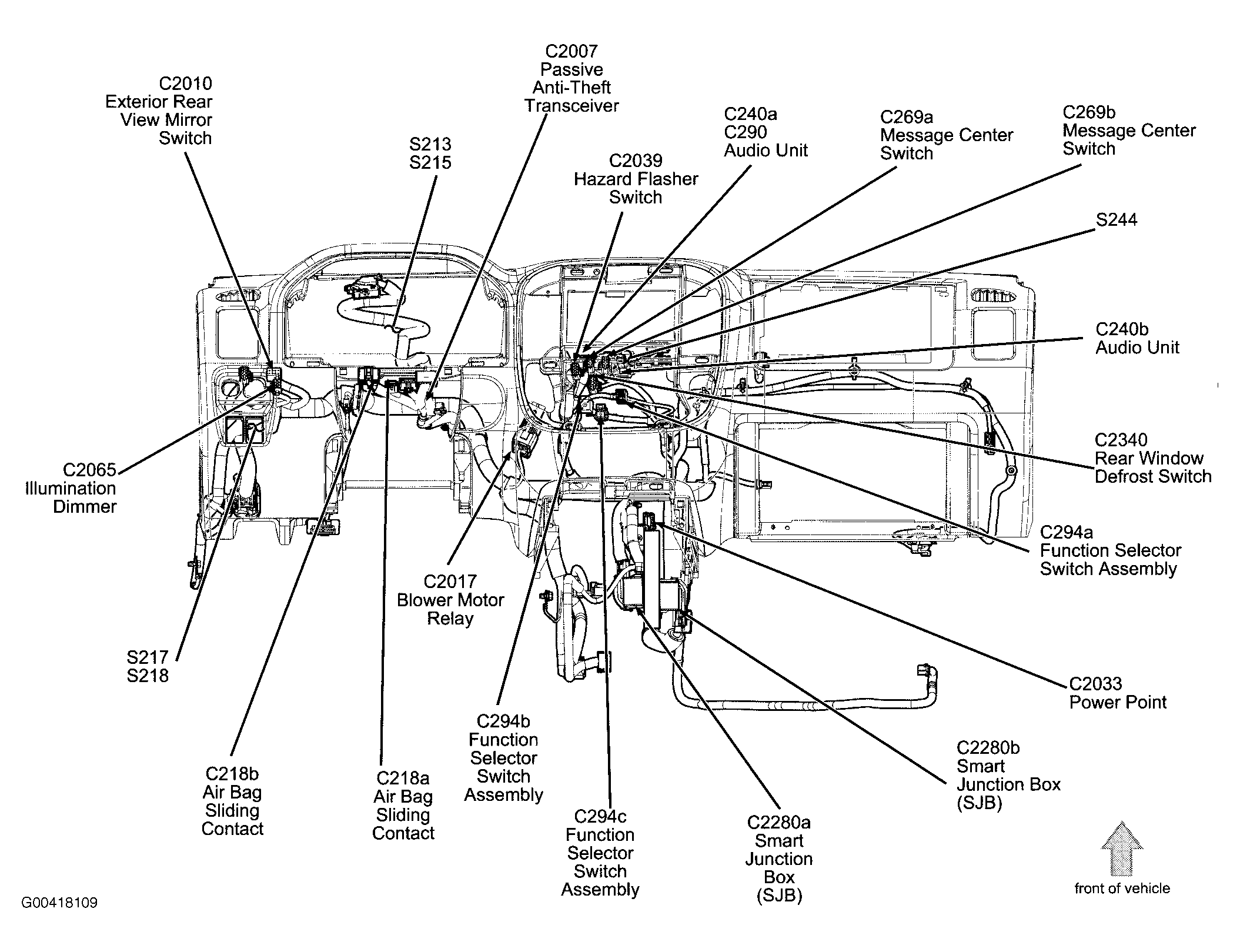

Fig 1: Front Of Dash Components And Relays

Courtesy of FORD MOTOR CO.

FRONT OF DASH RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C2017	Blower Motor Relay
