Auxiliary Relay Box 1
NOTE:

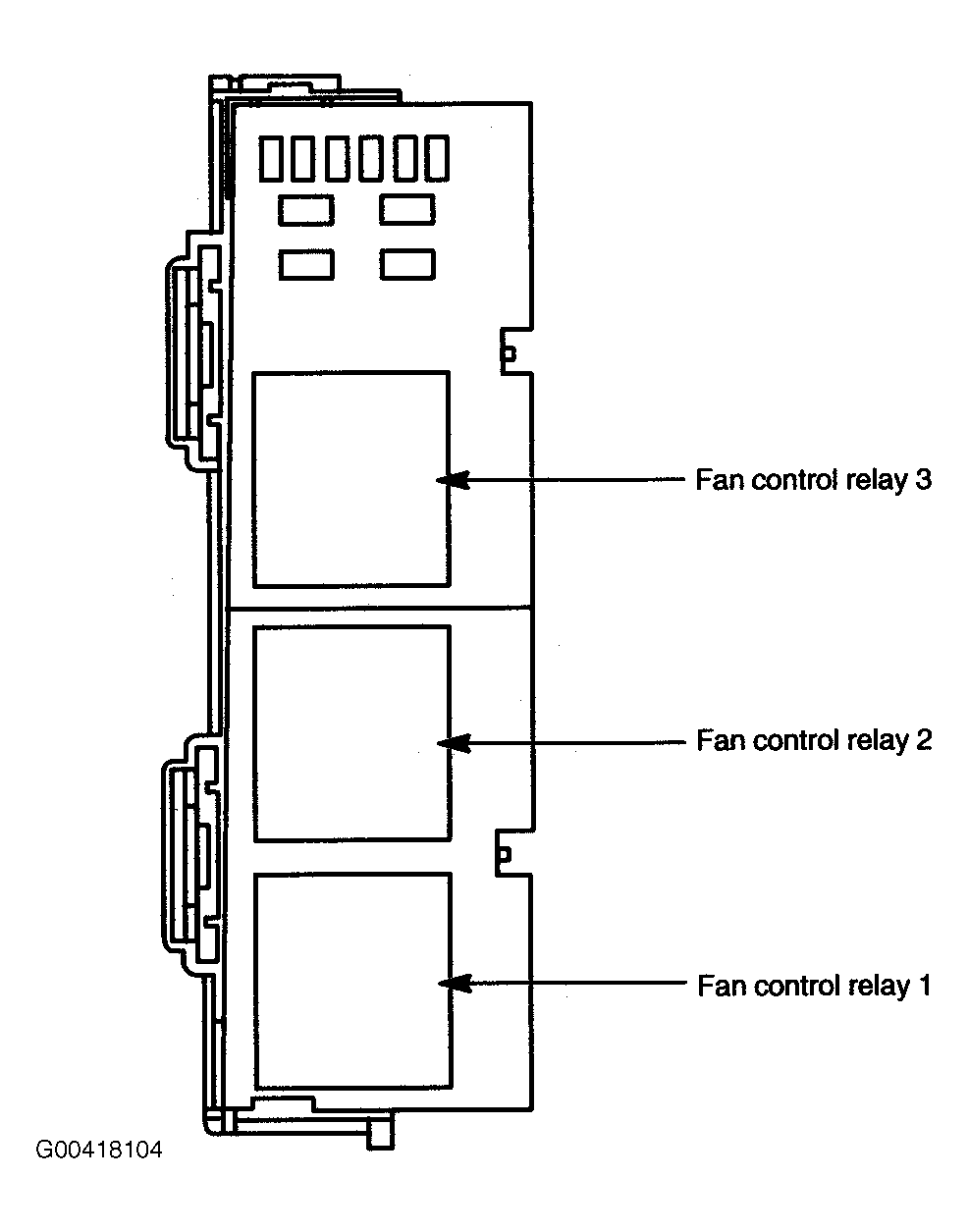

Auxiliary relay box 1 is located in Front of engine compartment. See Fig 1.
AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fan control relay 3 |
| Fan control relay 2 |
| Fan control relay 1 |
