Section 9 (Engine Cooling - (Hybrid))
>>
Removal And Installation
>>
Thermostat Housing
>>
Notes
Thermostat Housing: Notes
WARNING:
This page is about a different variant/trim than selected.

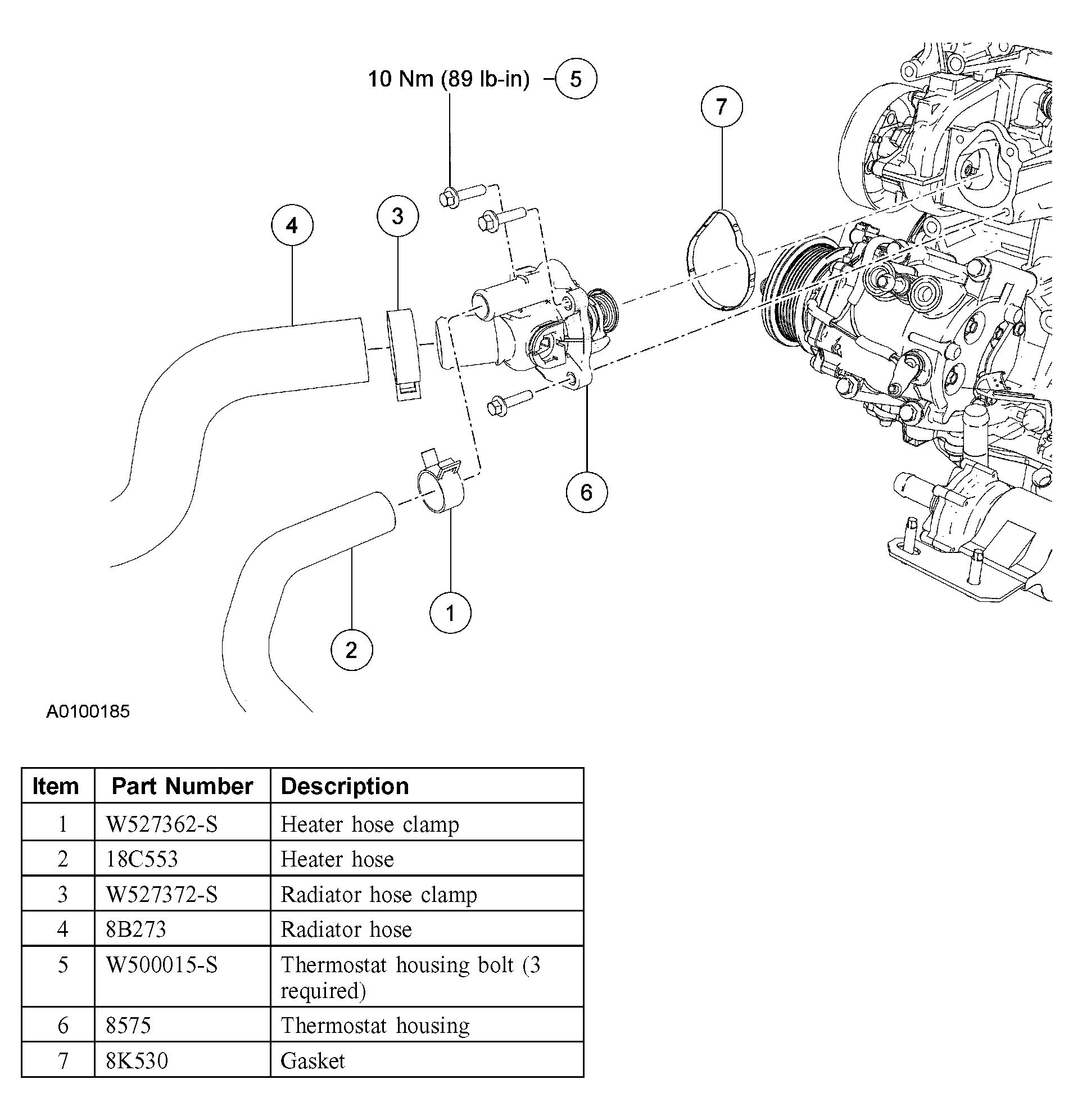

Fig 1: Removing Thermostat Housing With Torque Specifications
Courtesy of FORD MOTOR CO.
