Cooling Fan Motor and Shroud: Notes

WARNING: This page is about a different variant/trim than selected.

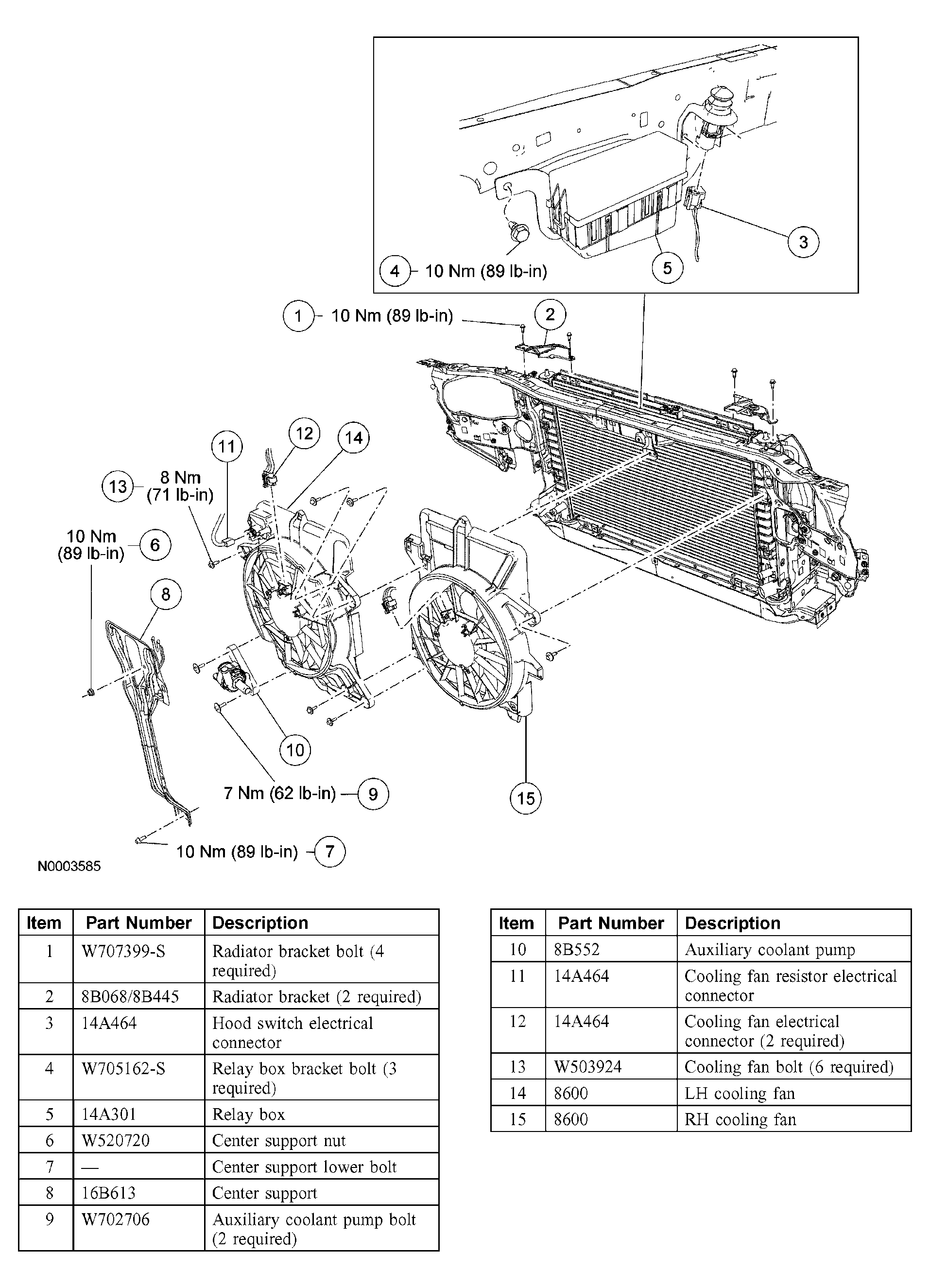

Fig 1: Removing Cooling Fan Motor And Shroud With Torque Specifications
G03900371Courtesy of FORD MOTOR CO.
