Connector Circuit Reference

WARNING: This page is about a different variant/trim than selected.

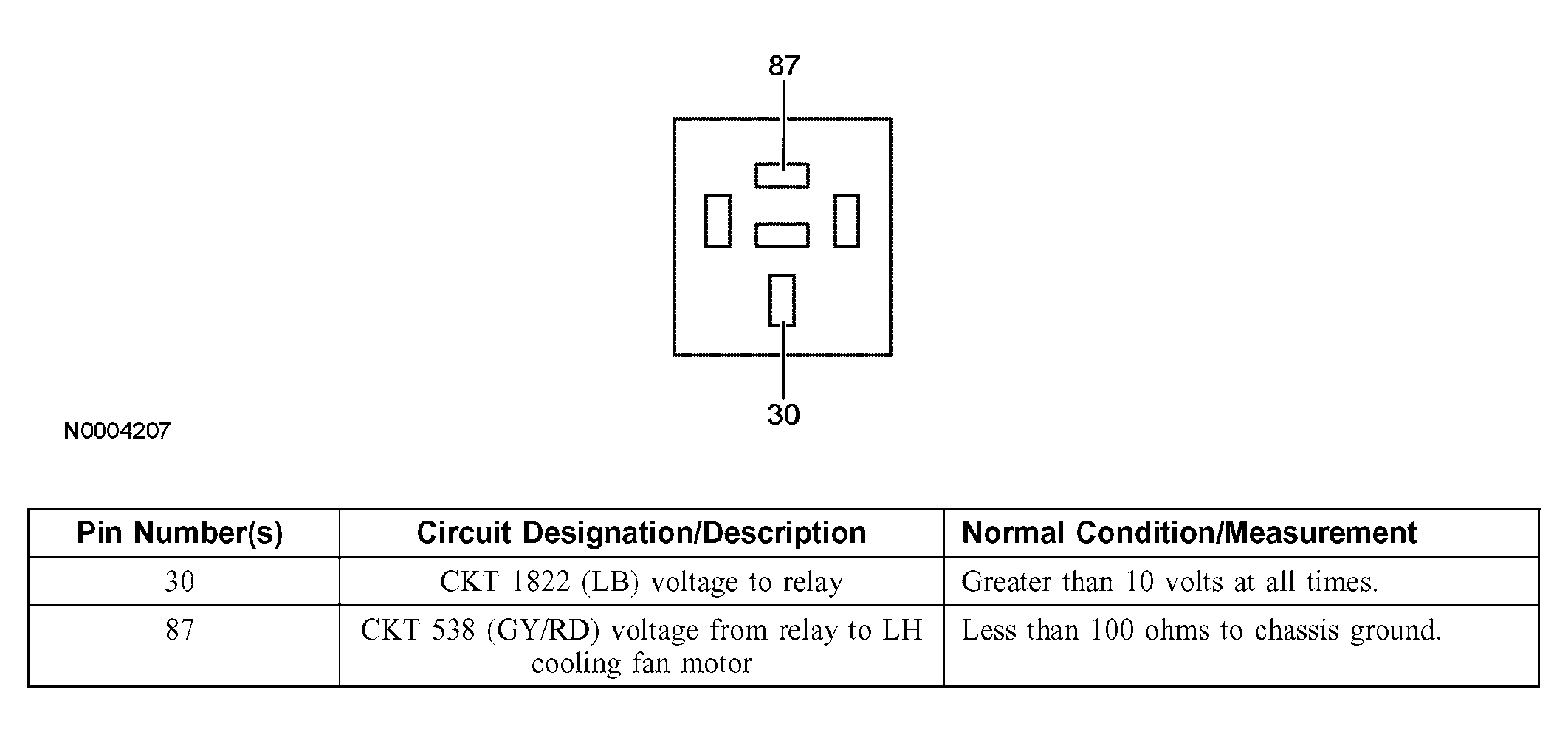

Low Speed Cooling Fan Relay

Fig 1: Identifying Low Speed Cooling Fan Relay Pinout
G03900354Courtesy of FORD MOTOR CO.

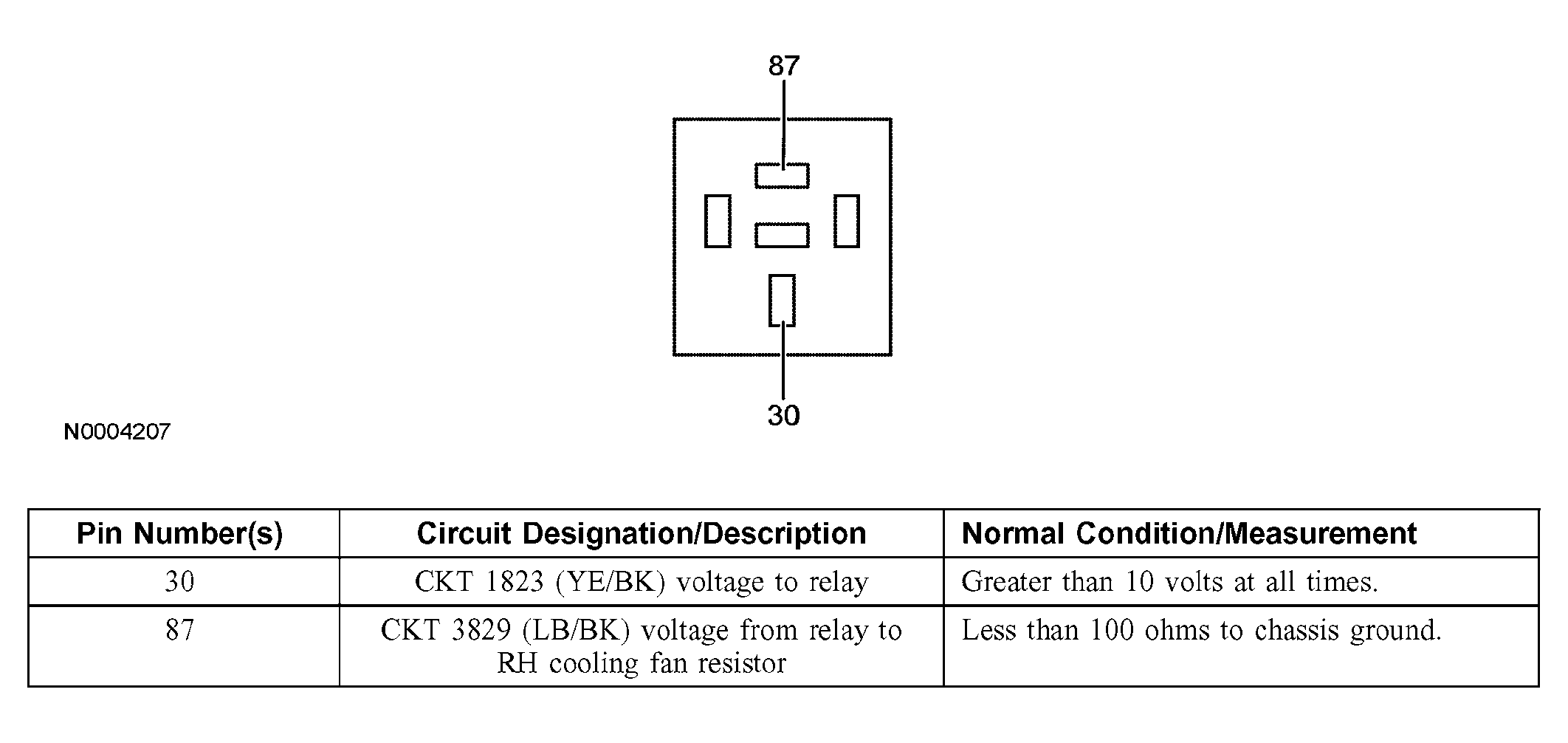

Medium Speed Cooling Fan Relay

Fig 2: Identifying Medium Speed Cooling Fan Relay Pinout
G03900355Courtesy of FORD MOTOR CO.

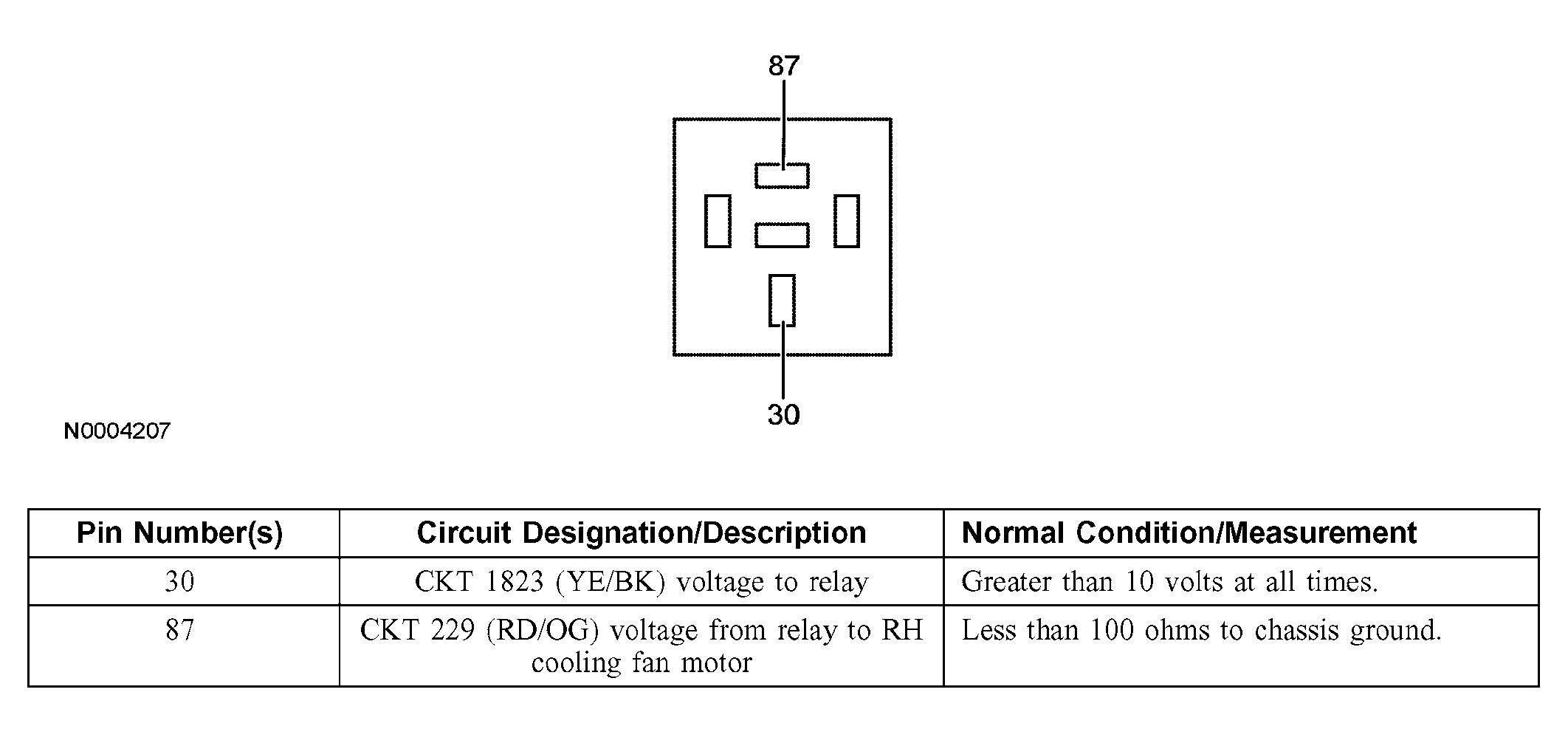

High Speed Cooling Fan Relay

Fig 3: Identifying High Speed Cooling Fan Relay Pinout
G03900356Courtesy of FORD MOTOR CO.

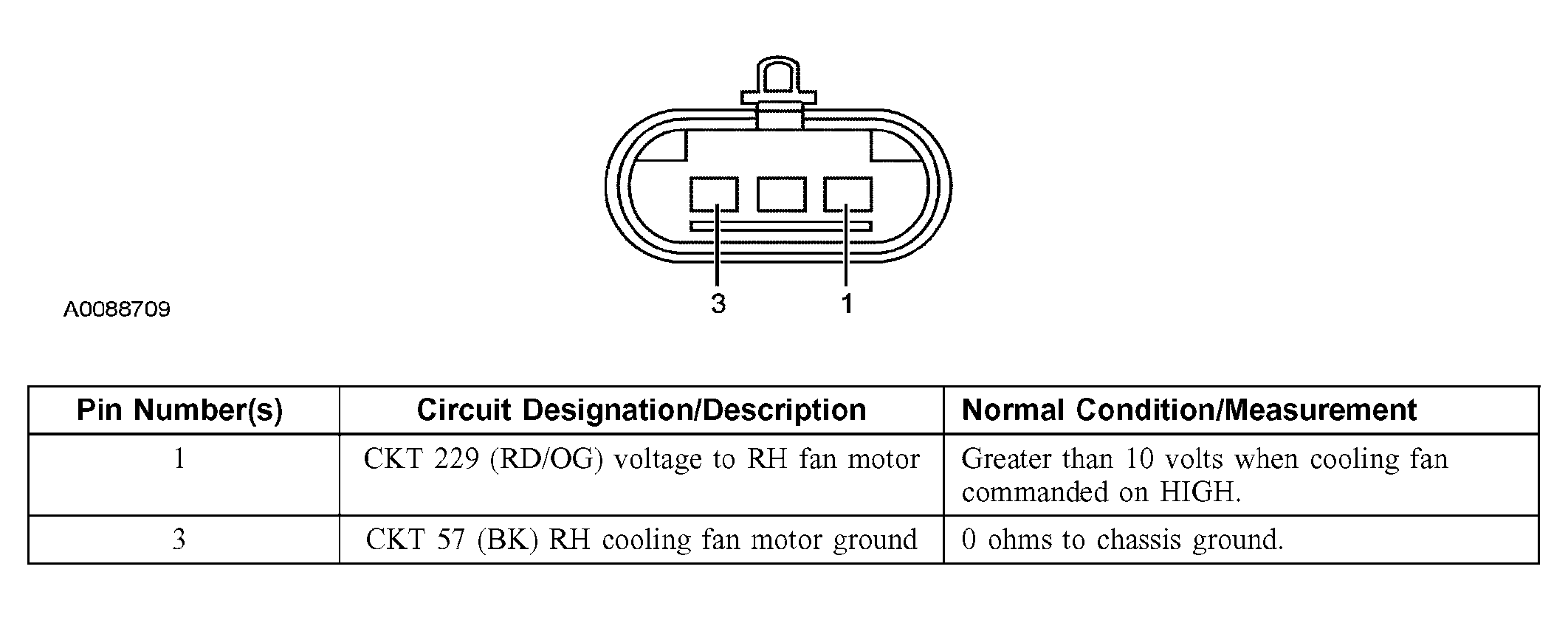

RH Cooling Fan Motor

Fig 4: Identifying RH Cooling Fan Motor Pinout
G03900357Courtesy of FORD MOTOR CO.

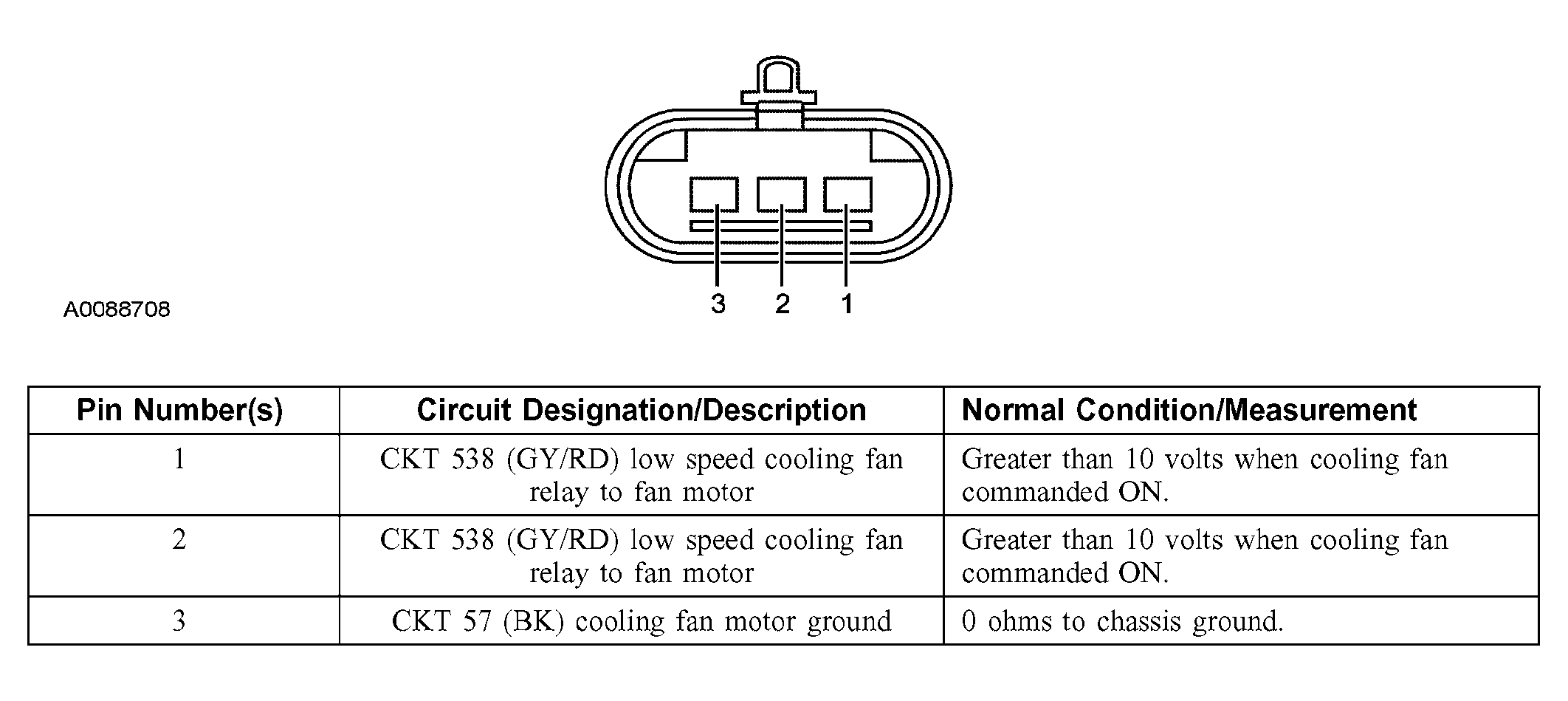

LH Cooling Fan Motor

Fig 5: Identifying LH Cooling Fan Motor Pinout
G03900358Courtesy of FORD MOTOR CO.

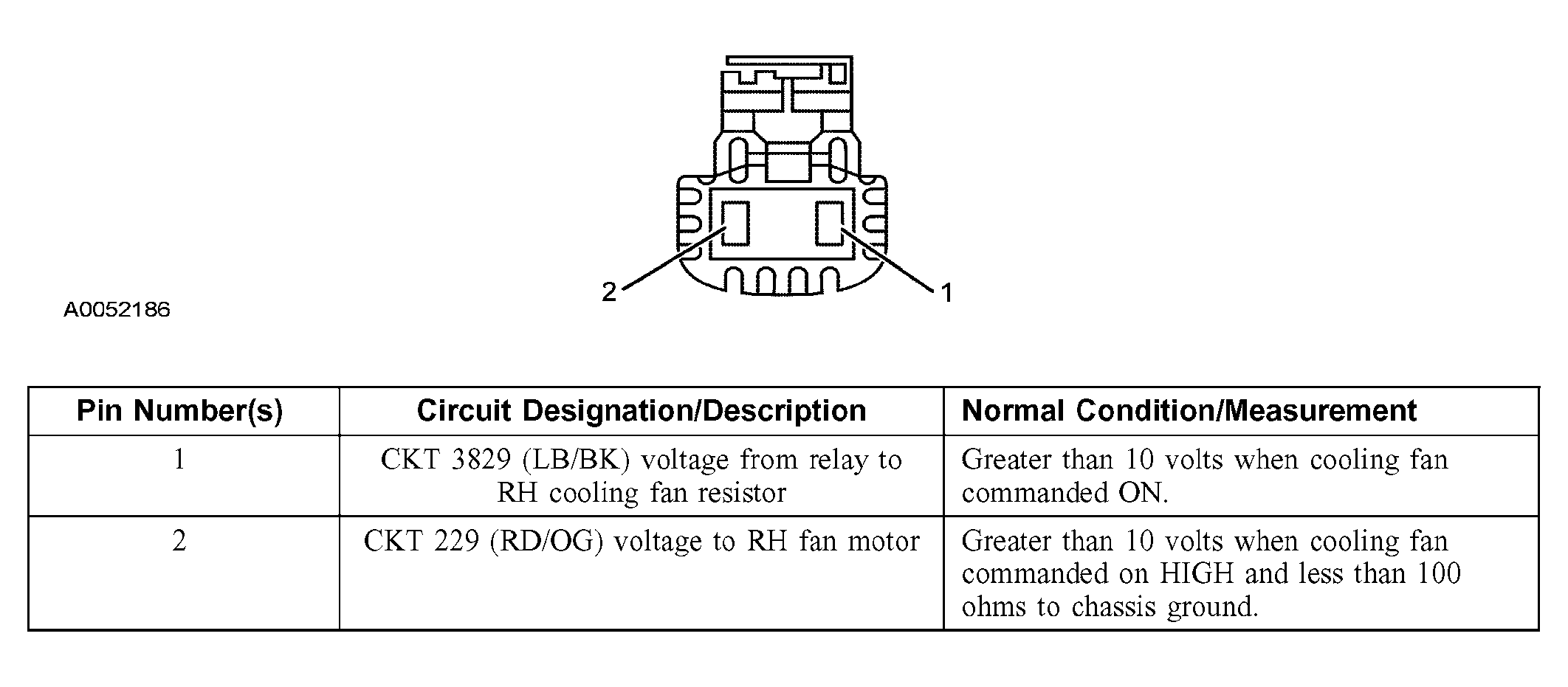

RH Cooling Fan Resistor

Fig 6: Identifying RH Cooling Fan Resistor Pinout
G03900359Courtesy of FORD MOTOR CO.
