Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION

G03897406
 Front Hub Remover 205-D070 (D93P-1175-B) or equivalent
G03900798
 CV Joint Puller 205-241 (T86P-3514-A)
G03901300
 Halfshaft Installer 204-161 (T97P-1175-A)
G03897381
 Axle Seal Protector 205-816

Halfshaft

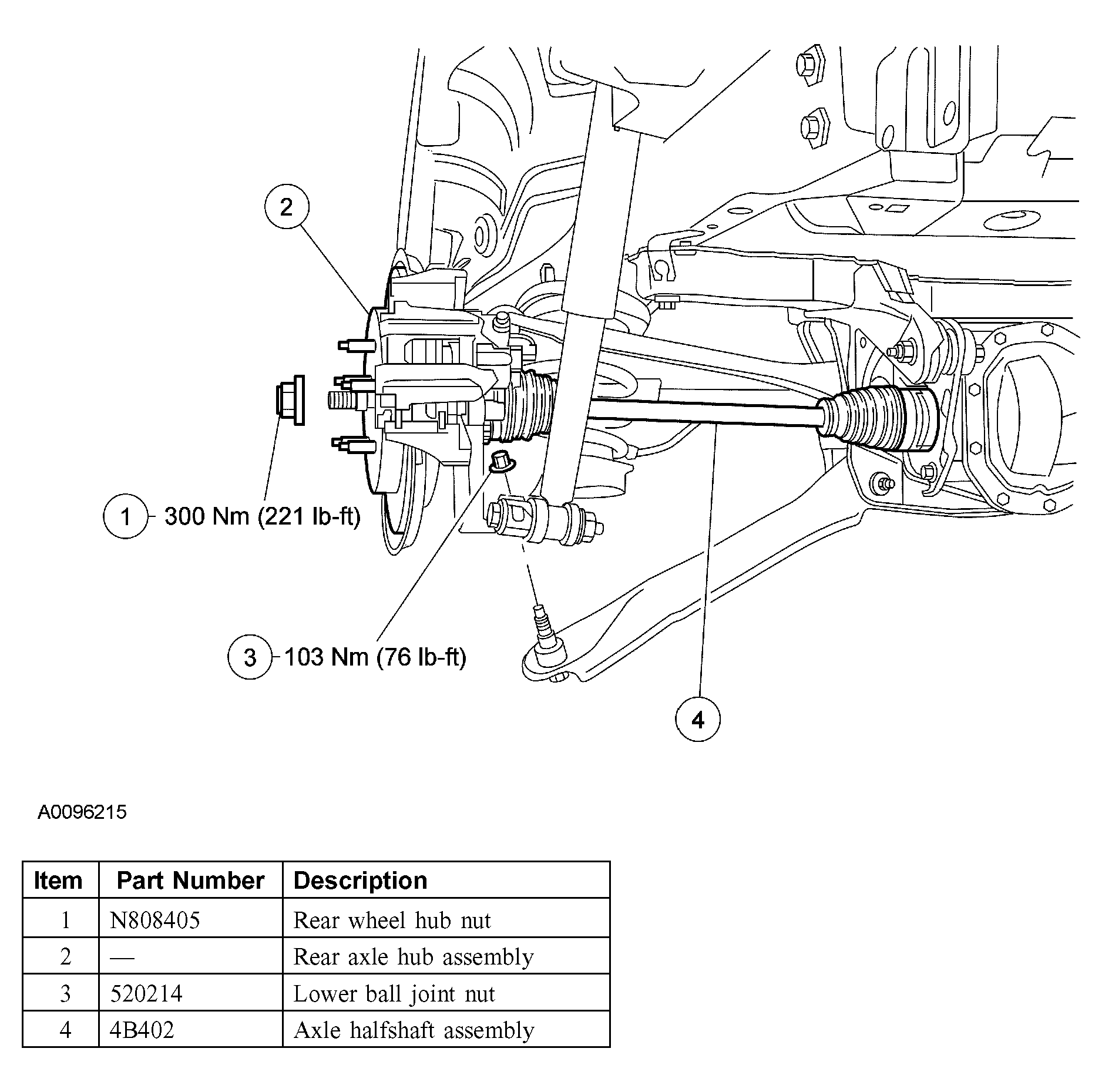

Fig 1: Halfshaft Replacement Components With Torque Specifications
G03897410Courtesy of FORD MOTOR CO.
