Removal And Installation: Halfshaft: Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Make sure that the oil seal protector is properly aligned with the differential oil seal during installation.

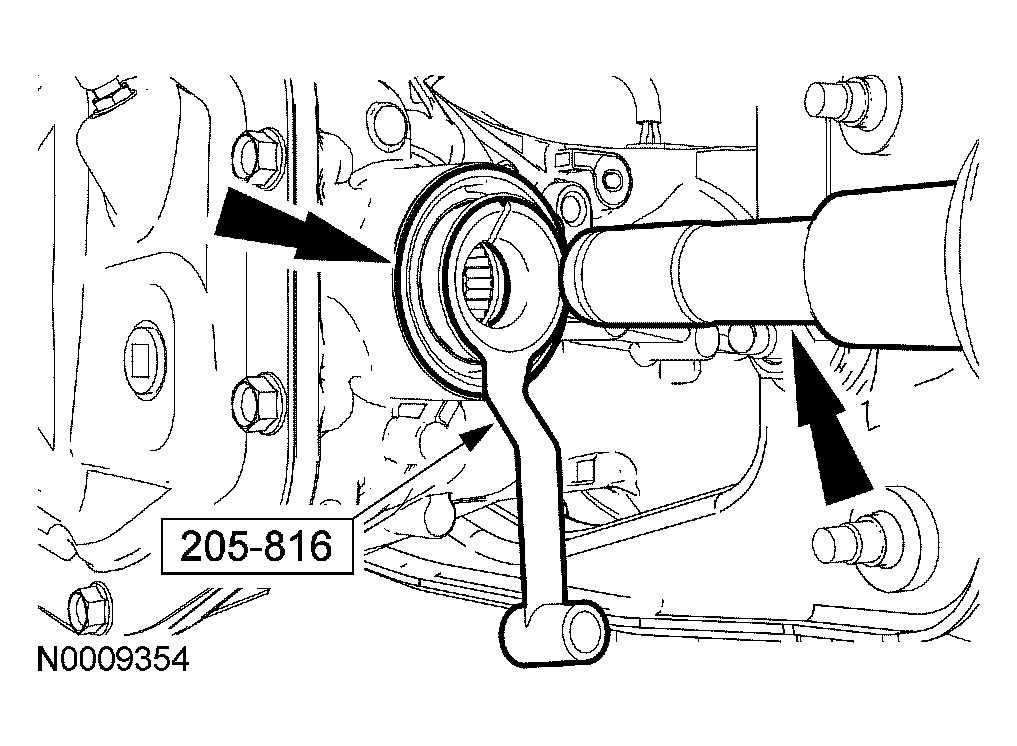

    Fig 1: Installing Halfshaft Into Differential
    G03897413Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the halfshaft into the differential.
  2. If the axle is equipped with the oil seal protector, make sure the oil seal lip and seal protector are correctly aligned.
    Fig 2: Aligning Oil Seal Lip And Seal Protector
    G03897414Courtesy of FORD MOTOR CO.
  3. Using the special tool, install the outer halfshaft end into the hub assembly.
    Fig 3: Installing Outer Halfshaft End Into Hub Assembly
    G03897415Courtesy of FORD MOTOR CO.
  4. Position the lower ball joint and install the lower ball joint nut.
    • To install, tighten to 103 Nm (76 lb-ft).
  5. Install the rear wheel hub nut.
    • To install, tighten to 300 Nm (221 lb-ft).
  6. Install the rear coil spring. For additional information, refer to REAR SUSPENSION .
  7. Fill the axle with the specified quantity of the specified lubricant.
