Connector Circuit Reference

WARNING: This page is about a different variant/trim than selected.

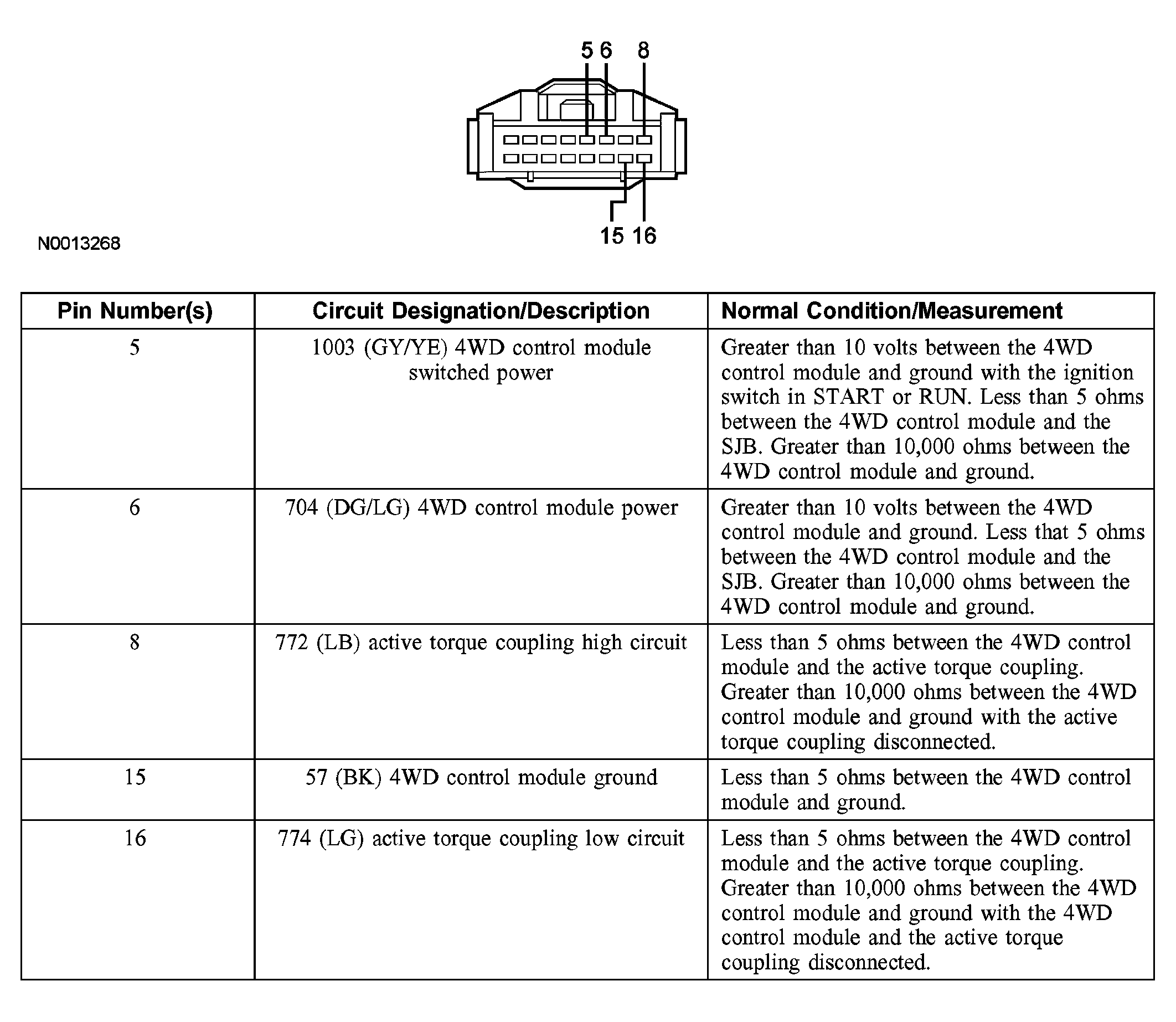

4WD Control Module C3253

Fig 1: Identifying 4WD Control Module C3253 Connector
G03901899Courtesy of FORD MOTOR CO.

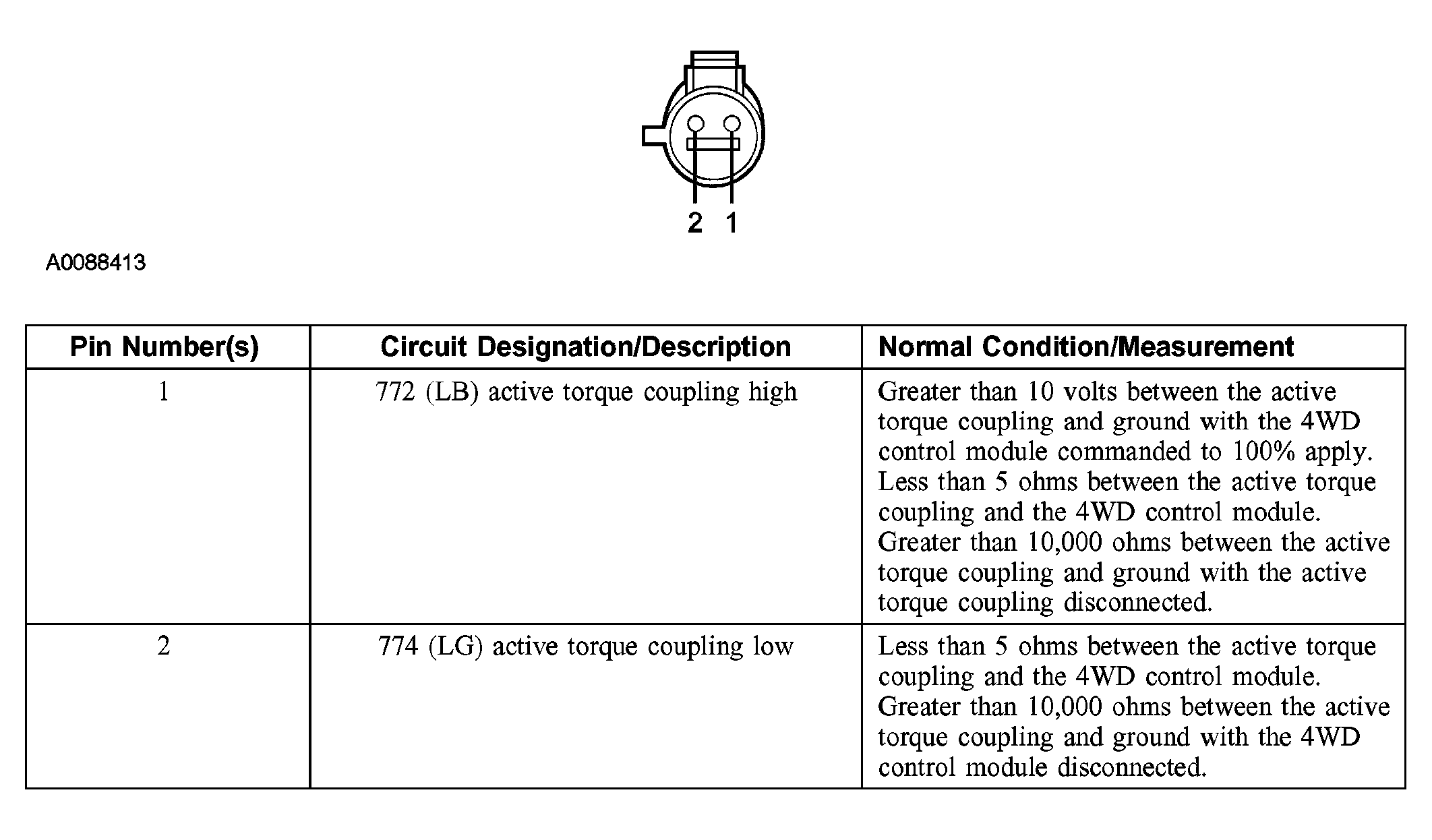

Active Torque Coupling C3254

Fig 2: Identifying Active Torque Coupling C3254 Connector
G03901900Courtesy of FORD MOTOR CO.
