Timing Drive Components: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
CAUTION: The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if you loosen the pulley. Therefore, the engine must be retimed each time the damper is removed. Otherwise severe engine damage can occur.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE - HYBRID .
  3. Remove the valve cover. For additional information, refer to VALVE COVER .
  4. Remove the engine mount. For additional information, refer to ENGINE MOUNT .
    5. CAUTION: Failure to position the No. 1 piston at top dead center (TDC) can result in damage to the engine. Turn the engine in the normal direction of rotation only.
  5. Using the crankshaft pulley bolt, turn the crankshaft clockwise to position the No. 1 piston at TDC.
    • The hole in the crankshaft pulley should be in the 6 o'clock position.

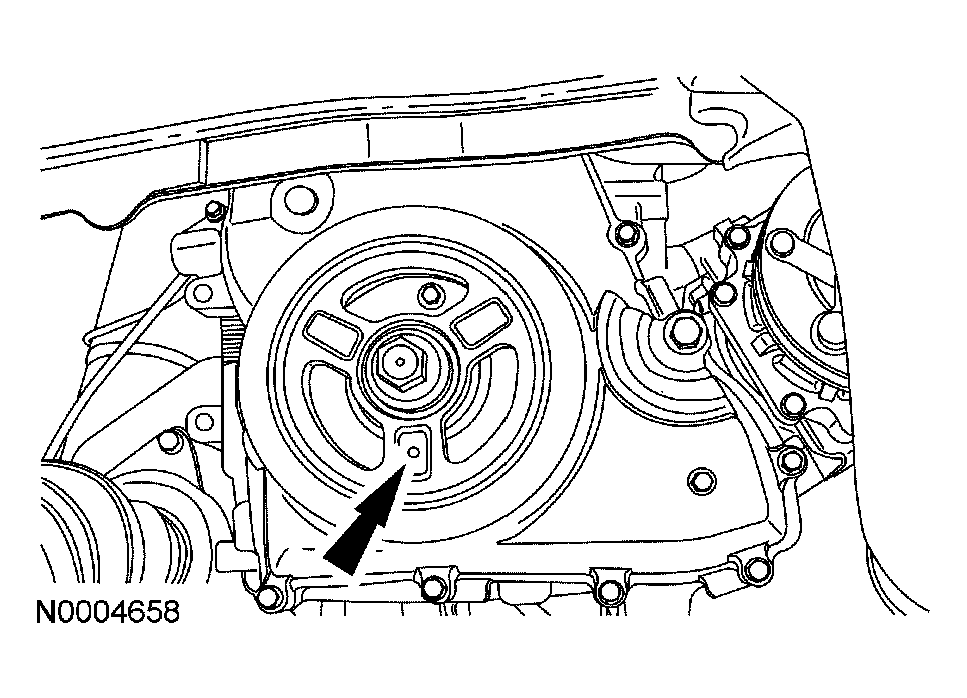

      Fig 1: Aligning Hole Crankshaft Pulley
      G03897734Courtesy of FORD MOTOR CO.
    6. CAUTION: The special tool 303 - 465 is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the special tool cannot be installed, rotate the crankshaft one complete revolution clockwise to correctly position the camshafts.
    Fig 2: Identifying Special Tool
    G03898006Courtesy of FORD MOTOR CO.
  6. Install the special tool in the slots on the rear of both camshafts.
  7. Remove the engine plug bolt.
    Fig 3: Locating Engine Plug Bolt
    G04319319Courtesy of FORD MOTOR CO.
    8. NOTE: The special tool will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position until the timing drive components and crankshaft pulley are installed.
    Fig 4: Installing Special Tool
    G03897737Courtesy of FORD MOTOR CO.
  8. Install the special tool.
  9. Install the special tools.

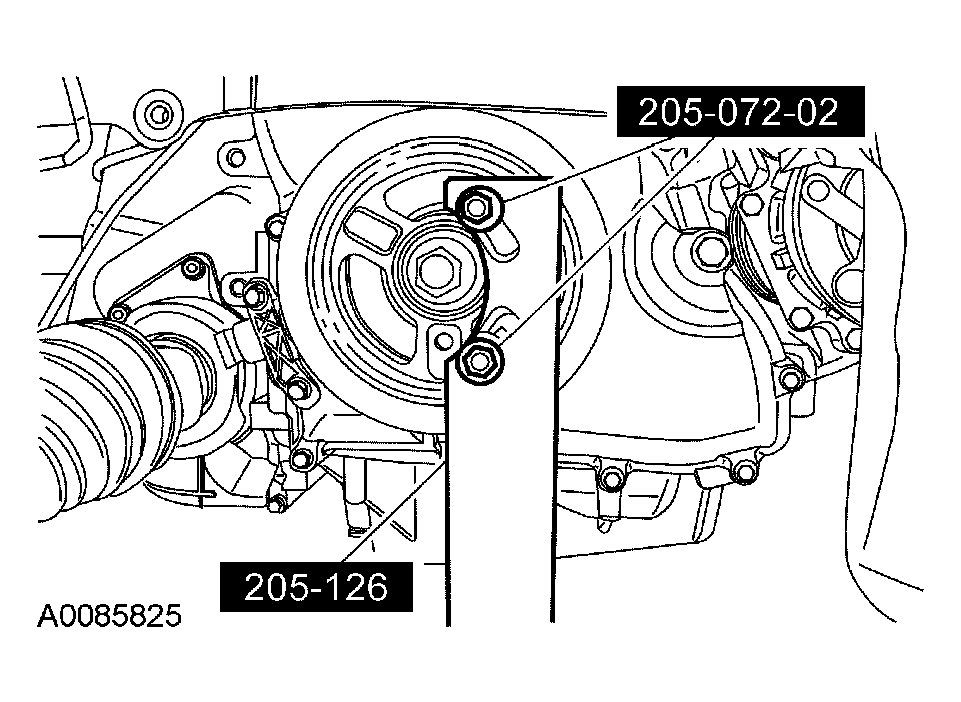

    Fig 5: Using Special Tool
    G03897702Courtesy of FORD MOTOR CO.
    10. CAUTION: Failure to hold the crankshaft pulley in place while loosening the bolt can result in damage to the engine.
    CAUTION: If the crankshaft sprocket diamond washer comes off with the crankshaft pulley it must be installed back onto the crankshaft.

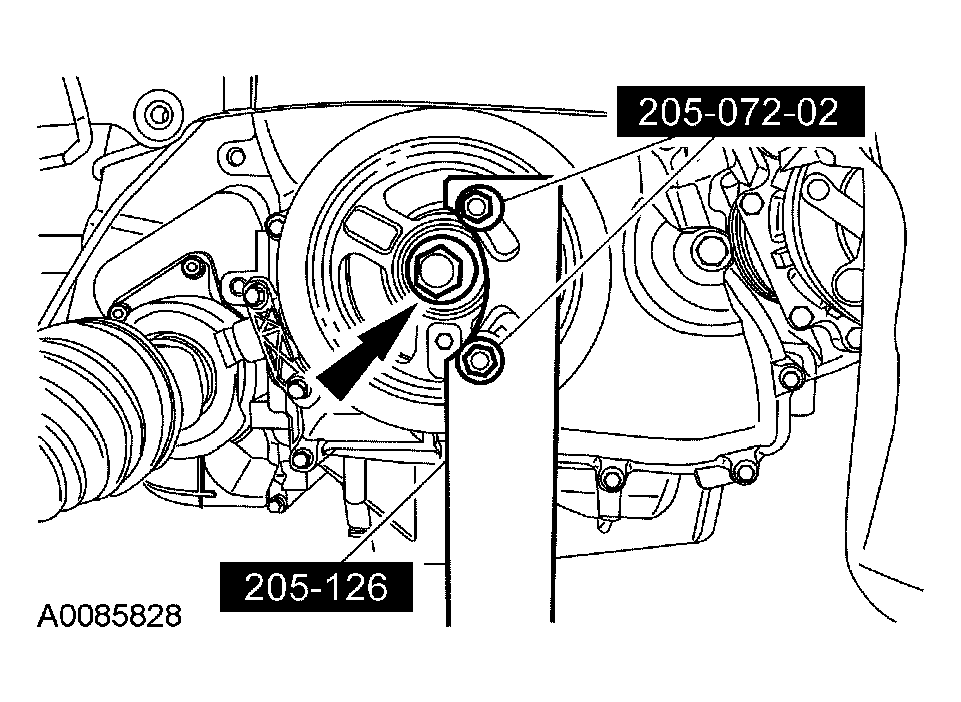

    Fig 6: Removing Crankshaft Pulley Bolt Using Special Tool
    G03897703Courtesy of FORD MOTOR CO.
  10. Remove the crankshaft pulley bolt, washer and crankshaft pulley.
    11. CAUTION: Use care not to damage the engine front cover or the crankshaft when removing the seal.

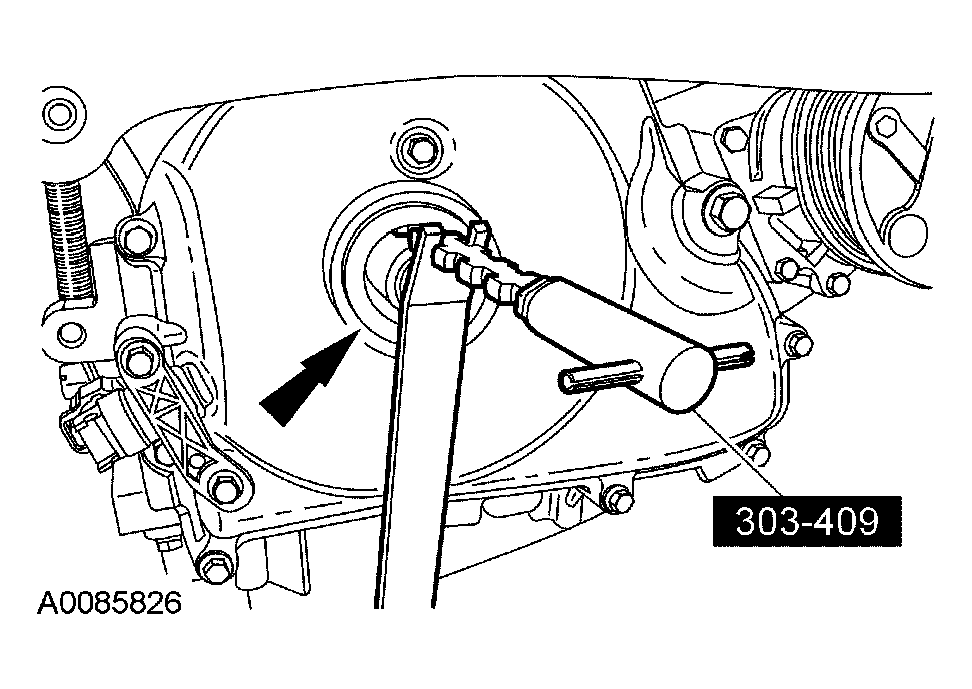

    Fig 7: Removing Crankshaft Front Oil Seal Using Special Tool
    G03897716Courtesy of FORD MOTOR CO.
  11. Using the special tool, remove the crankshaft front oil seal.
  12. Remove the 3 bolts and the coolant pump pulley.
  13. Remove the 3 bolts and the accessory drive belt tensioner.
  14. Disconnect the crankshaft position (CKP) sensor electrical connector.
    15. NOTE: Whenever the CKP sensor is removed, a new one must be installed, using the alignment jig supplied with the new part.
  15. Remove and discard the CKP sensor.
  16. Remove the bolts and the engine front cover.
    Fig 8: Removing Engine Front Cover Bolts
    G03897743Courtesy of FORD MOTOR CO.
  17. Remove the timing chain tensioner.
    1. Compress the timing chain tensioner, and insert a paper clip into the hole to retain the tensioner.
    2. Remove the bolts and timing chain tensioner.

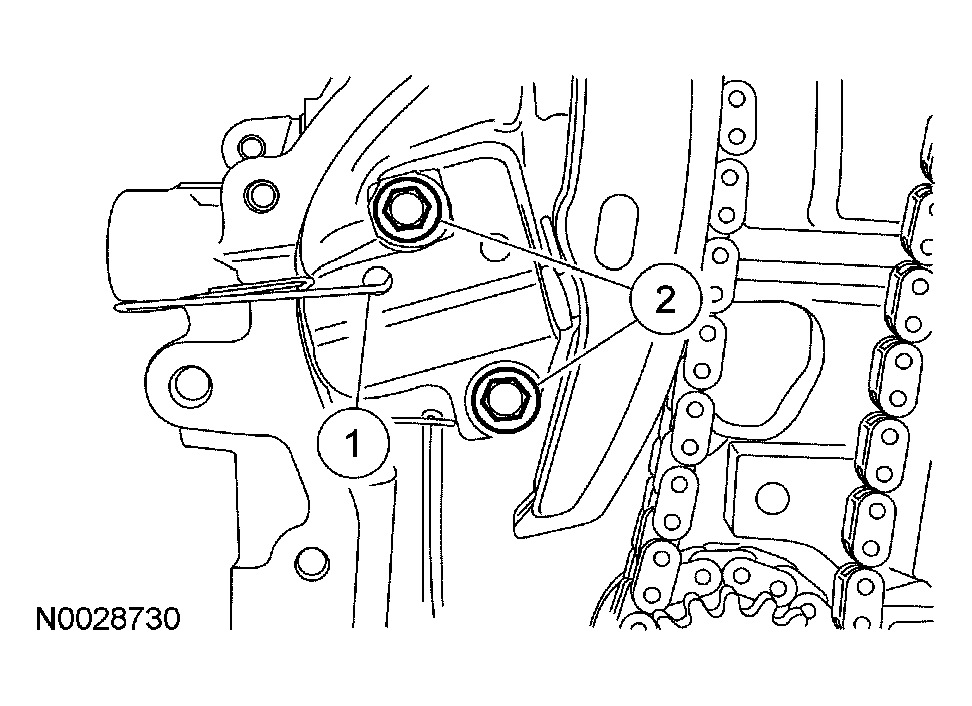

      Fig 9: Removing Bolts And Timing Chain Tensioner
      G03897777Courtesy of FORD MOTOR CO.
  18. Remove the RH timing chain guide.
    Fig 10: Identifying Timing Chain Guide
    G03897778Courtesy of FORD MOTOR CO.
  19. Remove the timing chain.
    Fig 11: Identifying Timing Chain
    G03897779Courtesy of FORD MOTOR CO.
  20. Remove the bolts and the LH timing chain guide.
    Fig 12: Identifying LH Timing Chain Guide And Bolts
    G03897780Courtesy of FORD MOTOR CO.
    21. CAUTION: Do not rely on the Camshaft Alignment Plate to prevent camshaft rotation. Damage to the tool or the camshaft can occur.
  21. Remove the bolts and the camshaft sprockets.
    • Use the flats on the camshaft to prevent camshaft rotation.
      Fig 13: Locating Cam Holding Area And Sprocket Bolt
      G03897781Courtesy of FORD MOTOR CO.
