Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

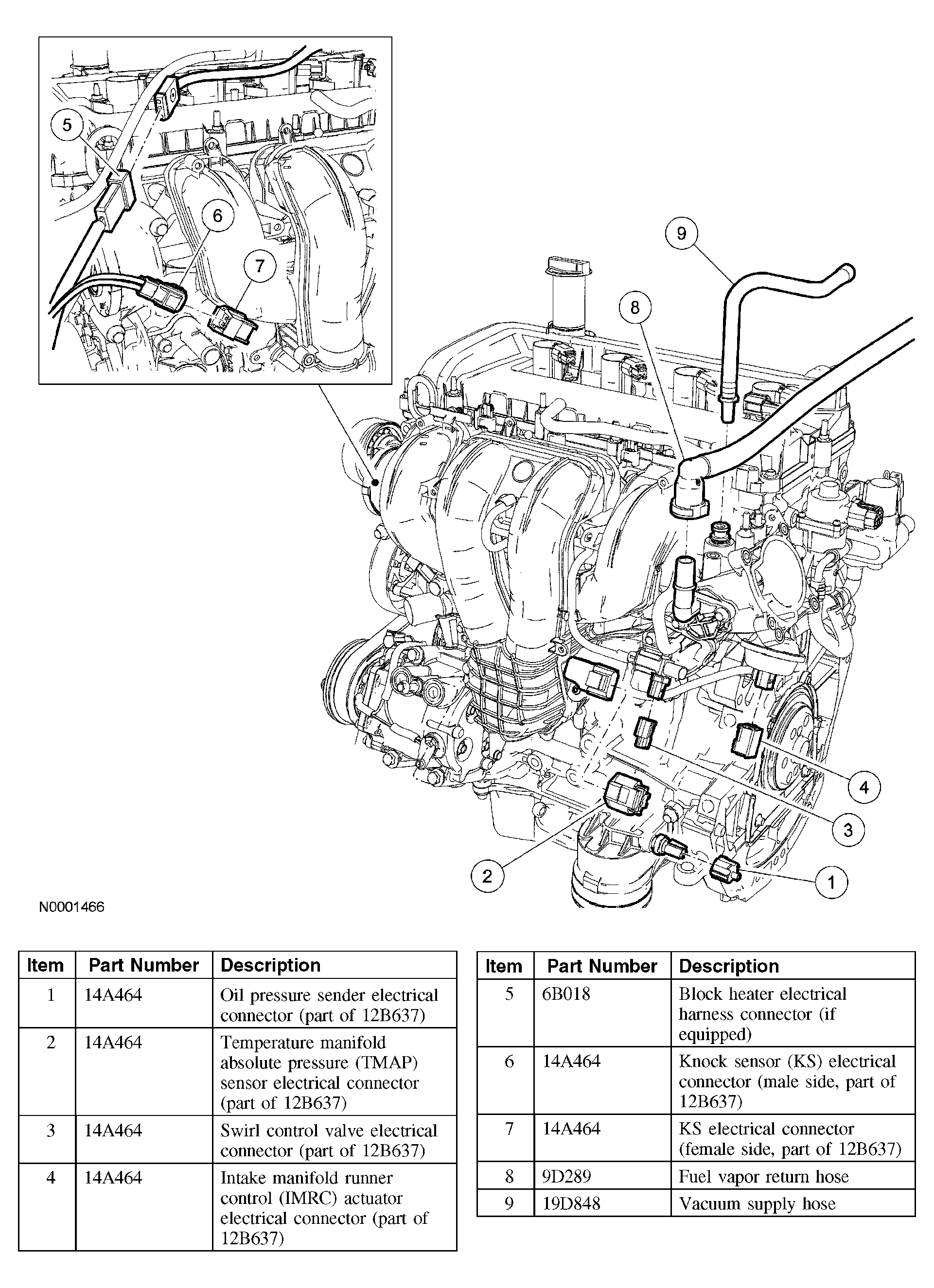

Fig 1: Locating Intake Manifold Component Location
G03898677Courtesy of FORD MOTOR CO.

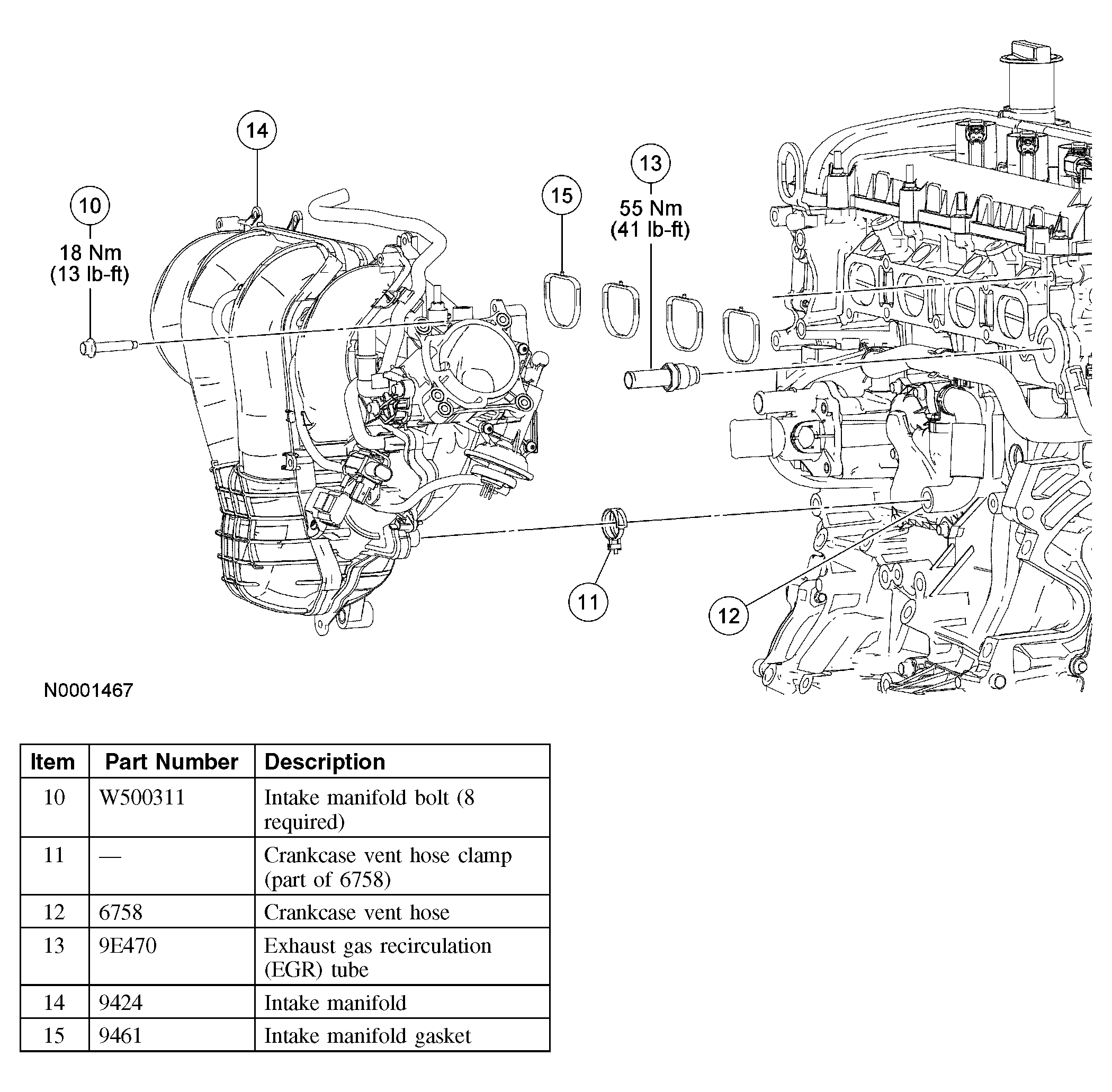

Fig 2: Locating Intake Manifold Component Location With Torque Specifications
G03898678Courtesy of FORD MOTOR CO.
