Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL(S) DESCRIPTION

G03950580
 Three-Bar Engine Support Kit 303-F072

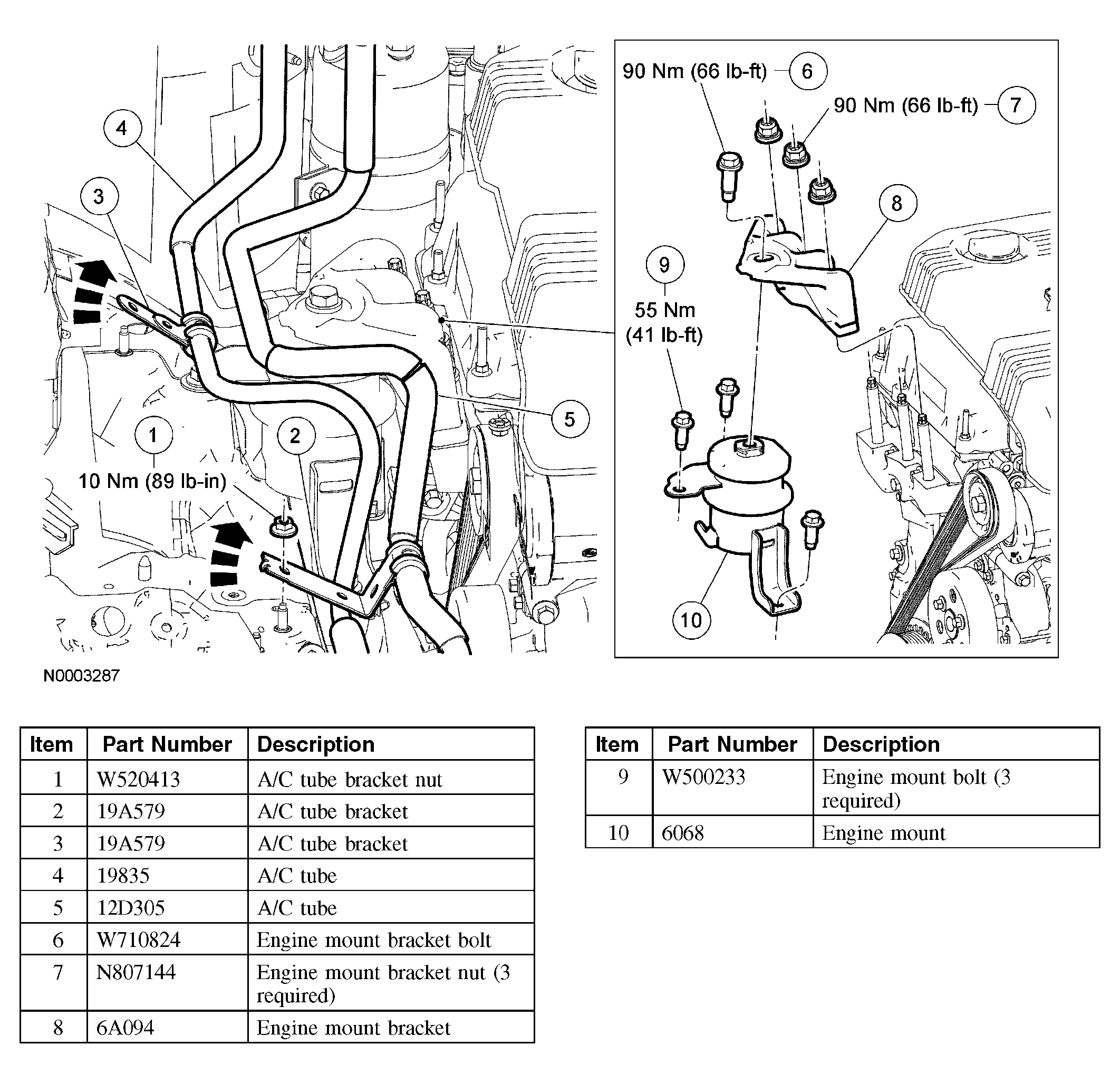

Fig 1: Removing Engine Mount Bracket With Torque Specifications
G03898820Courtesy of FORD MOTOR CO.
