Engine Lubrication Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

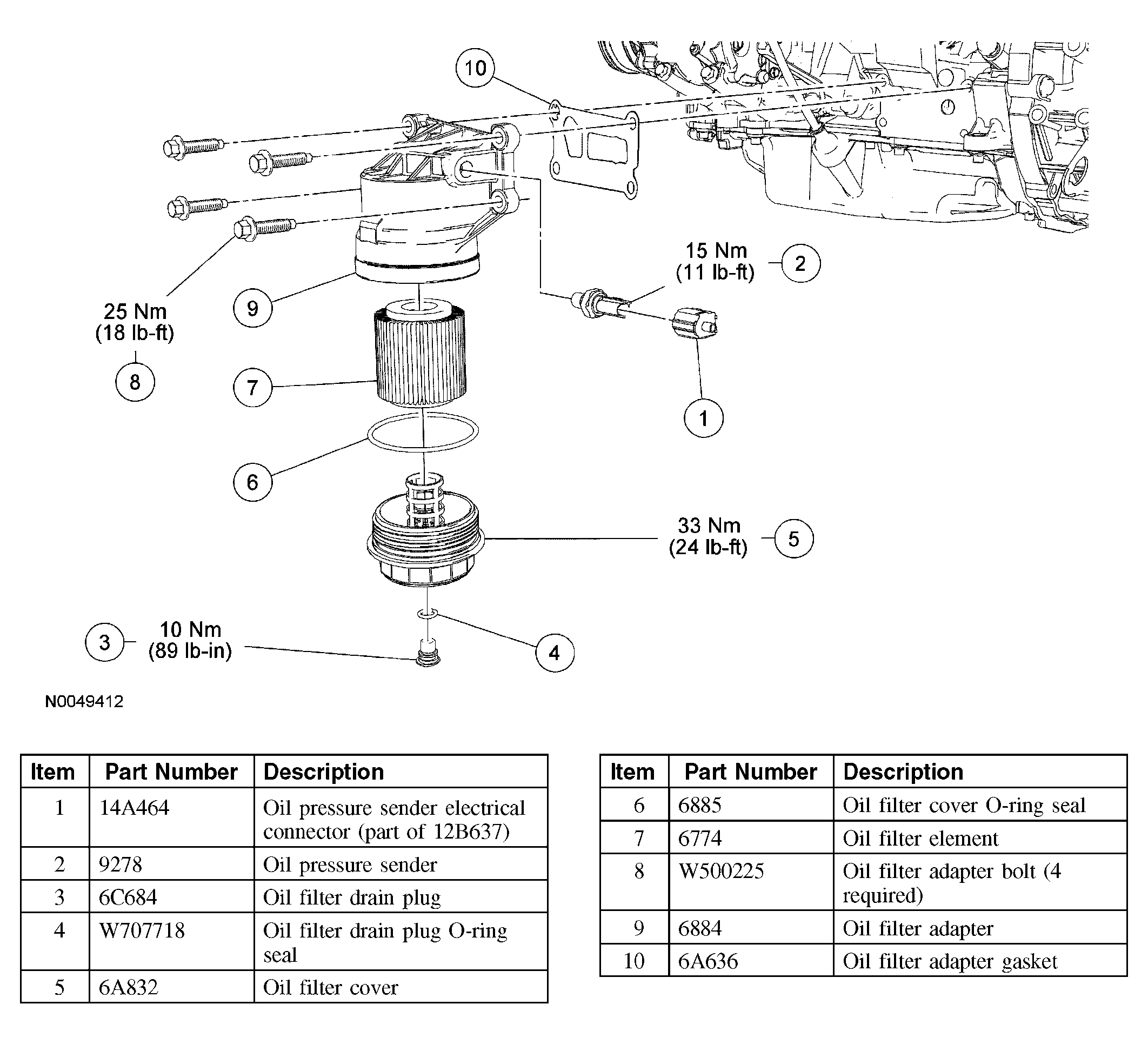

Fig 1: Exploded View Of Oil Filter Element Oil Filter Adapter And Oil Pressure Sender With Torque Specifications
G03898813Courtesy of FORD MOTOR CO.

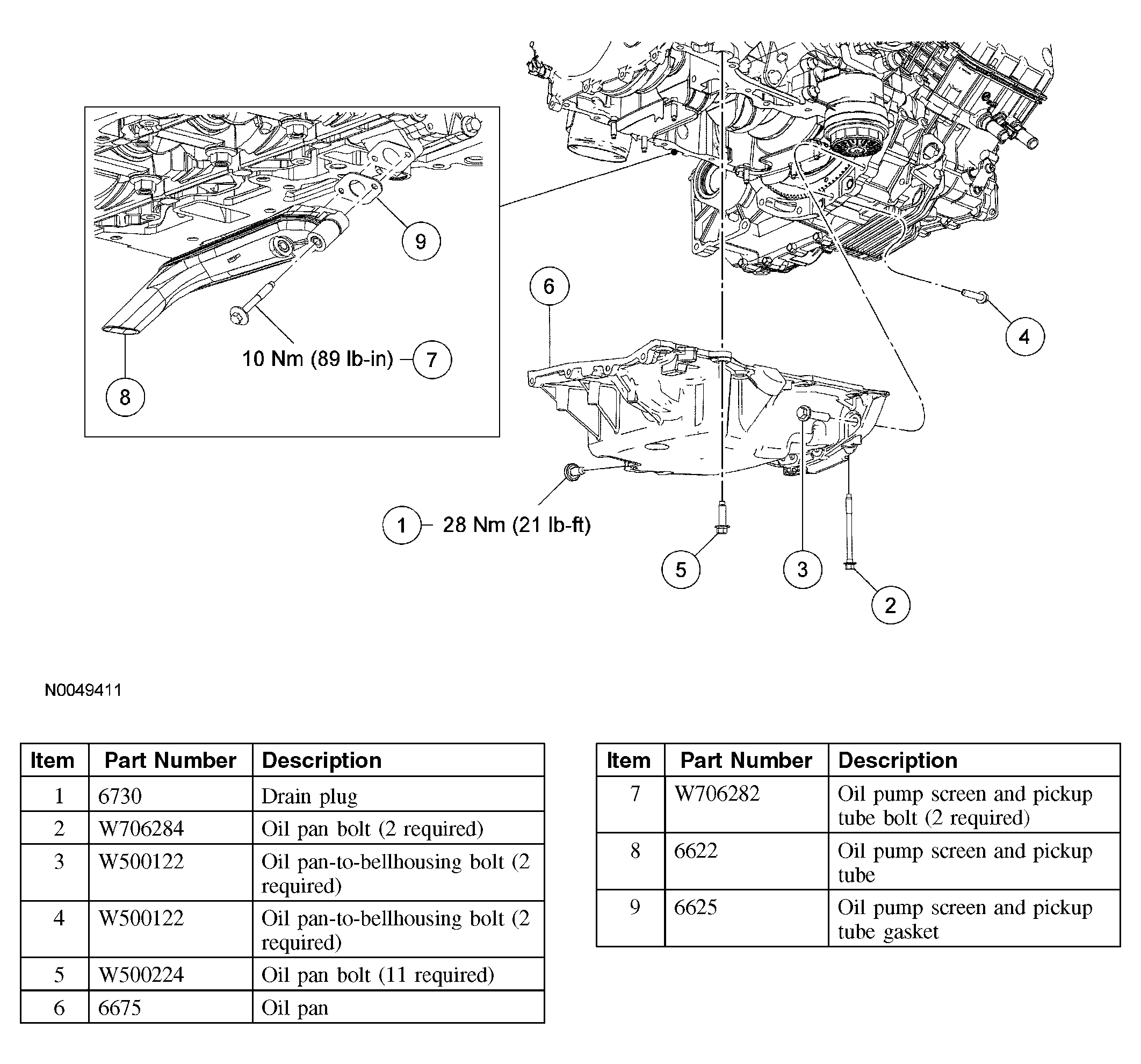

Fig 2: Oil Pan, Oil Pump Screen And Pickup Tube With Torque Specifications
G03898814Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the PROCEDURES .
