This pinpoint test is intended to diagnose the following:

Harness circuits: high speed CAN(+) High, high speed CAN(-) Low, between the data link connector DLC and Powertrain Control Module (PCM) or (TCM).
DLC harness circuits: chassis GND, signal GND, 12-volt battery positive B+.
Open VREF or GND to PCM.
Open VPWR or GND to TCM.
KOER DTC P1001.

NOTE: Network connection to other modules depends on vehicle configuration. Refer to SYSTEM WIRING DIAGRAMS for details of this circuit. For complete description and operation information for the entire vehicle module communications network, refer to MODULE COMMUNICATIONS NETWORK - ESCAPE & MARINER .

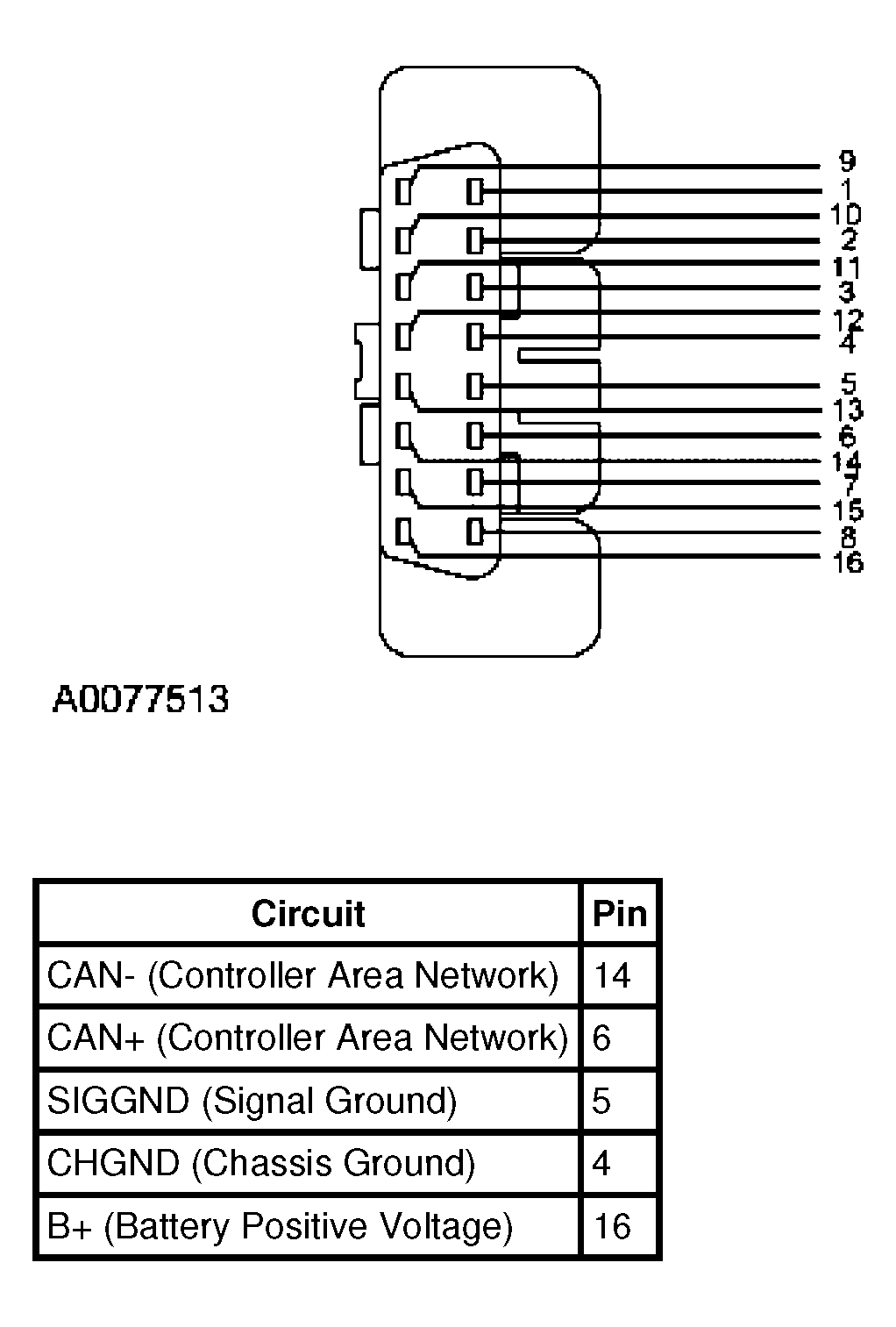

Fig 1: Identifying Data Link Connector (DLC)

Courtesy of FORD MOTOR CO.

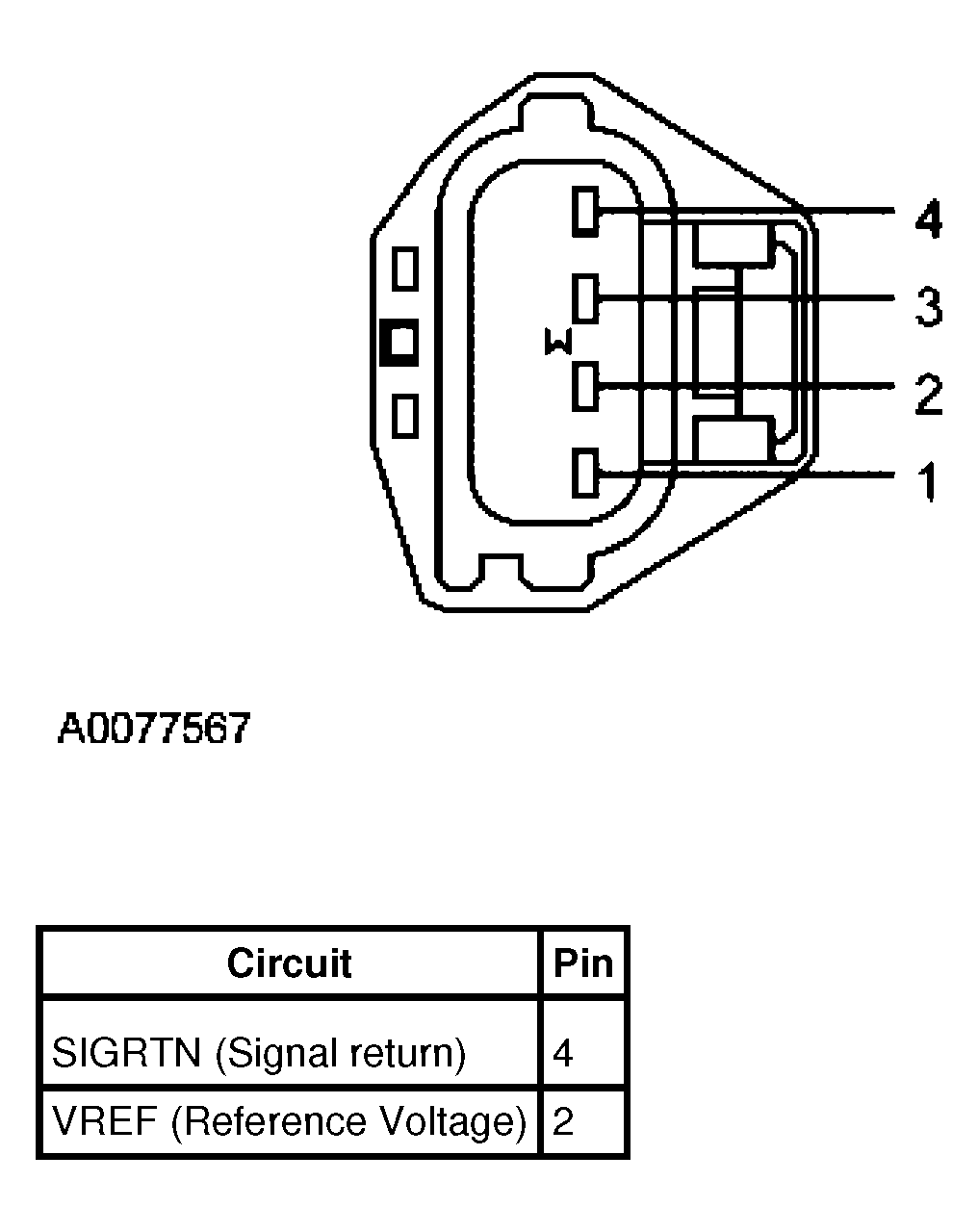

Fig 2: Identifying Fuel Rail Pressure/Temperature (FRPT) Sensor Connector

Courtesy of FORD MOTOR CO.

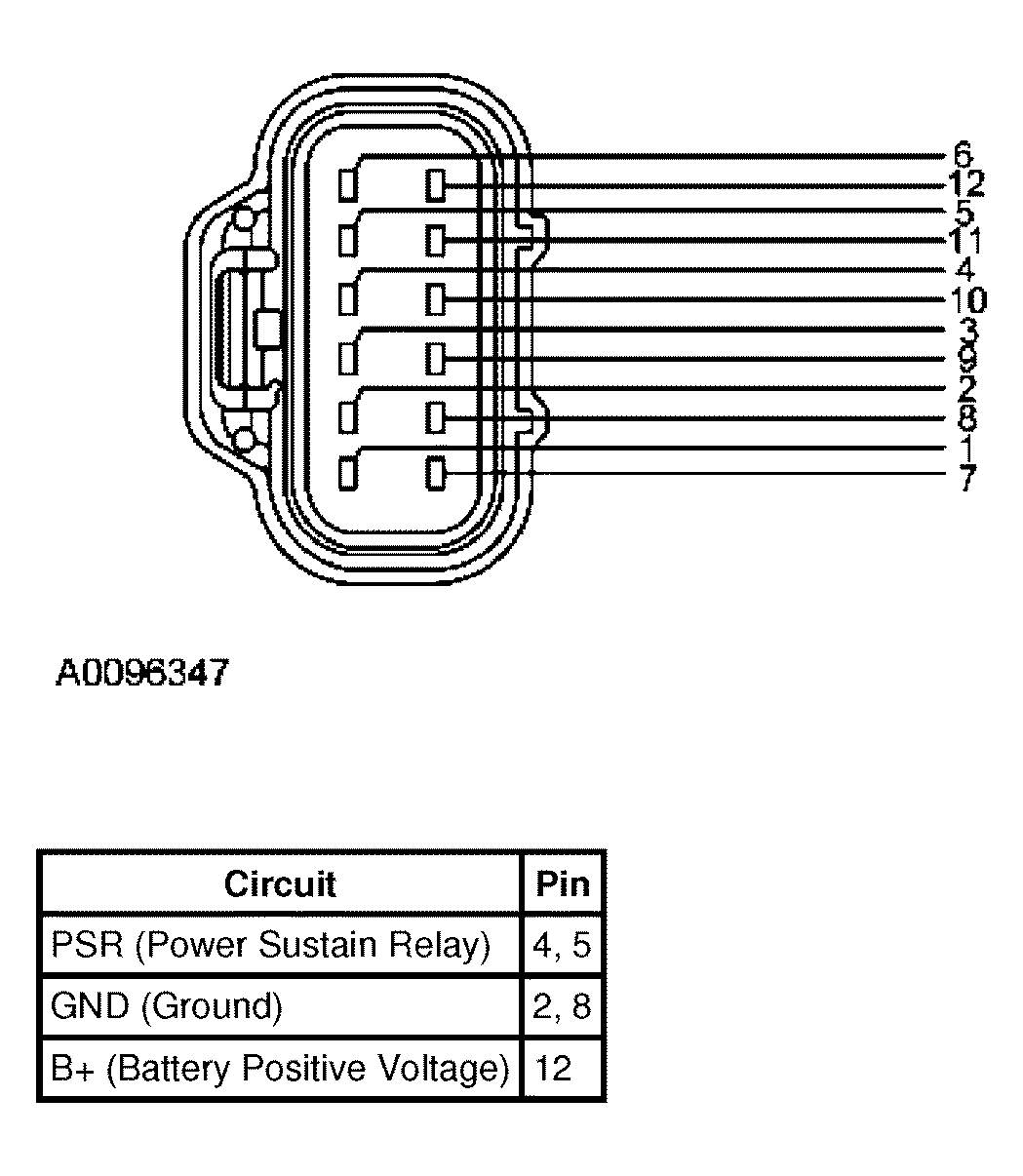

Fig 3: Identifying Transaxle Assembly-A Connector

Courtesy of FORD MOTOR CO.
