Important Safety Notice

Appropriate repair methods and procedures are essential for the safe, reliable operation of all motor vehicles, as well as the personal safety of the individual doing the work. This article provides general directions for repairing vehicles with tested, effective techniques. Following them will help ensure reliability. There are numerous variations in procedures, techniques, tools, and parts for repairing vehicles, as well as in the skill of the individual doing the work. This article cannot possibly anticipate all such variations and provide advice or cautions as to each. Accordingly, anyone who departs from the instructions provided in this article must first establish that they compromise neither their personal safety nor the vehicle integrity by their choice of methods, tools, or parts.

This pinpoint test is intended to diagnose the following:

• Harness circuits: DC/DC enable (DCE) and DC/DC fault (DCF).
• DC/DC converter (14B227).
• Powertrain control module (PCM) (12A650).

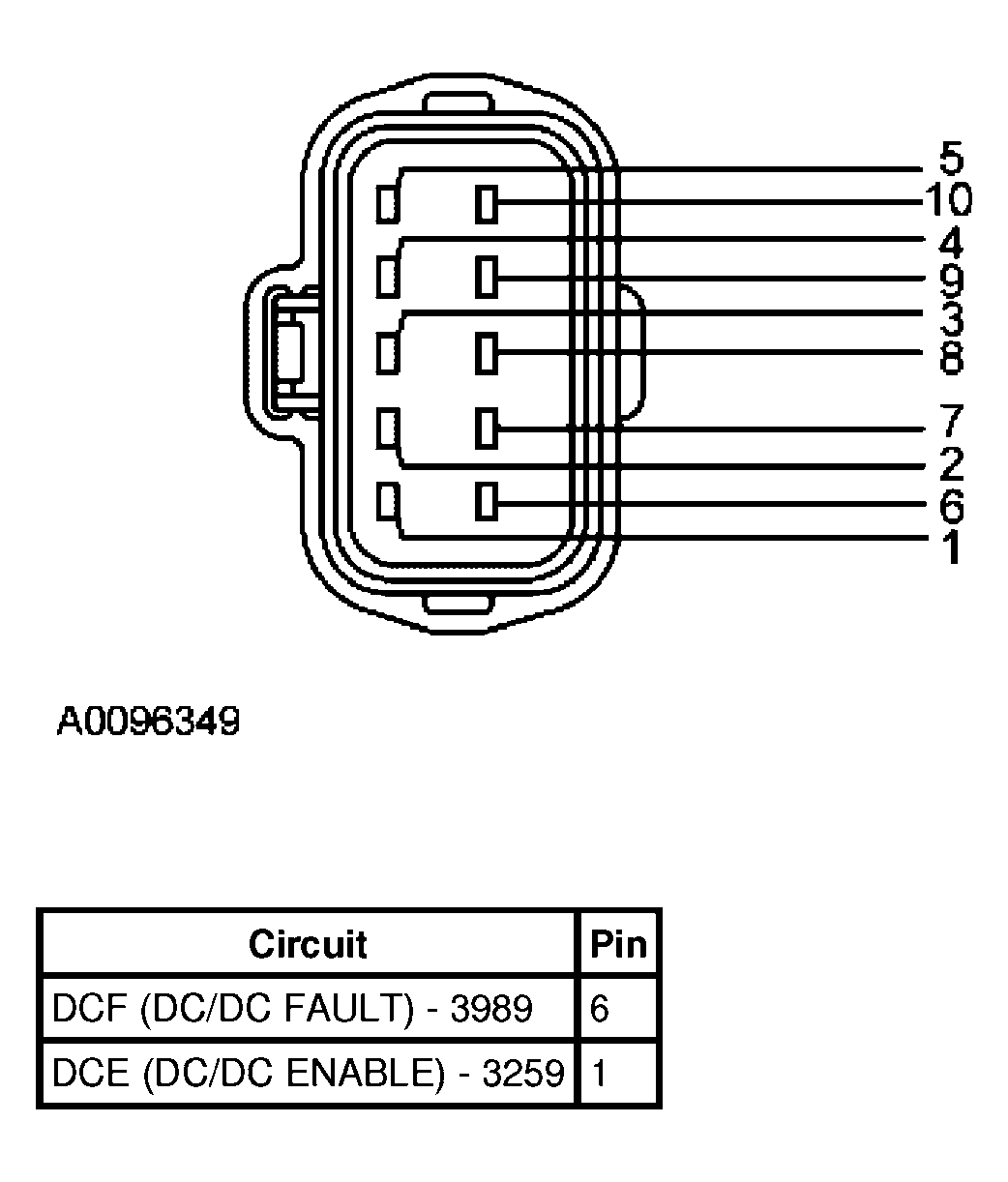

Fig 1: Identifying DC/DC Converter-A (DDC-A) Connector

Courtesy of FORD MOTOR CO.

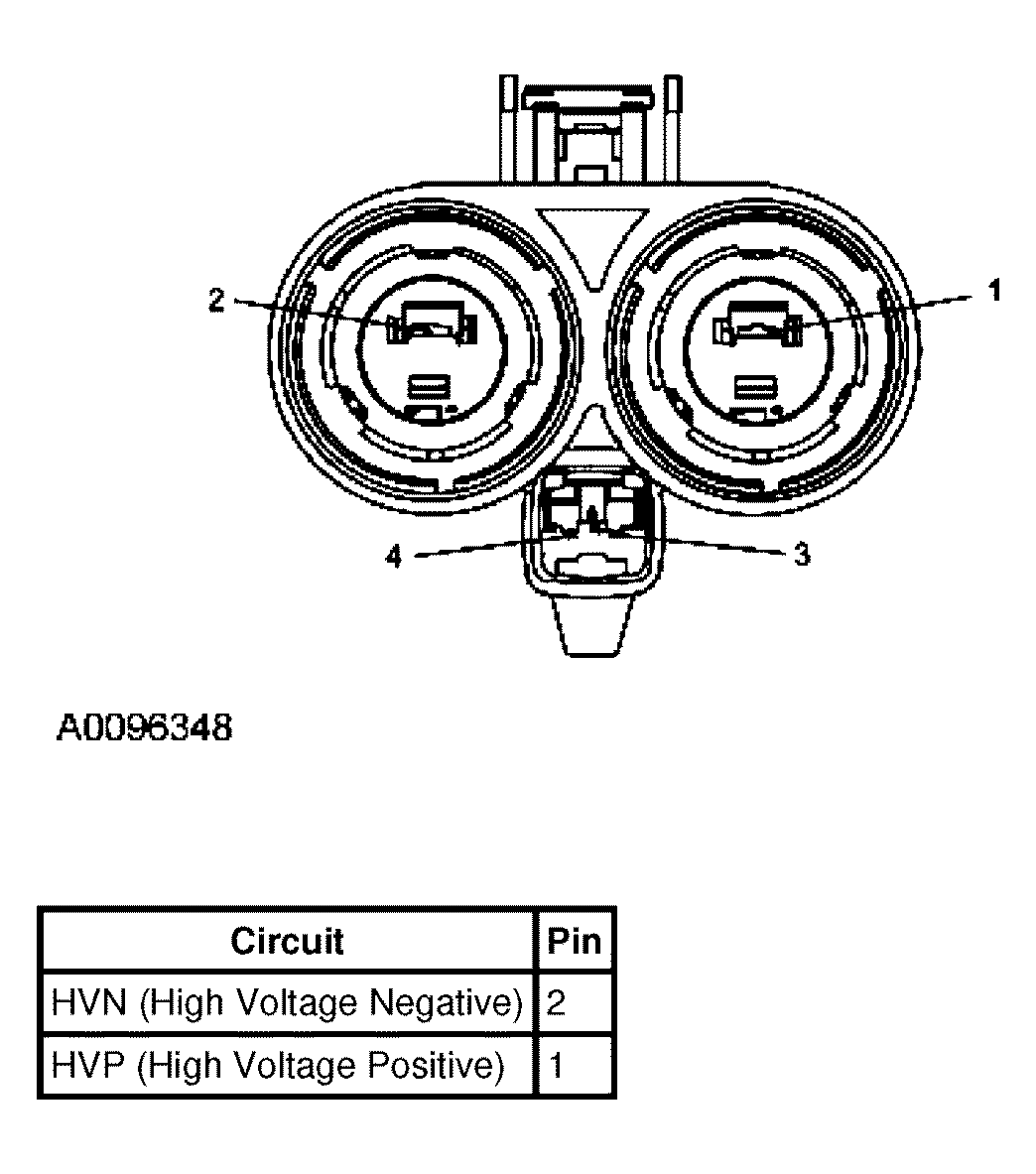

Fig 2: Identifying DC/DC Converter-High Voltage (DDC-HV) Connector

Courtesy of FORD MOTOR CO.

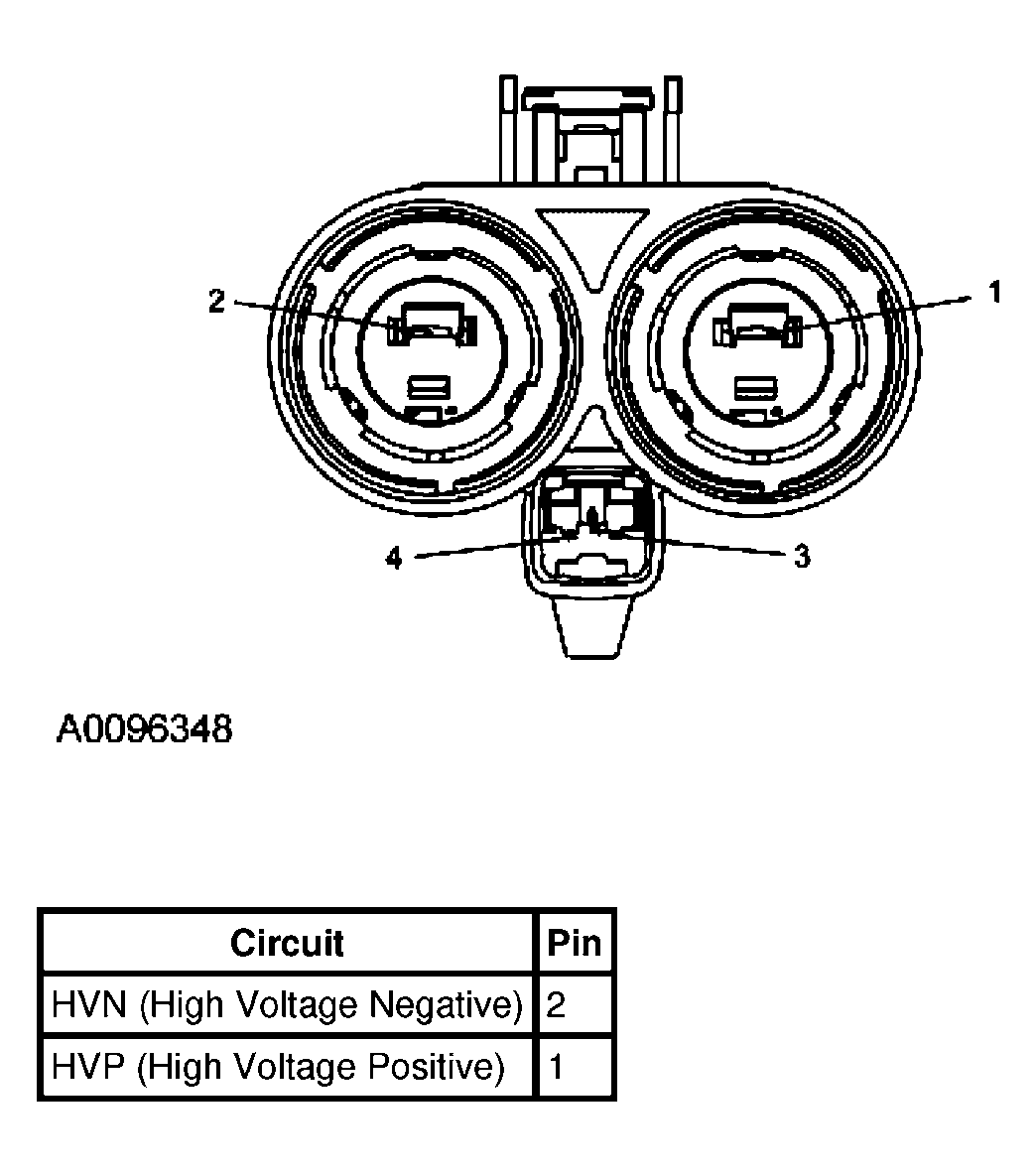

Fig 3: Identifying Transaxle Assembly-DC/DC High Voltage (DDHV) Connector

Courtesy of FORD MOTOR CO.

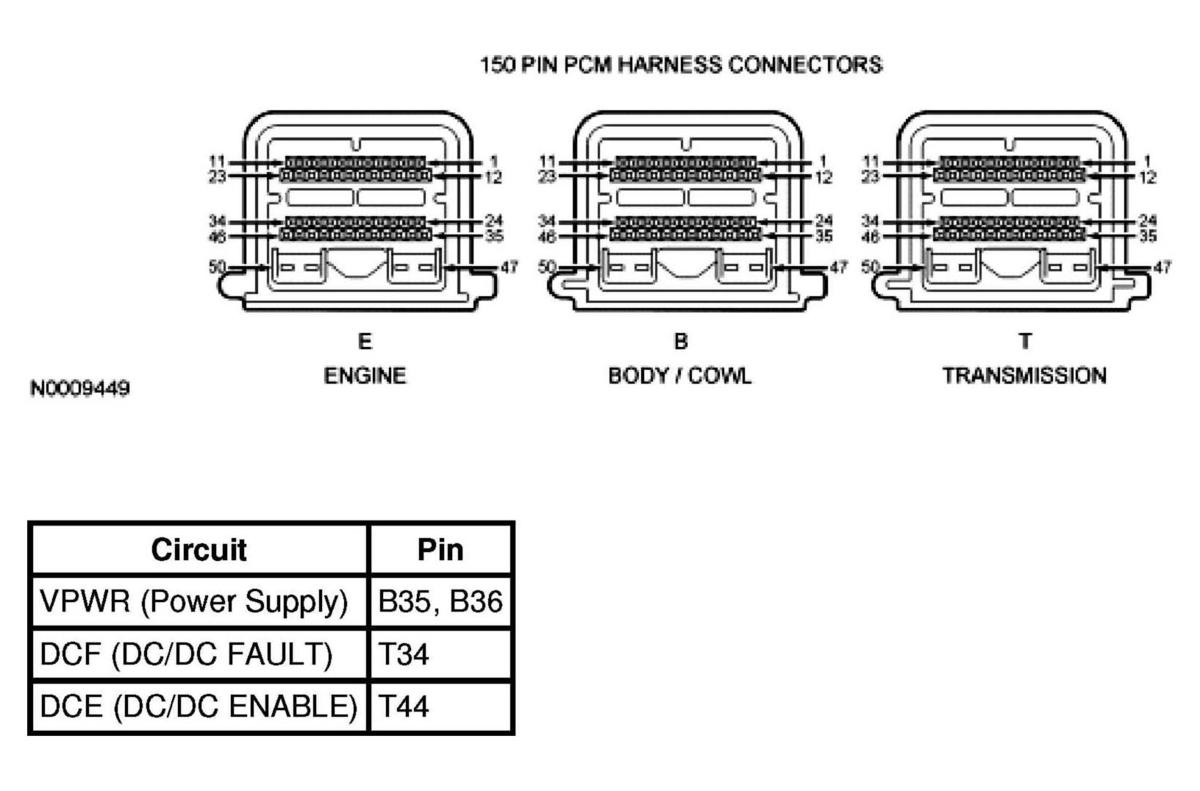

Fig 4: Identifying Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
