Important Safety Notice

WARNING: This page is about a different variant/trim than selected.

Appropriate repair methods and procedures are essential for the safe, reliable operation of all motor vehicles, as well as the personal safety of the individual doing the work. This article provides general directions for repairing vehicles with tested, effective techniques. Following them will help ensure reliability. There are numerous variations in procedures, techniques, tools, and parts for repairing vehicles, as well as in the skill of the individual doing the work. This article cannot possibly anticipate all such variations and provide advice or cautions as to each. Accordingly, anyone who departs from the instructions provided in this article must first establish that they compromise neither their personal safety nor the vehicle integrity by their choice of methods, tools, or parts.

This pinpoint test is intended to diagnose the following:

On applications that do not use an ECT sensor, the CHT sensor is used to determine the engine coolant temperature in place of the ECT sensor. To cover the entire temperature range of both the CHT and ECT sensors, the PCM has a dual switching resistor circuit on the CHT input. A graph showing the temperature switching from the COLD END line to the HOT END line, with increasing temperature and back with decreasing temperature is included. Note the temperature to voltage overlap zone. Within this zone it is possible to have either a COLD END or HOT END voltage at the same temperature. For example, at 90°C (194°F) the voltage could read either 0.60 volt or 3.71 volts. Refer to the table for the temperature to voltage expected values.

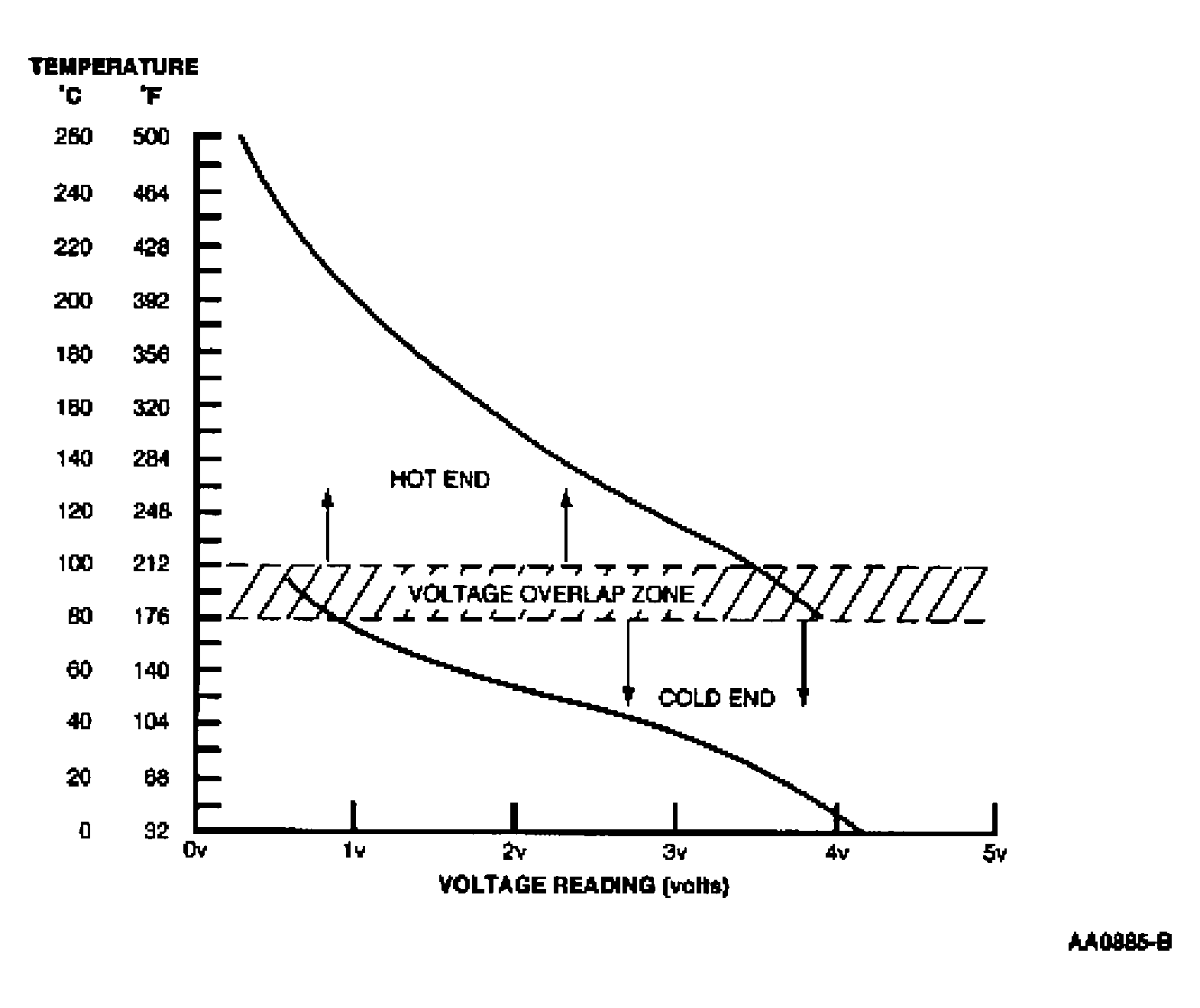

Fig 1: Sensor Temperature To Voltage Graph
G04024212Courtesy of FORD MOTOR CO.

Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.

CYLINDER HEAD TEMPERATURE SENSOR EXPECTED VALUES

temperature CHT Sensor Values
°C °F COLD END (volts) HOT END (volts) Resistance (K ohms)
-40 -40 4.89 - 965.808
-30 -22 4.81 - 513.019
-20 -4 4.67 - 283.664
-10 14 4.45 - 162.584
0 32 4.14 - 96.255
10 50 3.73 - 59.175
20 68 3.26 - 37.387
30 86 2.74 - 24.215
40 104 2.23 - 16.043
50 122 1.76 - 10.85
60 140 1.36 - 7.487
70 158 1.04 - 5.268
80 176 0.79 3.99 3.775
85 185 0.69 3.86 3.215
90 194 0.60 3.71 2.75
95 203 0.53 3.56 2.361
100 212 0.46 3.41 2.034
110 230 - 3.07 1.523
120 248 - 2.74 1.155
130 266 - 2.41 0.8866
140 284 - 2.10 0.6891
150 302 - 1.81 0.5417
160 320 - 1.55 0.4301
170 338 - 1.33 0.3449
180 356 - 1.13 0.2791
190 374 - 0.96 0.2278
200 392 - 0.82 0.1875
210 410 - 0.70 0.155
220 428 - 0.60 0.130
230 446 - 0.51 0.109
240 464 - 0.44 0.092
250 482   0.35 0.078
260 500   0.33 0.067

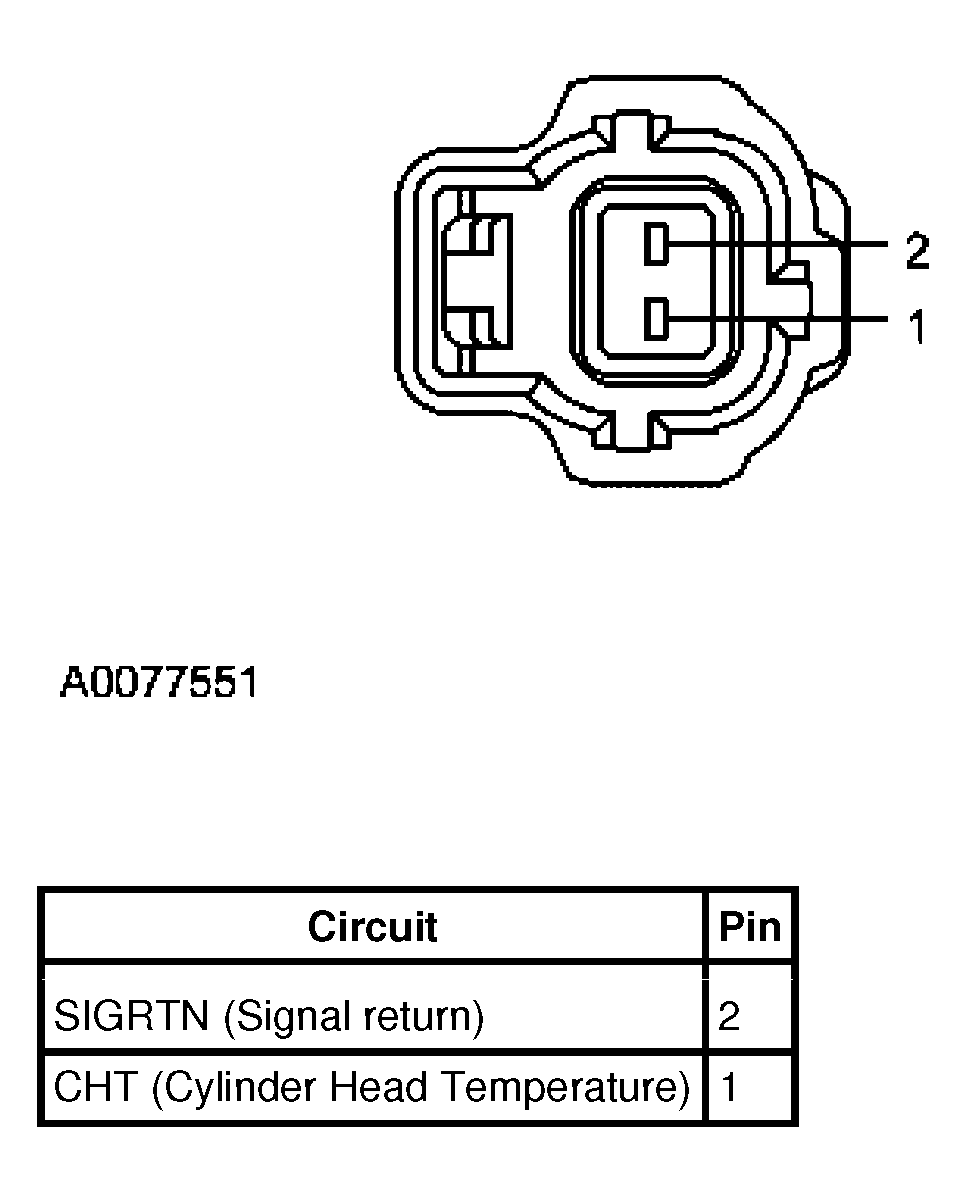

Fig 2: Identifying Cylinder Head Temperature (CHT) Sensor Connector
G04024213Courtesy of FORD MOTOR CO.

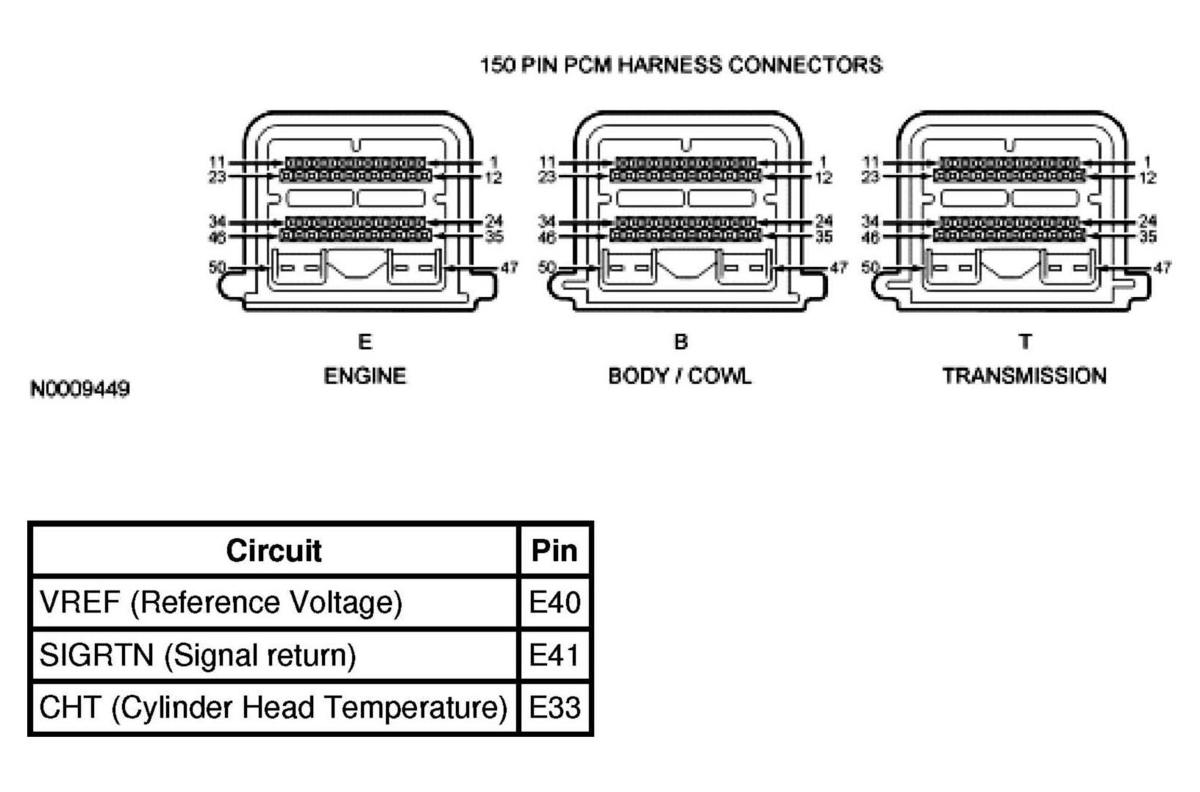

Fig 3: Identifying Powertrain Control Module (PCM) Connector
G04024214Courtesy of FORD MOTOR CO.
