This pinpoint test is intended to diagnose the following:

• Integrated mass air flow (MAF)/intake air temperature (IAT) sensor (12B579).
• Harness circuits IAT, VREF, and SIGRTN.
• Powertrain control module (PCM) (12A650).

Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.

Fig 1: IAT Temperature/Voltage Graph

Courtesy of FORD MOTOR CO.

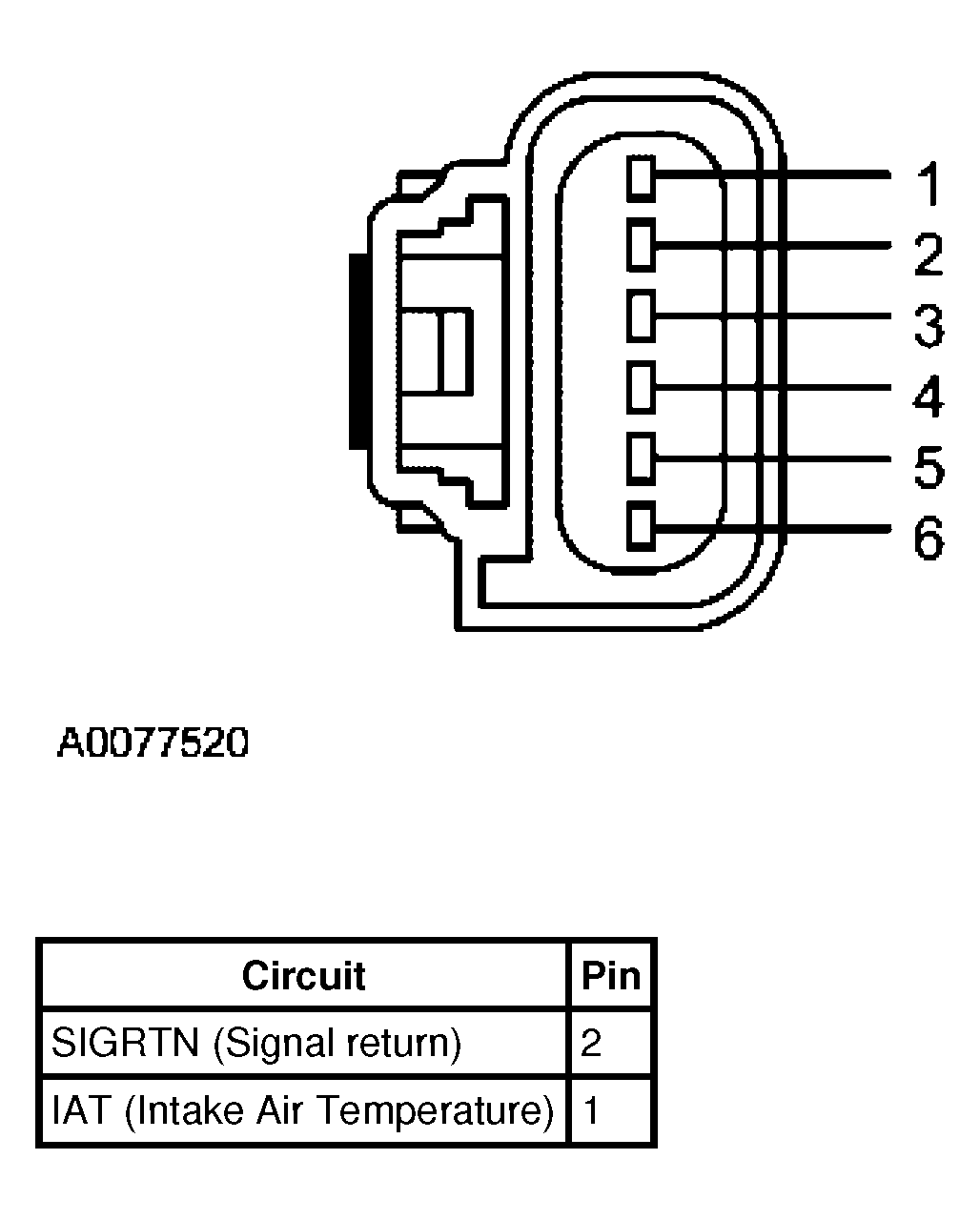

Fig 2: Identifying Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector

Courtesy of FORD MOTOR CO.

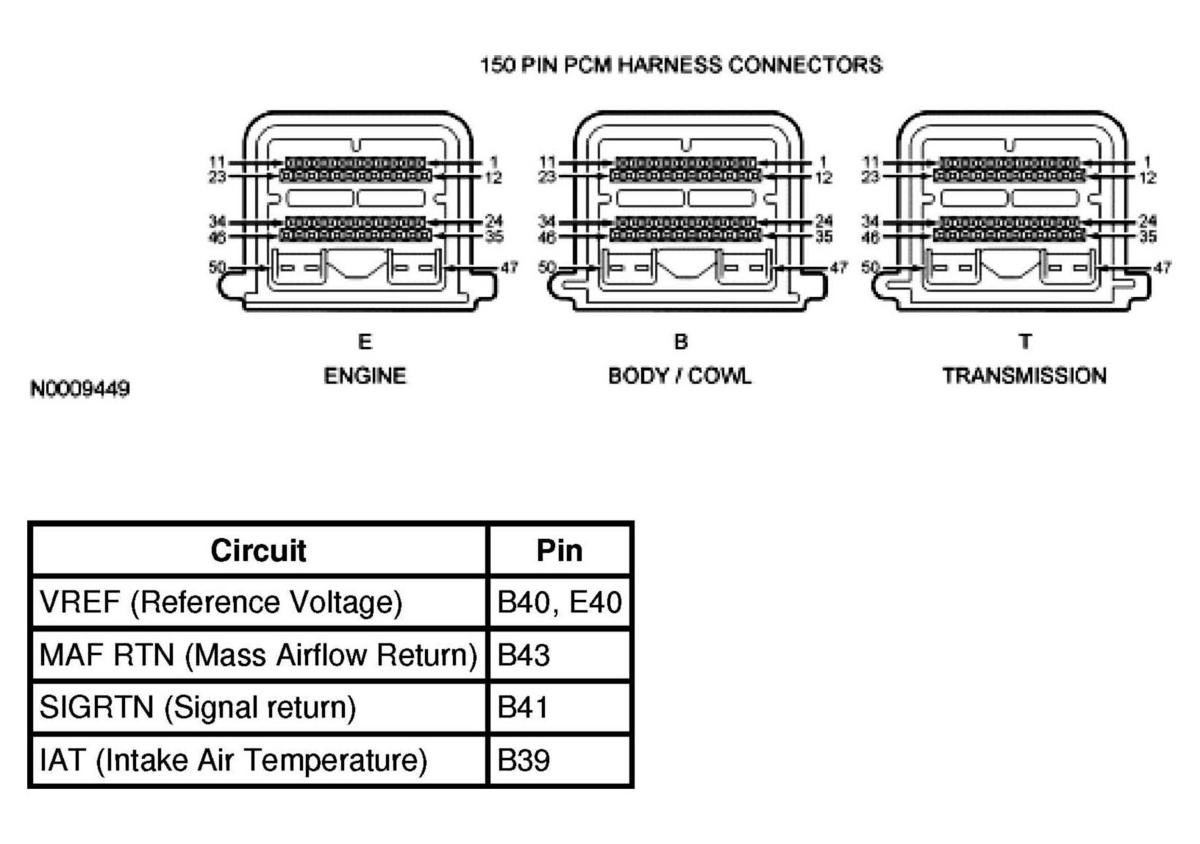

Fig 3: Identifying Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
