VECI Decal

WARNING: This page is about a different variant/trim than selected.

Each vehicle has a VECI decal containing emission control information that applies specifically to the vehicle and engine. The specifications on the decal are critical to repairing emissions systems.

Fig 1: Identifying Vehicle Emission Control Information (VECI) Decal

Courtesy of FORD MOTOR CO.

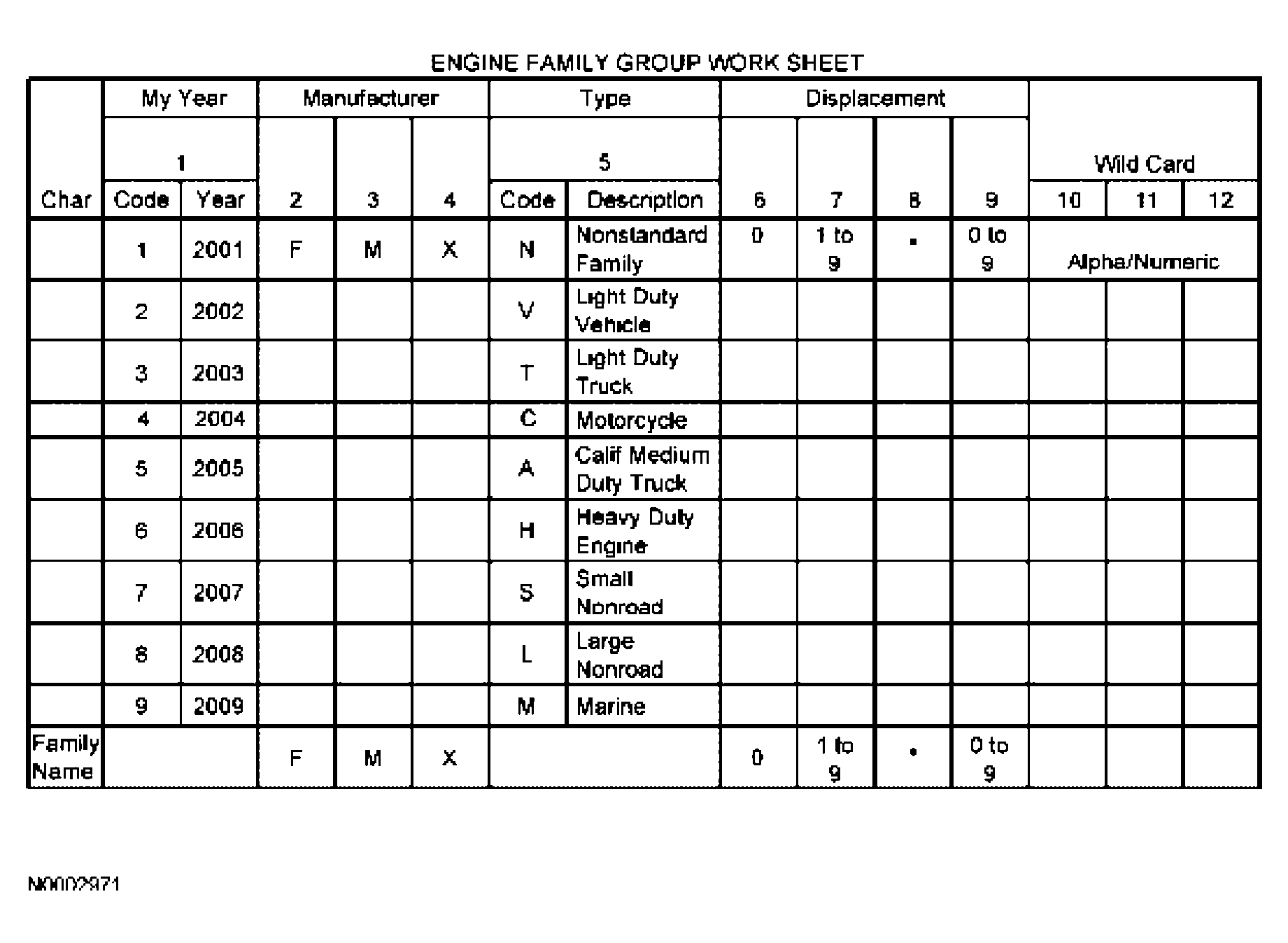

Fig 2: Engine Family Group Work Sheet

Courtesy of FORD MOTOR CO.

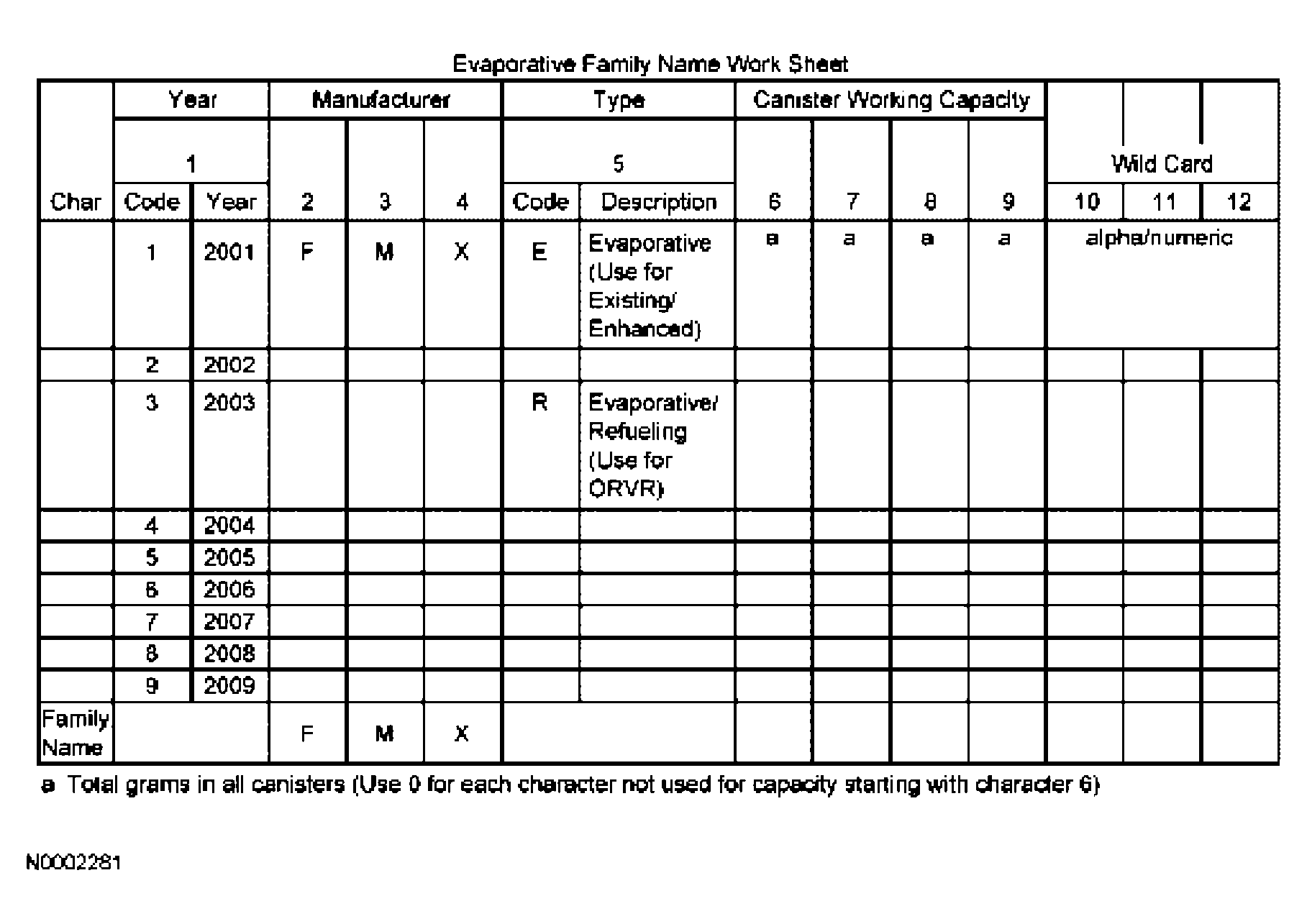

Fig 3: Evaporative Family Group Work Sheet

Courtesy of FORD MOTOR CO.
