Negative Split Mode

WARNING: This page is about a different variant/trim than selected.

In this mode the internal combustion engine is running but the generator motor is reducing the engine speed. This mode is never preferred but occurs when all of the following vehicle conditions are met:

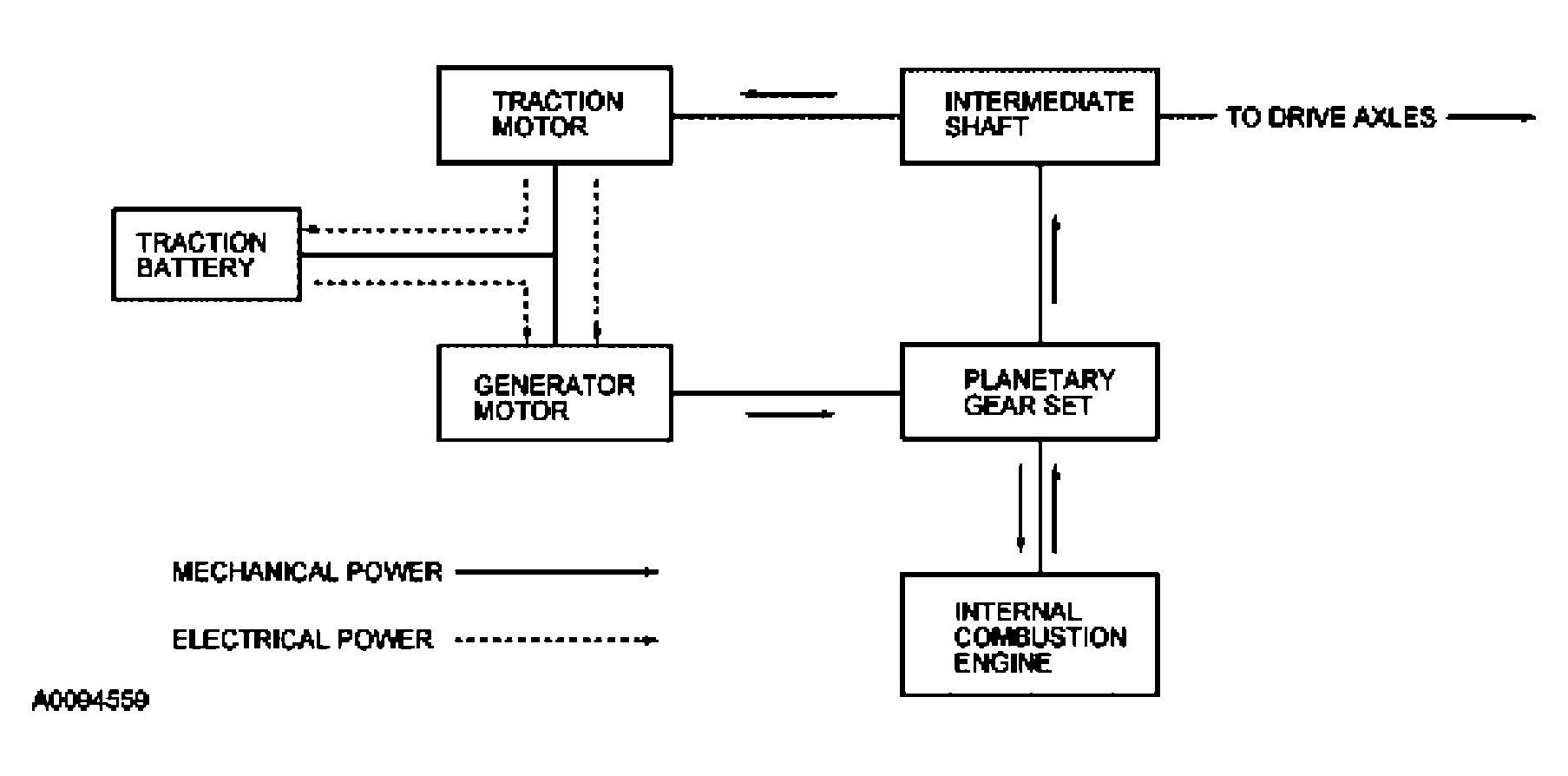

Fig 1: Negative Split Mode - Diagram
G04024155Courtesy of FORD MOTOR CO.
