Electric EGR (EEGR) System: Hardware
WARNING: This page is about a different variant/trim than selected.

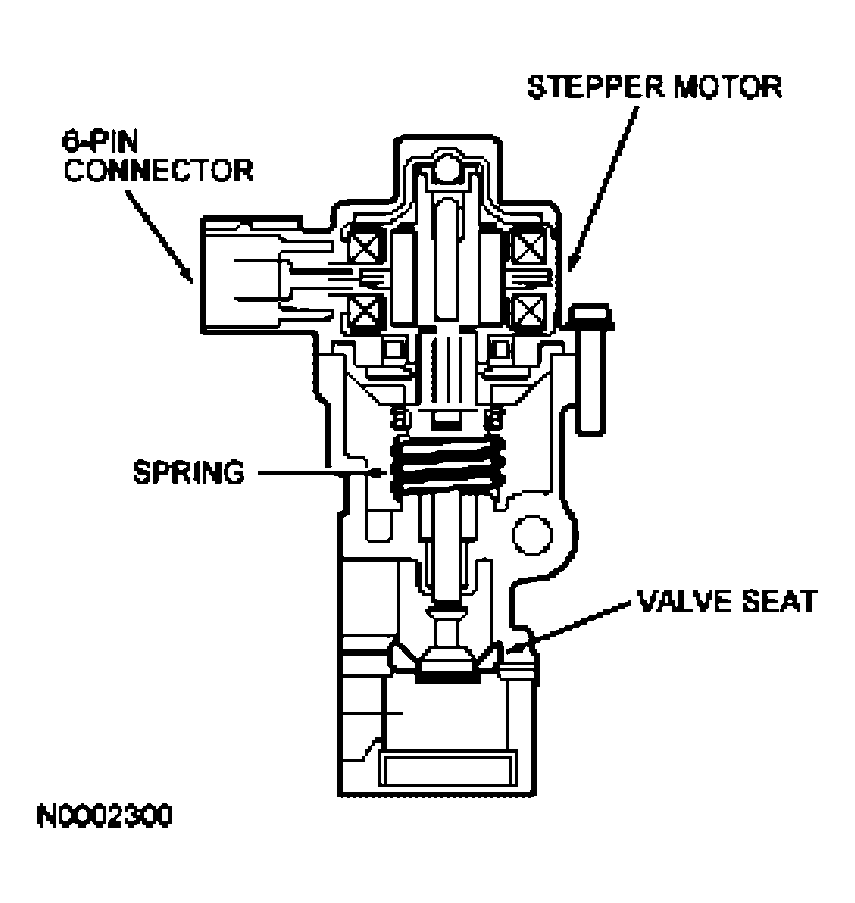

The EEGR valve is a water cooled motor/valve assembly. The motor is commanded to move in 52 discrete steps as it acts directly on the EEGR valve. The position of the valve determines the rate of EGR. The built-in spring works to close the valve against the motor opening force.
