Fuel Tank Pressure (FTP) Sensor

WARNING: This page is about a different variant/trim than selected.

The FTP sensor is used to measure the fuel tank pressure during the EVAP leak check monitor.

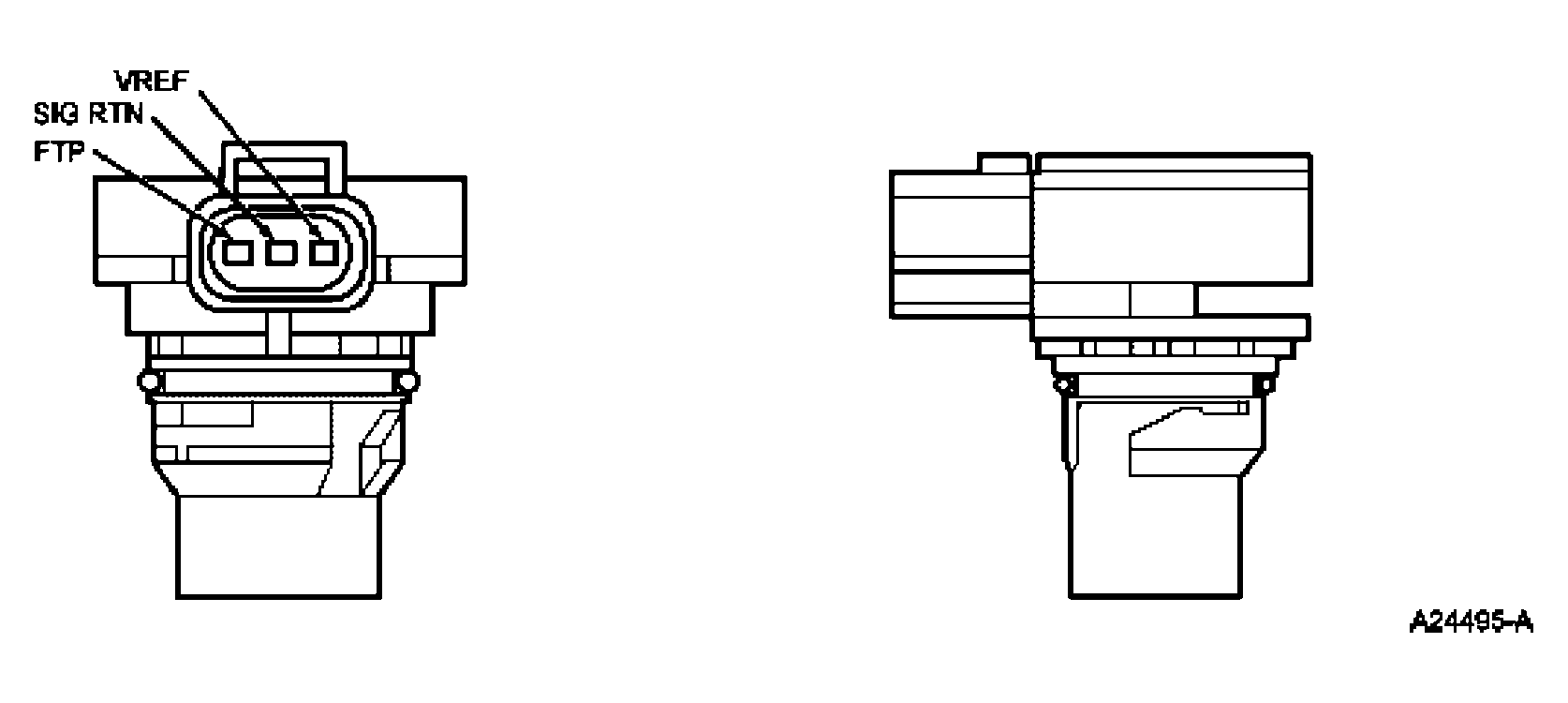

Fig 1: Identifying Fuel Tank Pressure (FTP) Sensor
G04024175Courtesy of FORD MOTOR CO.
