Battery Zone Valve: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATION (BATTERY ZONE VALVE)

Item Specification
Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) ESH-M2C31-A2

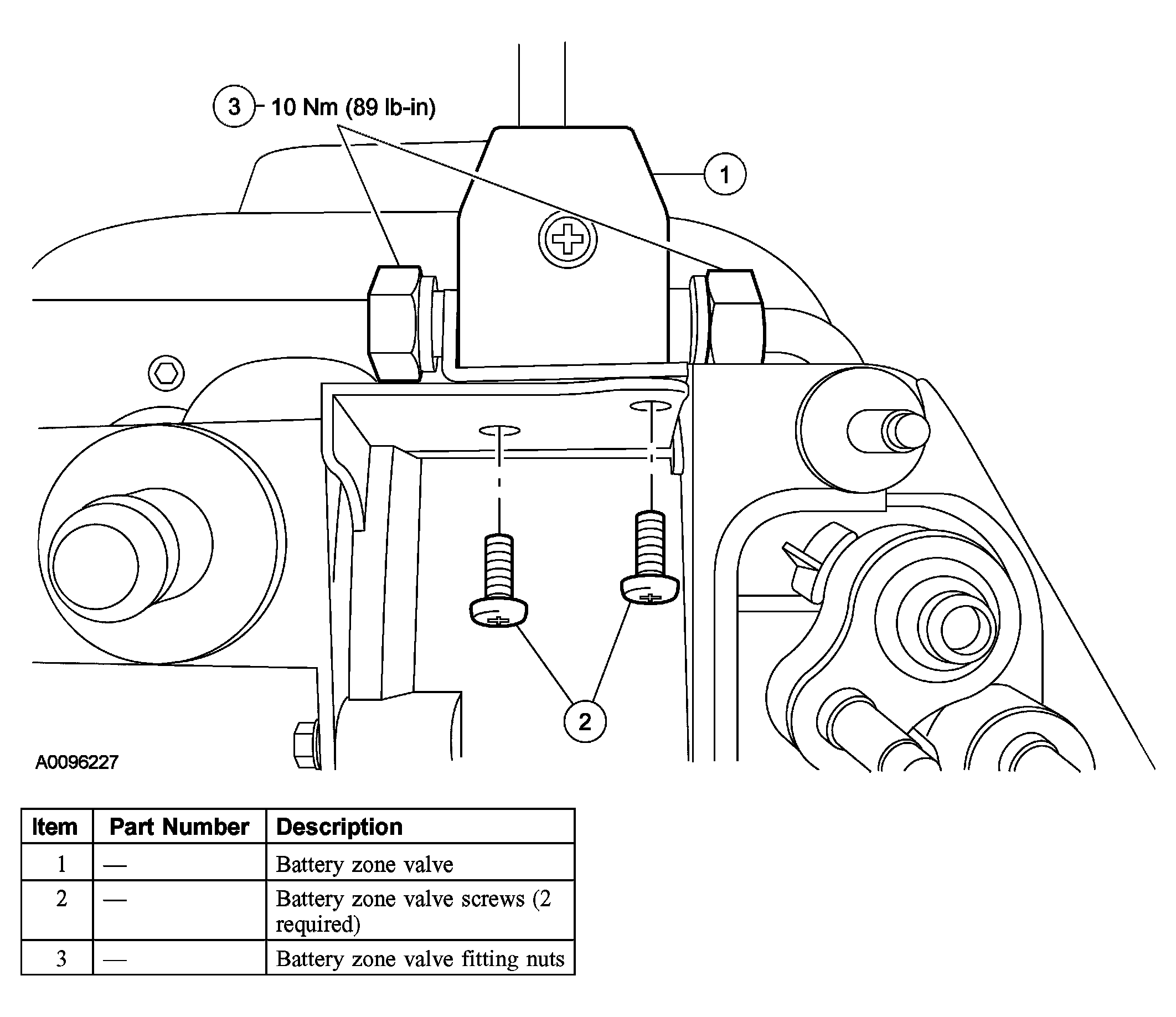

Fig 1: Replacement Components With Torque Specifications Of Battery Zone Valve
G03902496Courtesy of FORD MOTOR CO.
