Valve Cover: Notes

WARNING: This page is about a different variant/trim than selected.

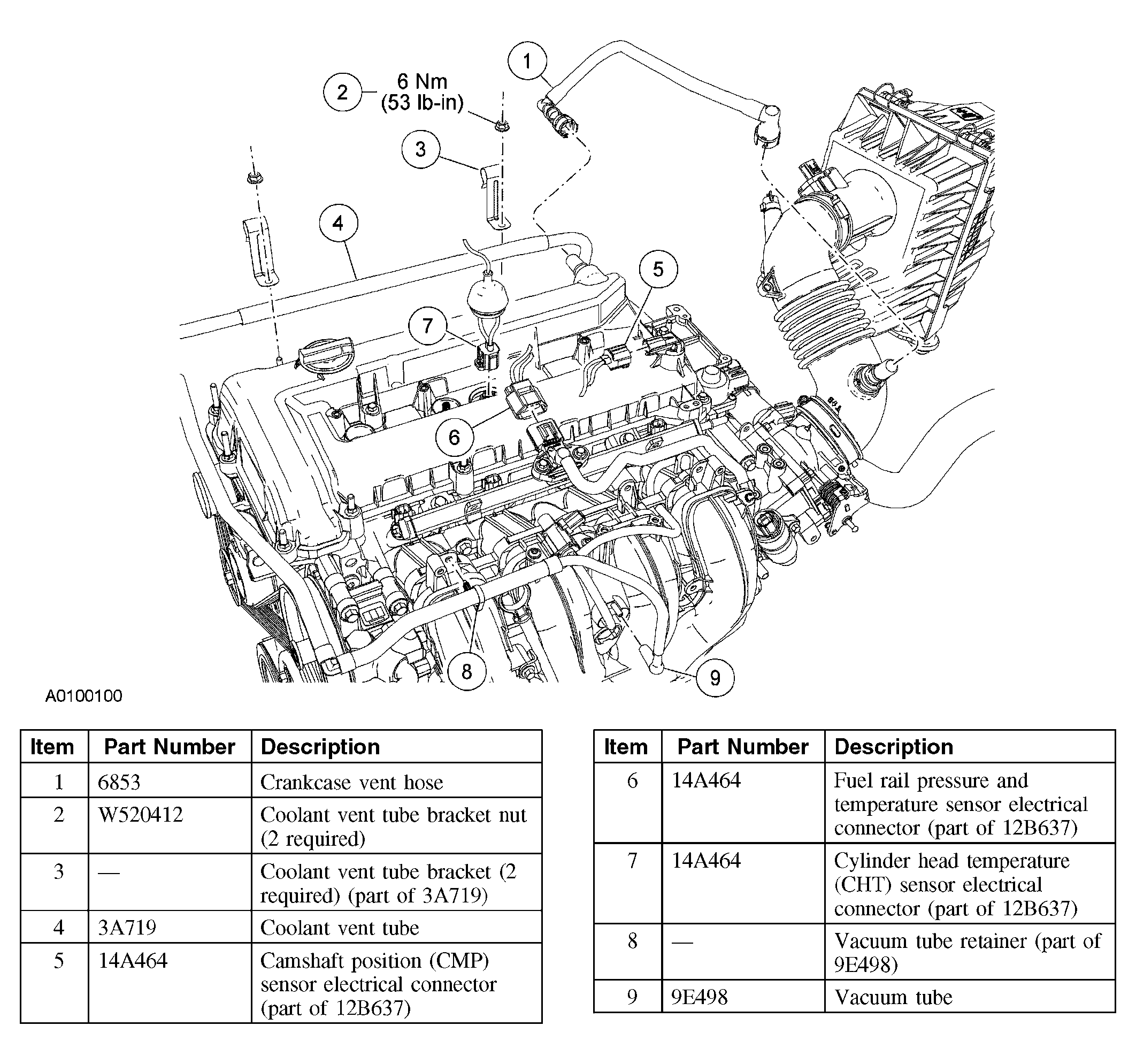

Fig 1: Removing/Installing Valve Cover (1 Of 2) With Torque Specifications
G03897689Courtesy of FORD MOTOR CO.

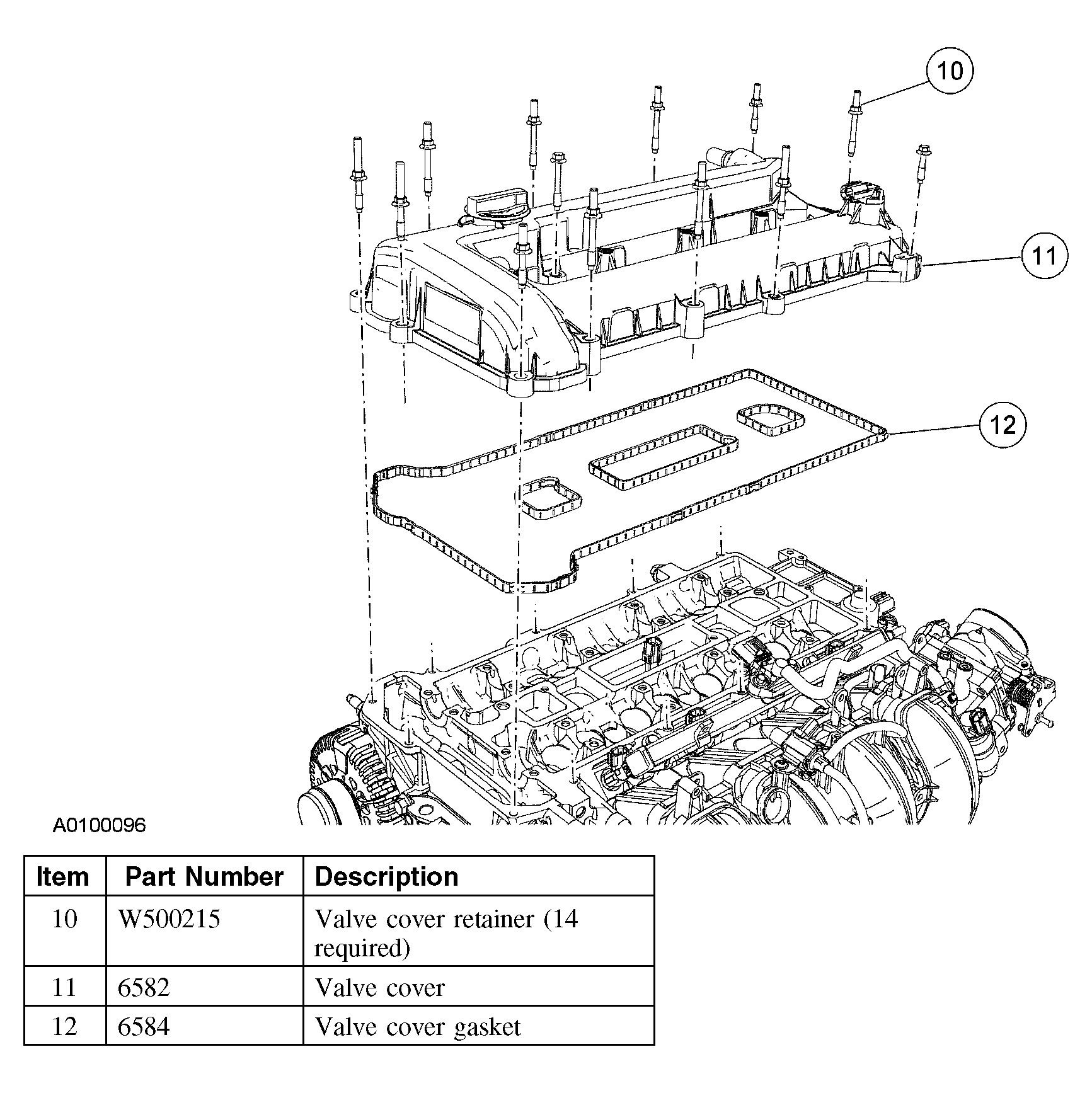

Fig 2: Removing/Installing Valve Cover (2 Of 2)
G03897690Courtesy of FORD MOTOR CO.
