Section 3 (Engine - 2.3L - (Except Hybrid))
>>
In-Vehicle Repair
>>
Oil Cooler
>>
Notes
Oil Cooler: Notes
WARNING:
This page is about a different variant/trim than selected.

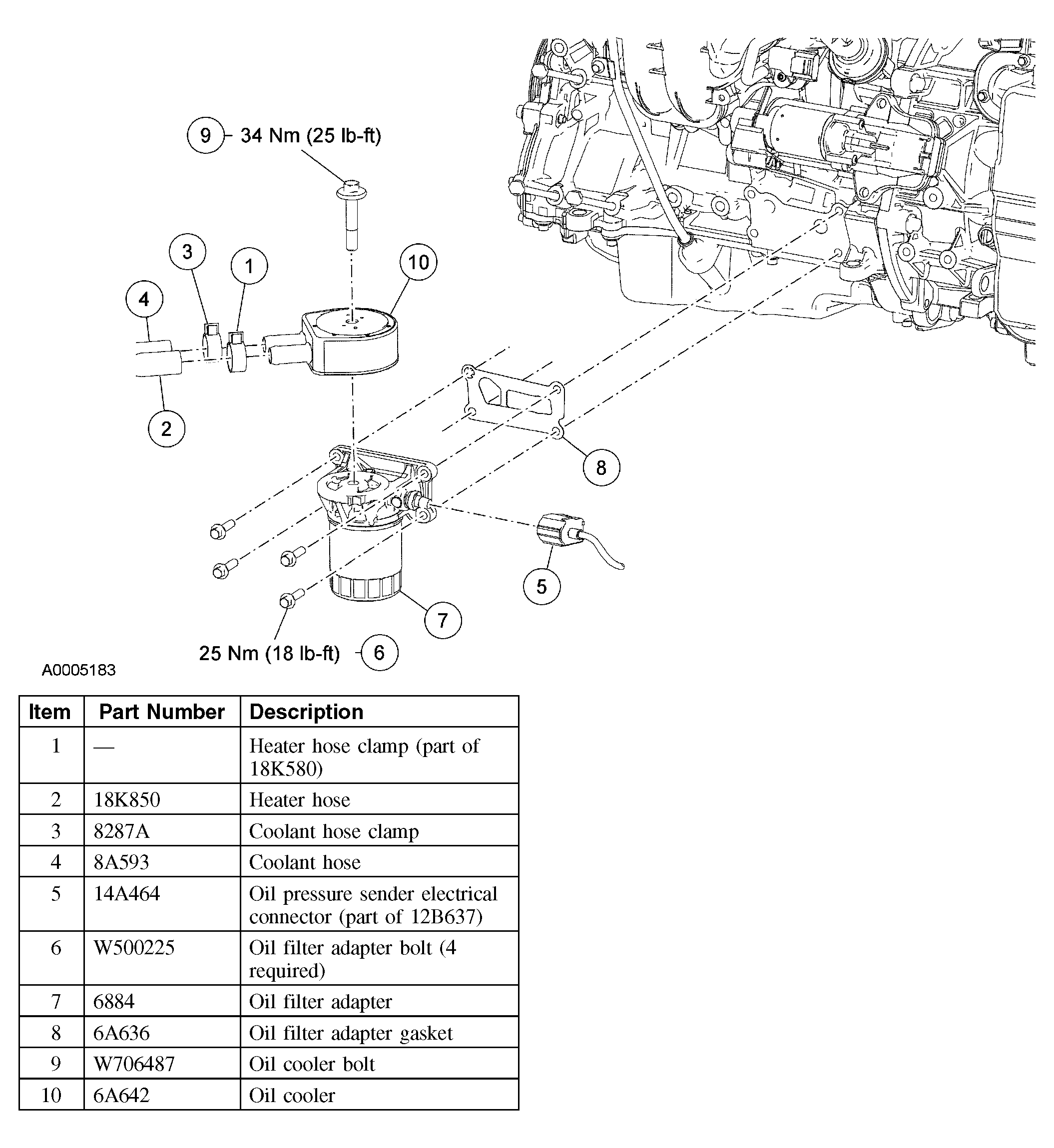

Fig 1: Exploded View Of Oil Cooler
Courtesy of FORD MOTOR CO.
