Lower End Components - Exploded View

WARNING: This page is about a different variant/trim than selected.
Fig 1: Exploded View Of Crankshaft Pulley And Crankshaft Front Oil Seal
G03897692Courtesy of FORD MOTOR CO.

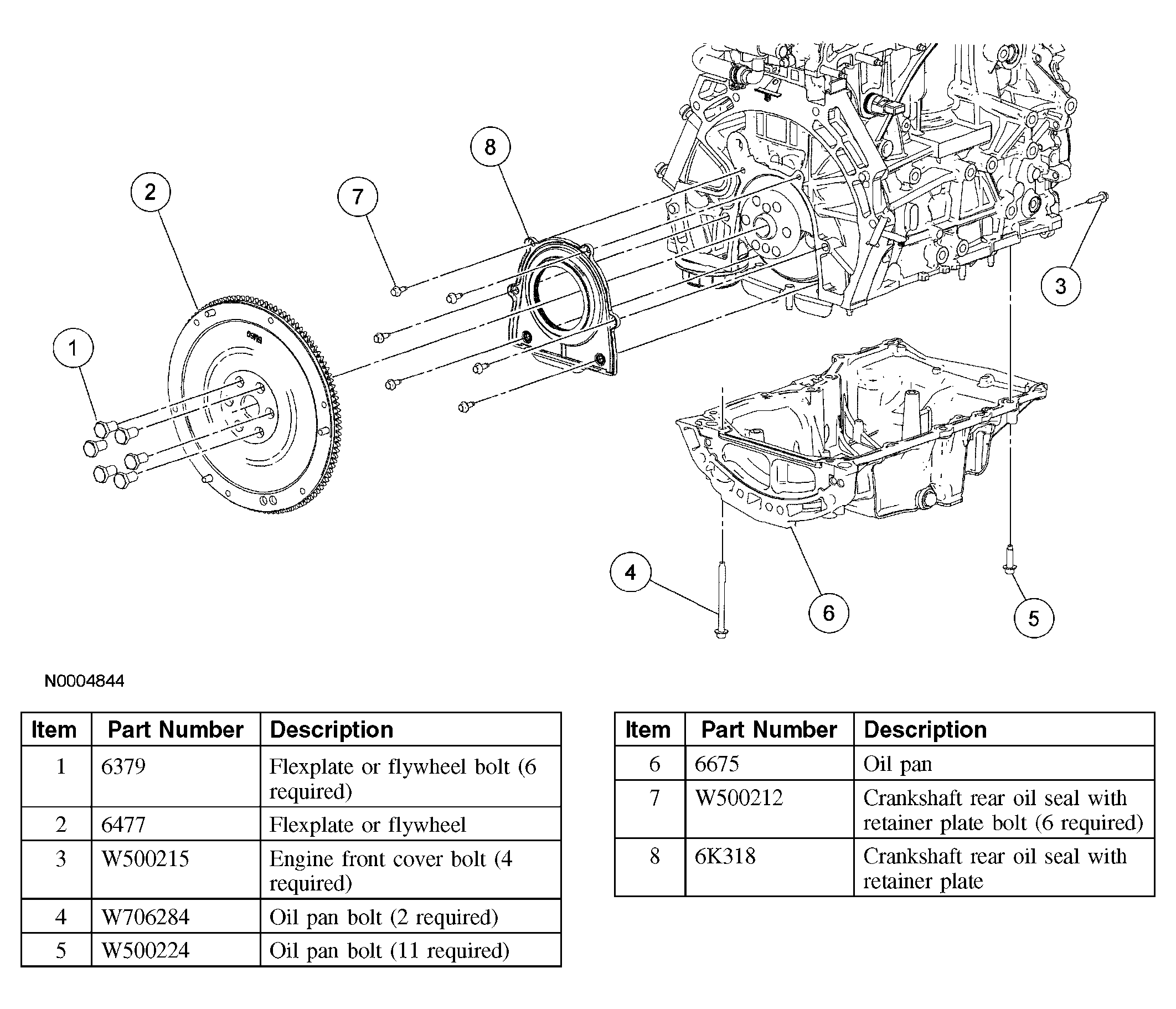

Fig 2: Exploded View Of Flexplate, Flywheel And Crankshaft Rear Oil Seal
G03897693Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate PROCEDURES.
