Cylinder Head: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Motorcraft Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

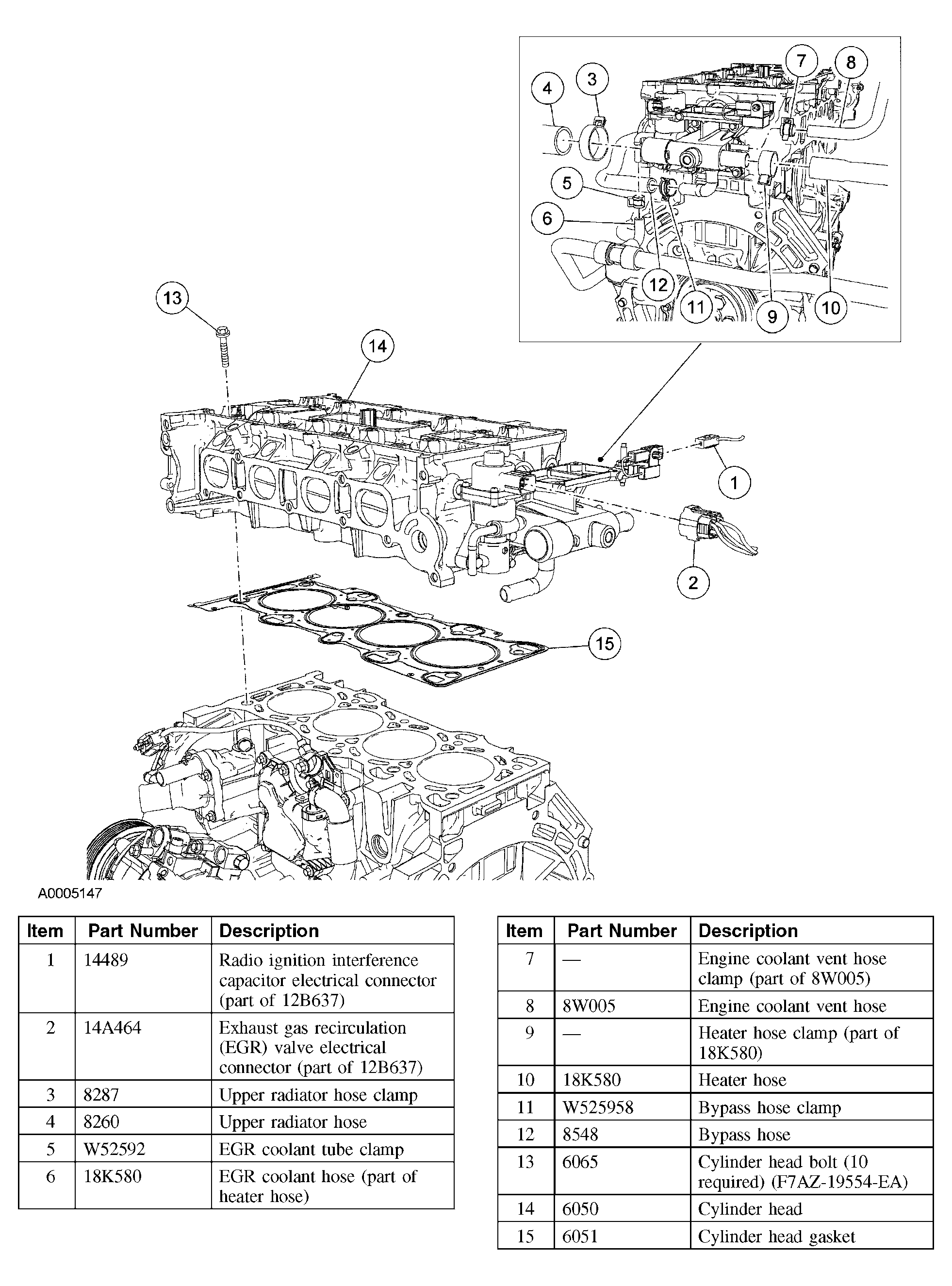

Fig 1: Removing Cylinder Head
G03897826Courtesy of FORD MOTOR CO.
