Special Tool(s): Notes

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOL (CLIMATE CONTROL SYSTEM)

	Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool
	R-134a Manifold Gauge Set 176-R032A or equivalent
	Connector, Refrigerant Pressure Line 412-093 (T94P-19623-E)
	Set, A/C Fittings 412-DS028 (D93L-19703-B) or equivalent
	Refrigerant Leak Detector 216-00001 or equivalent
	Pressure Tester 014-R1072 or equivalent
	73III Automotive Meter 105-R0057 or equivalent

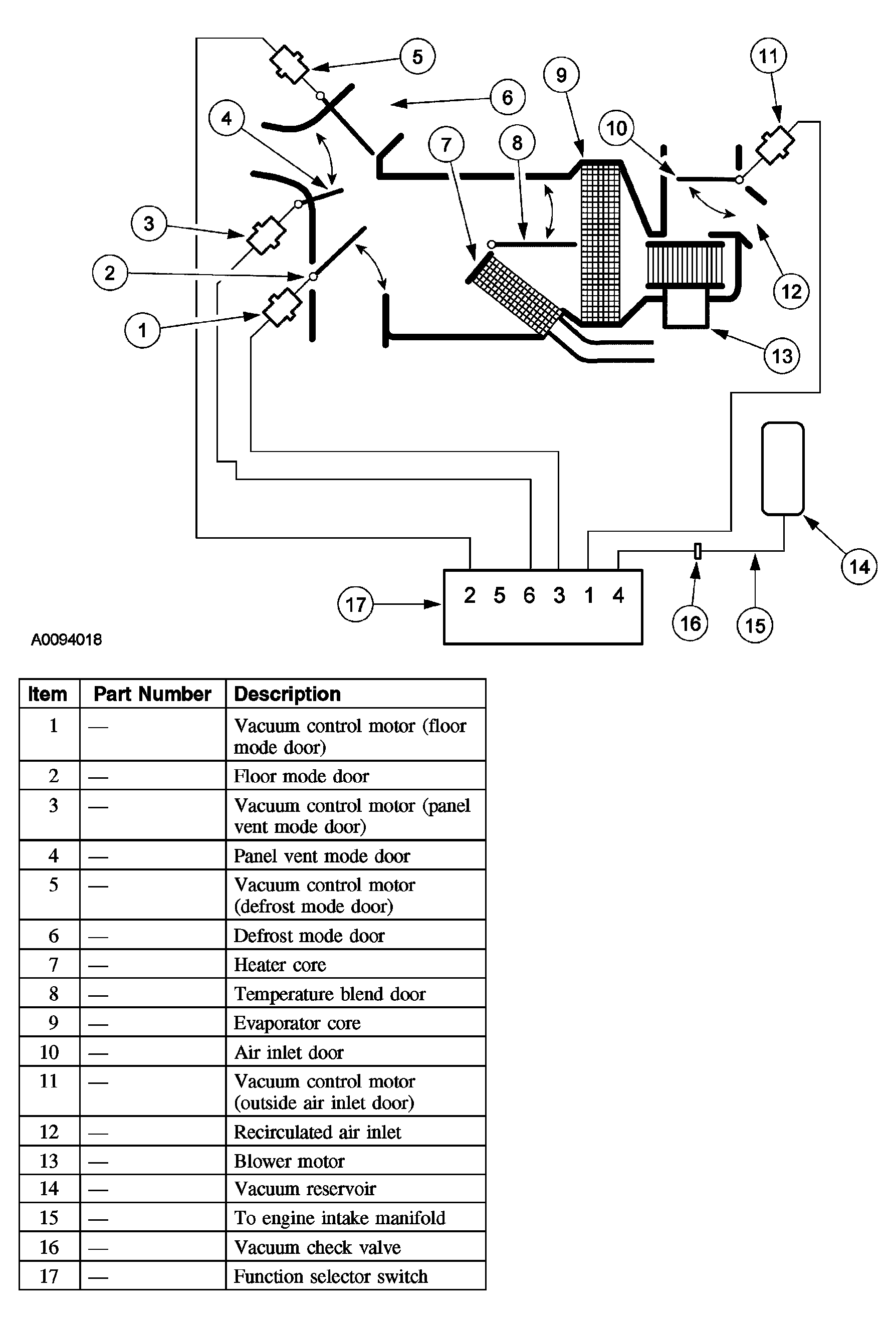

Fig 1: Vacuum Schematic

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Function Selector Switch Vacuum Connectors

Courtesy of FORD MOTOR CO.
