Traction Battery Control Module (TBCM) C4227a

WARNING: This page is about a different variant/trim than selected.

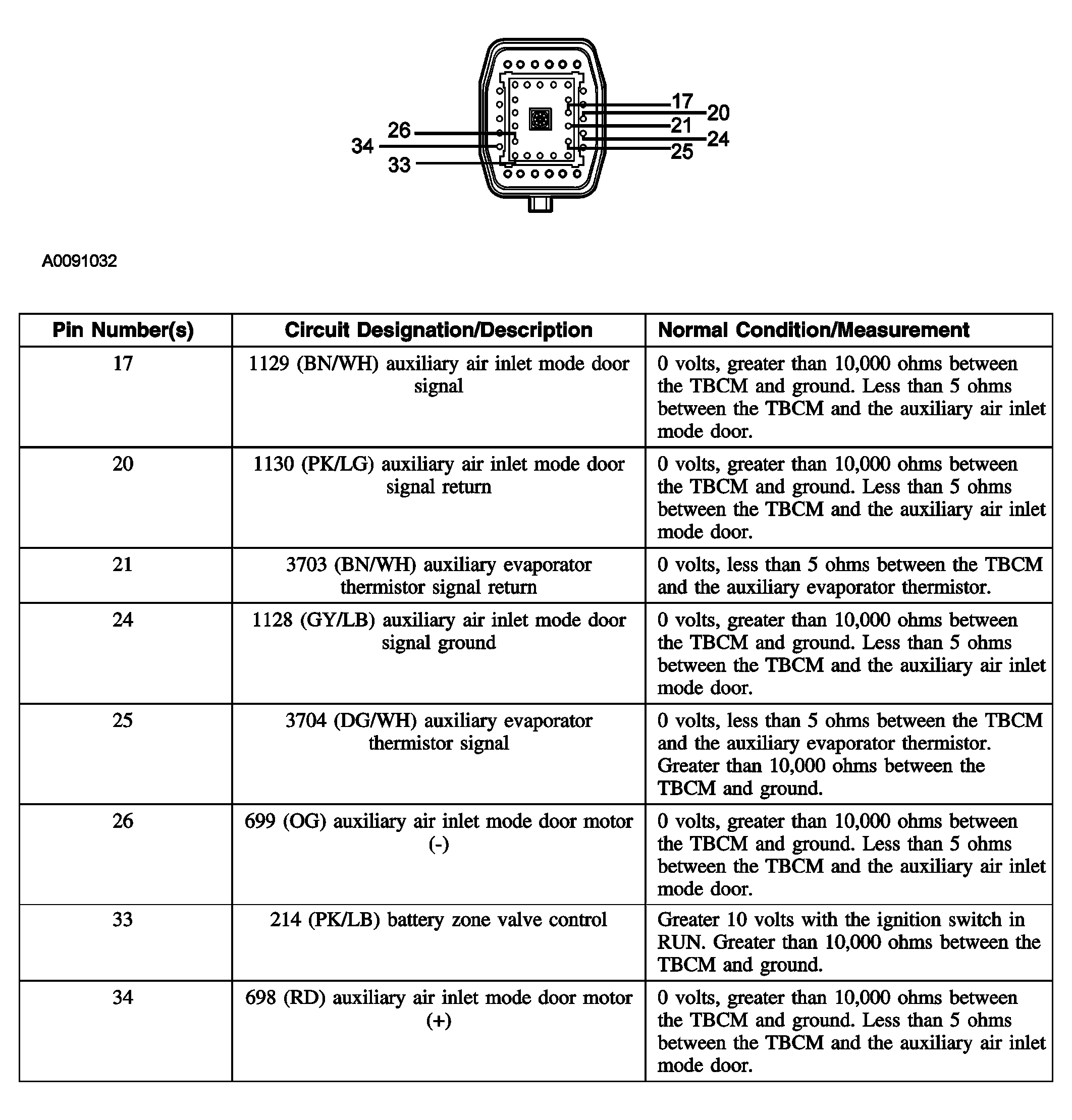

Fig 1: Connector Circuit Reference - Traction Battery Control Module (TBCM) C4227A
G03902327Courtesy of FORD MOTOR CO.
