Section 29 (HVAC Control System - General Information (Hybrid))
>>
Diagnosis And Testing
>>
Climate Control System
>>
Connector Circuit Reference
>>
Climate Control Assembly C294b
Climate Control Assembly C294b
WARNING:
This page is about a different variant/trim than selected.

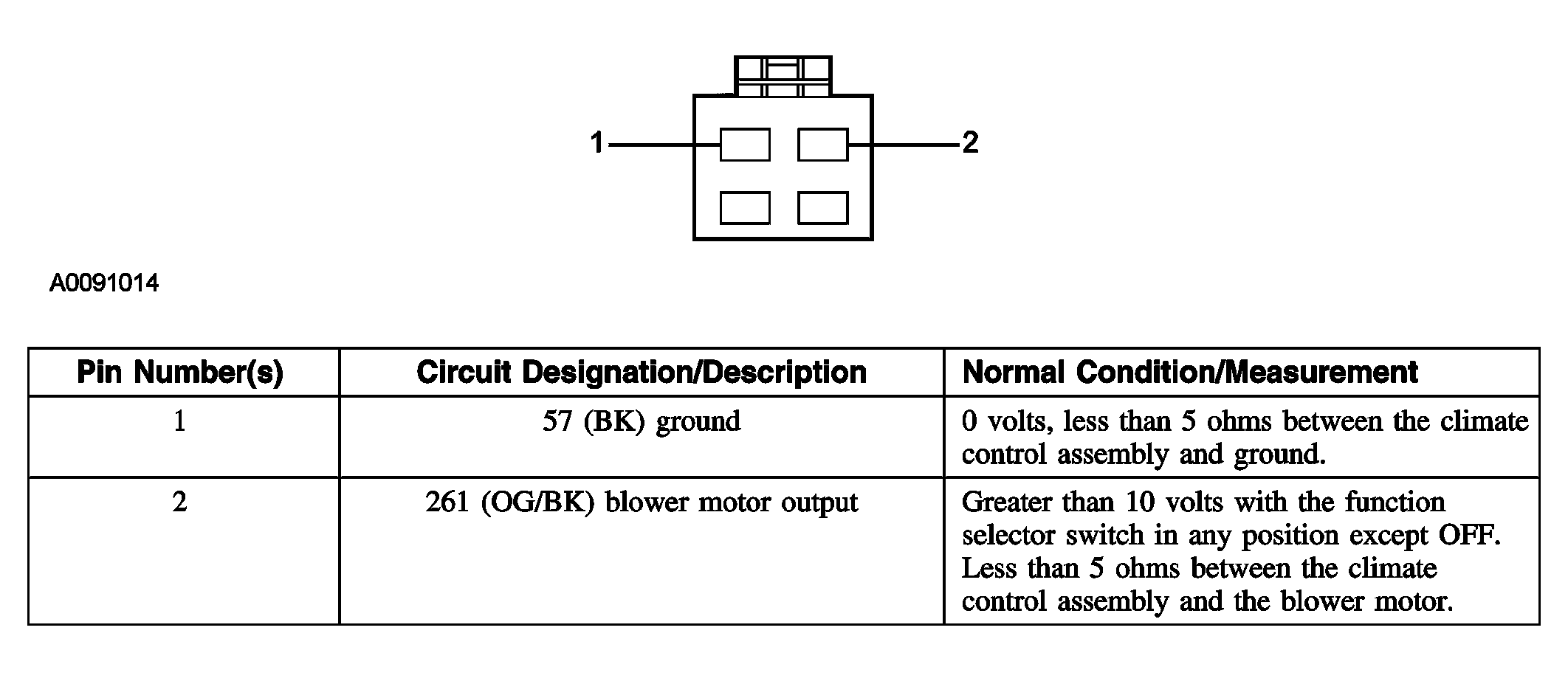

Fig 1: Connector Circuit Reference - Climate Control Assembly C294B
Courtesy of FORD MOTOR CO.
