Removal and Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The transmission range (TR) sensor is part of the transmission selector lever assembly.

Remove the transmission selector lever trim ring.
- Carefully pry up the 4 trim ring clips, then remove the trim ring.

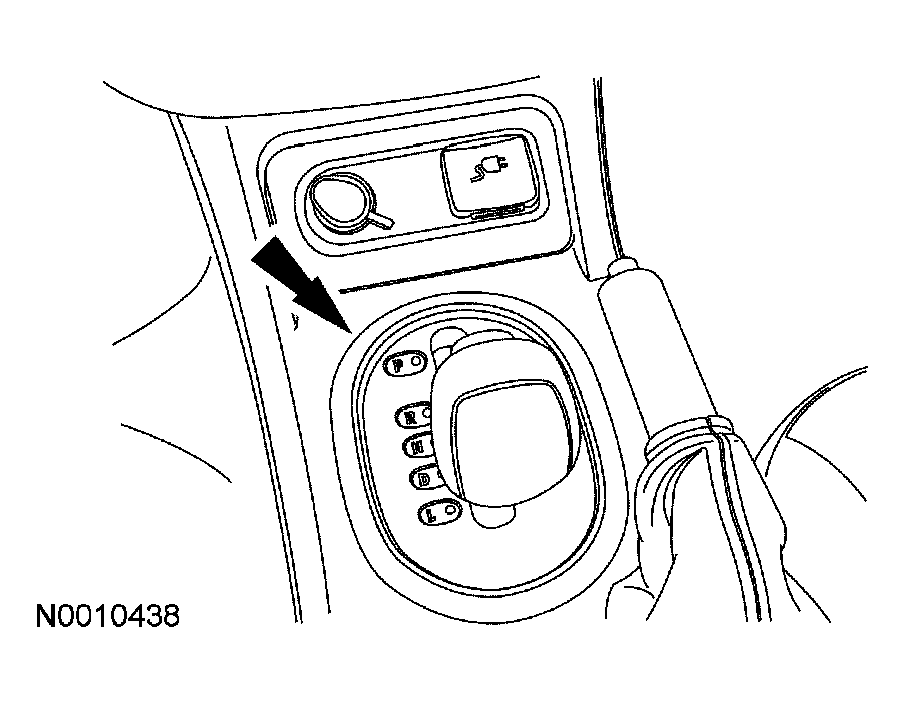

  Fig 1: Removing Trim Ring
  Courtesy of FORD MOTOR CO.
Remove the floor console finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

CAUTION: Before installation, make sure the transmission selector lever is in the DRIVE position with the ignition in the OFF position.

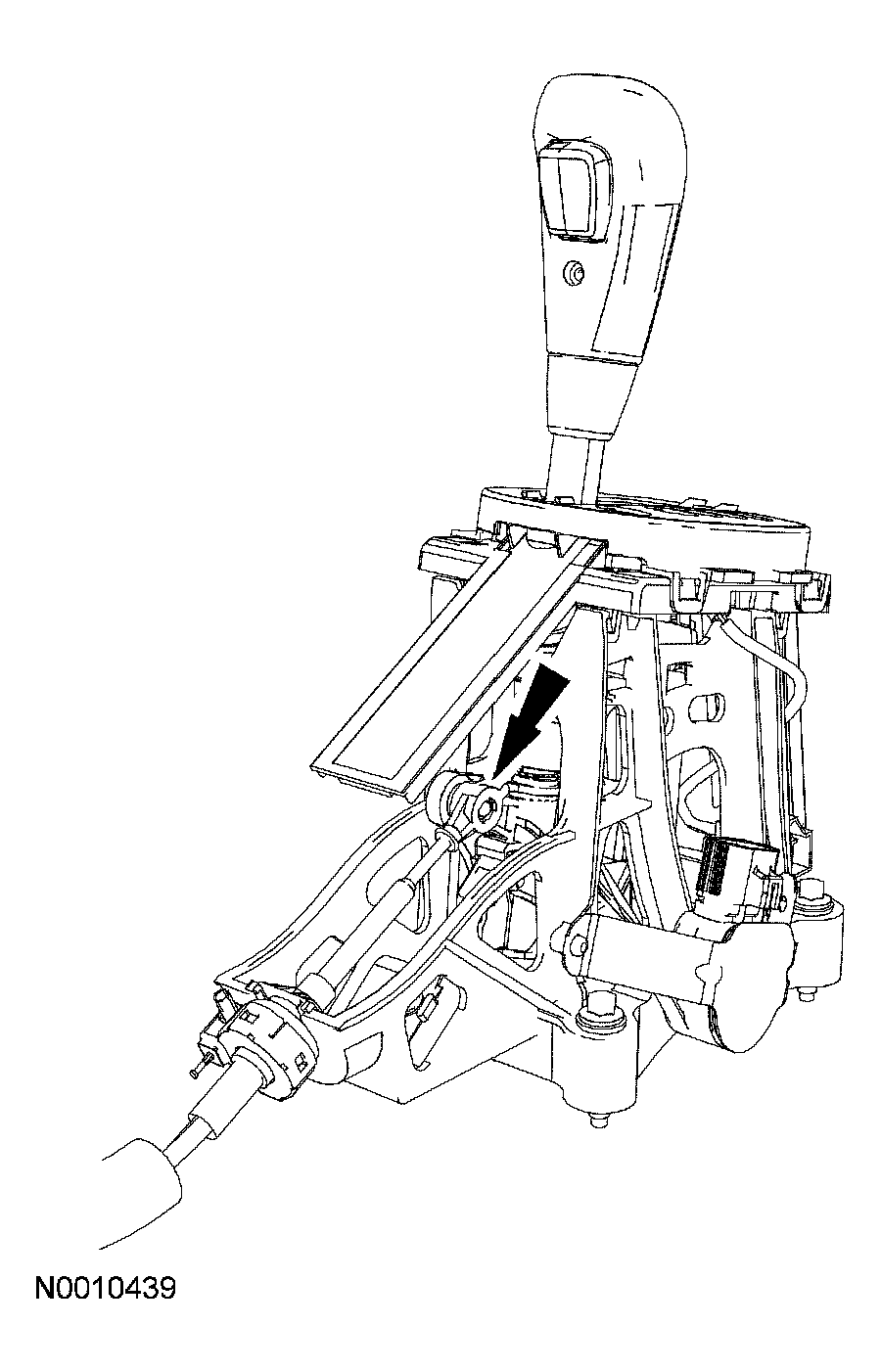

Fig 2: Disconnecting Shift Cable End From Transmission Selector Lever Ball Stud

Courtesy of FORD MOTOR CO.

Disconnect the shift cable end from the transmission selector lever ball stud.
Release the cable retainer from the transmission selector lever assembly.

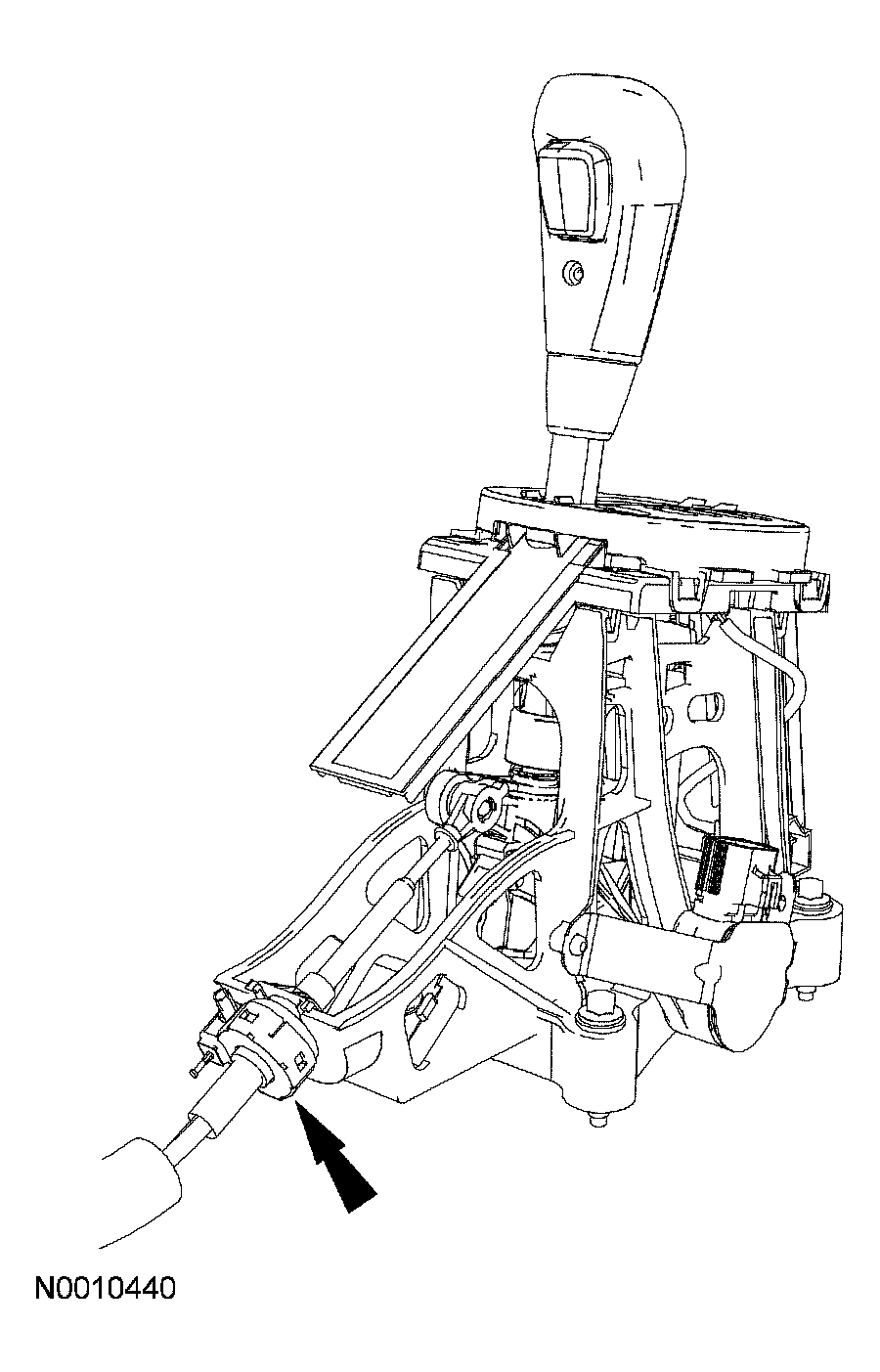

Fig 3: Releasing Cable Retainer From Transmission Selector Lever Assembly
Courtesy of FORD MOTOR CO.
Disconnect the 2 electrical connectors.
Remove the 4 bolts.
- To install, tighten to 25 Nm (18 lb-ft).

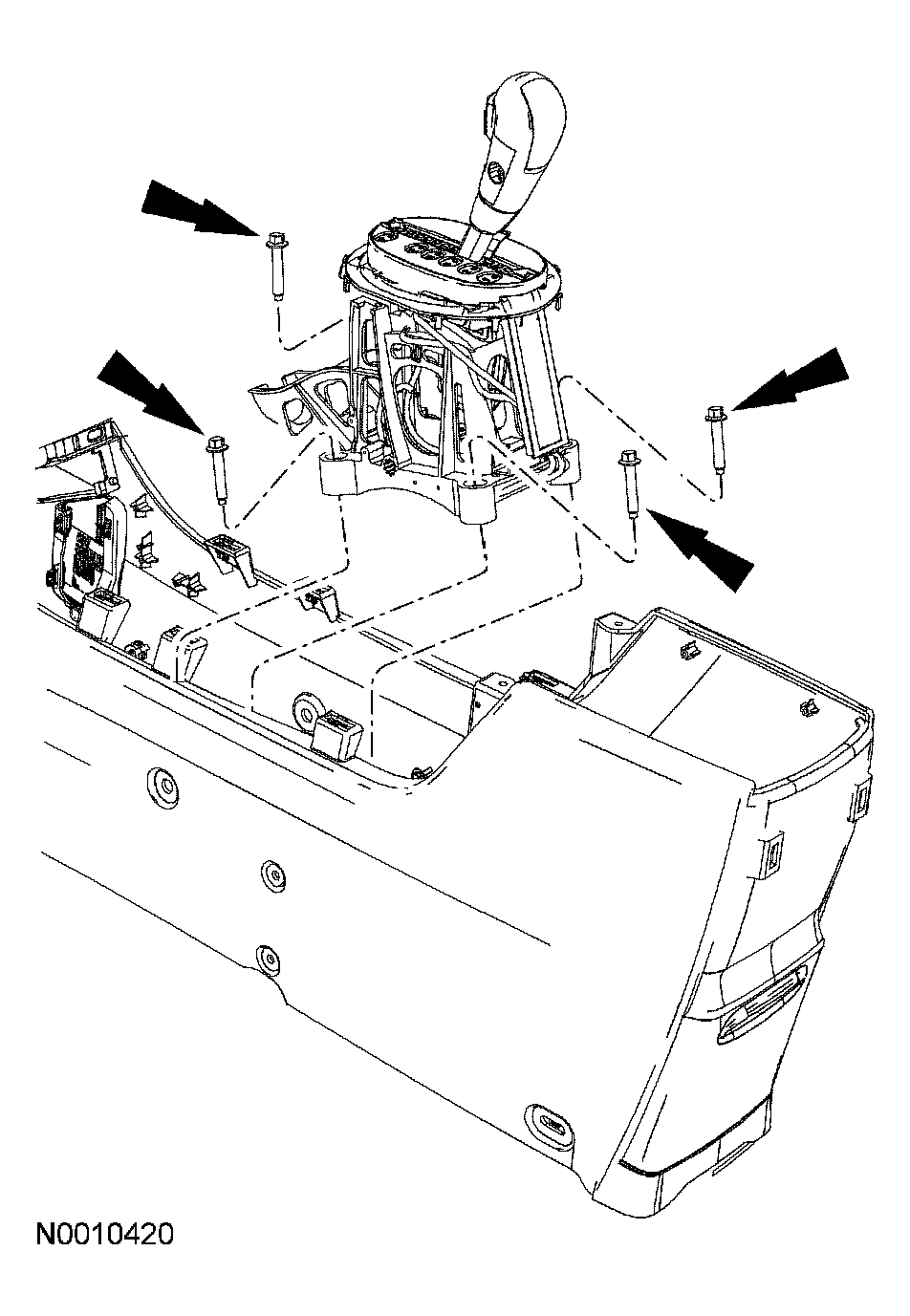

  Fig 4: Disconnecting Electrical Connectors
  Courtesy of FORD MOTOR CO.
Remove the transmission selector lever assembly.
To install, reverse the removal procedure.
