Selector Lever Knob: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the floor shift selector lever in the (D) position.

Fig 1: Placing Floor Shift Selector Lever in (D) Position
Courtesy of FORD MOTOR CO.
Gently pry up to remove the upper shift lever trim ring.

Fig 2: Identifying Upper Shift Lever Trim Ring
Courtesy of FORD MOTOR CO.
Remove the top finish panel.

Fig 3: Removing/Installing Top Finish Panel
Courtesy of FORD MOTOR CO.
Remove the set screw.

Fig 4: Locating Set Screw
Courtesy of FORD MOTOR CO.

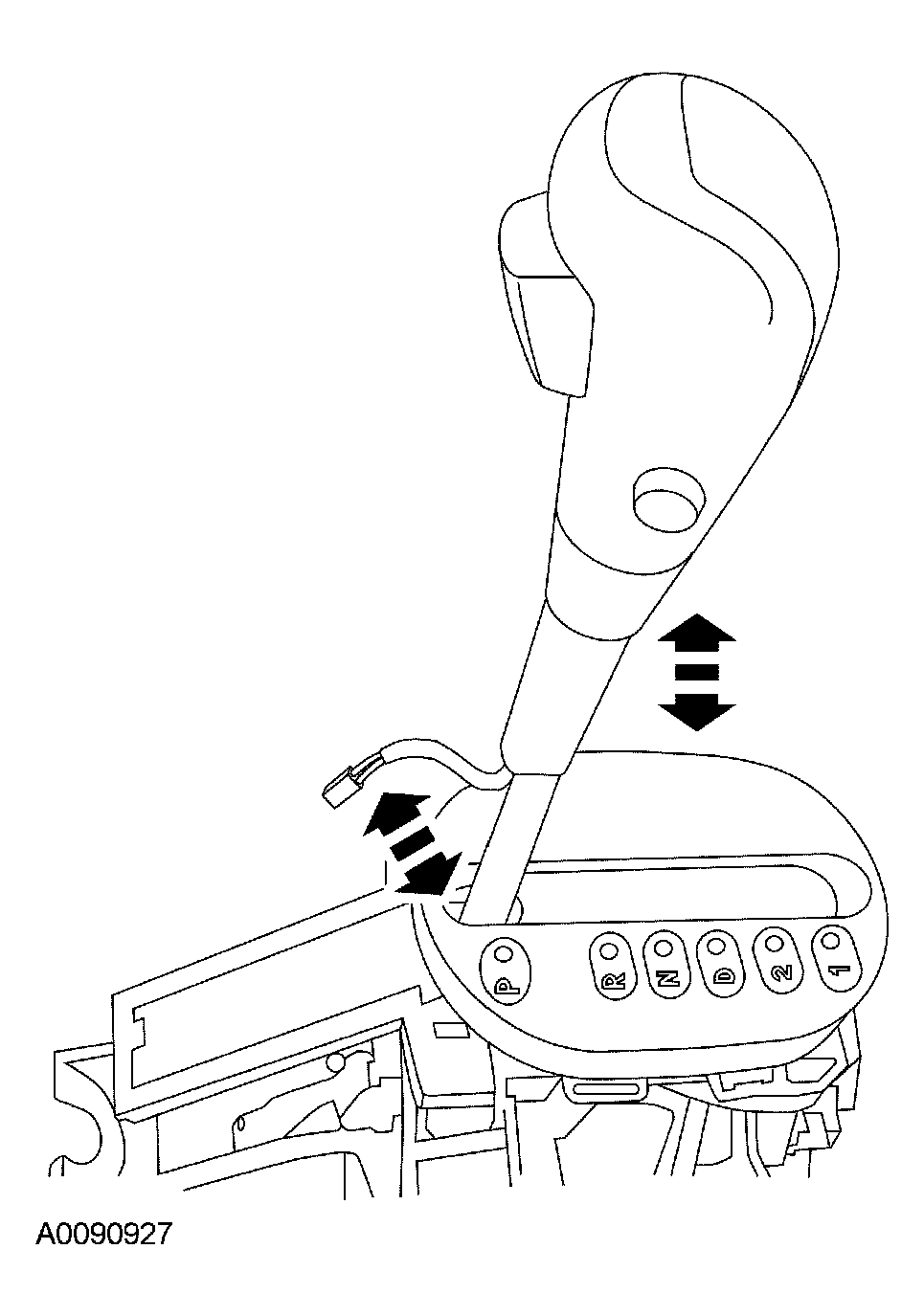

Remove the knob and wiring by pulling straight up on the knob.

Fig 5: Removing Knob And Wiring
Courtesy of FORD MOTOR CO.
Remove and discard the shifter straw by pulling it straight up.

Fig 6: Removing And Discard Shifter Straw
Courtesy of FORD MOTOR CO.
