Selector Lever Bezel: Removal

WARNING: This page is about a different variant/trim than selected.

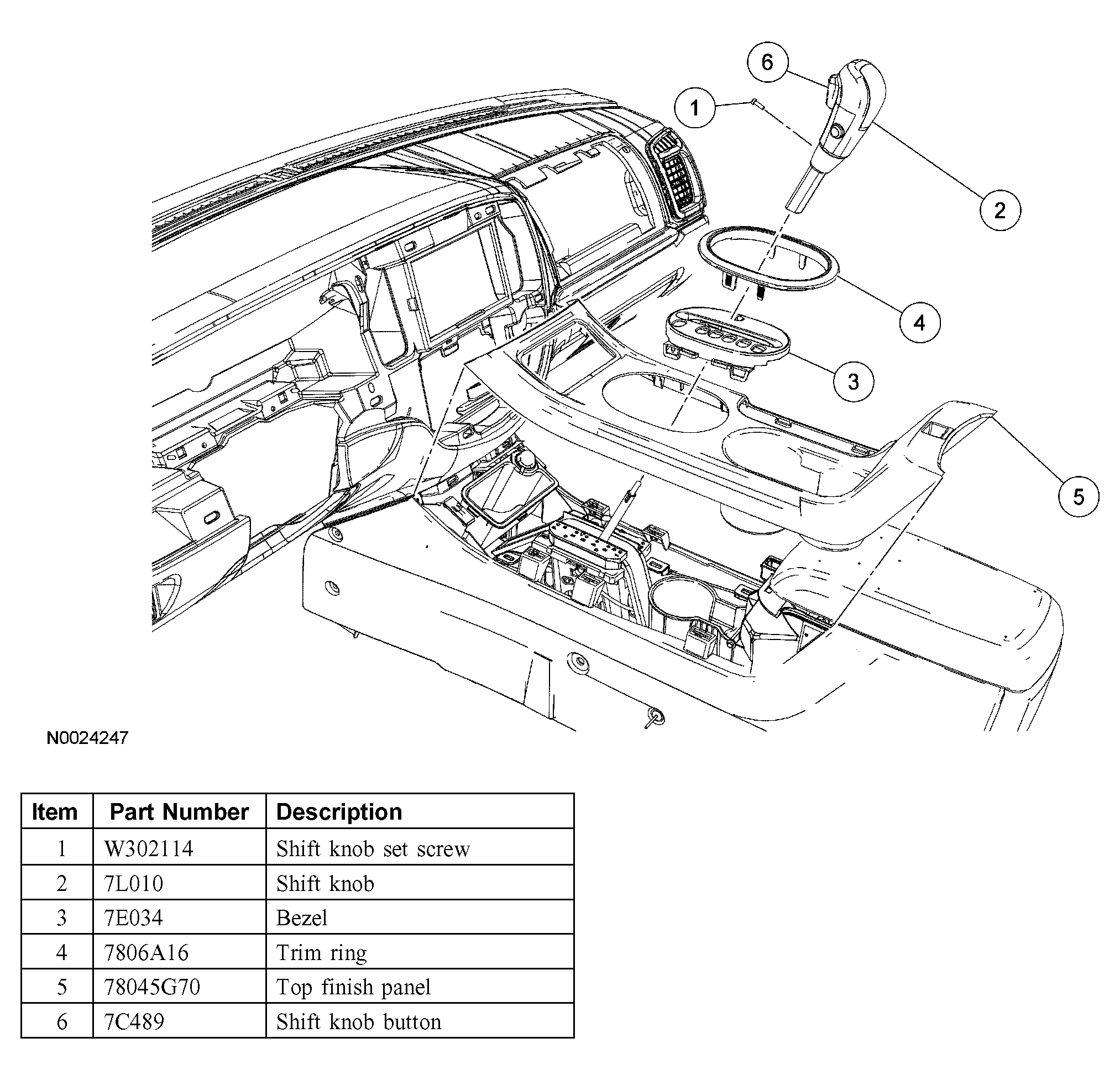

Fig 1: Removing/Installing Selector Lever Bezel

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the floor shift selector lever in the (D) position.

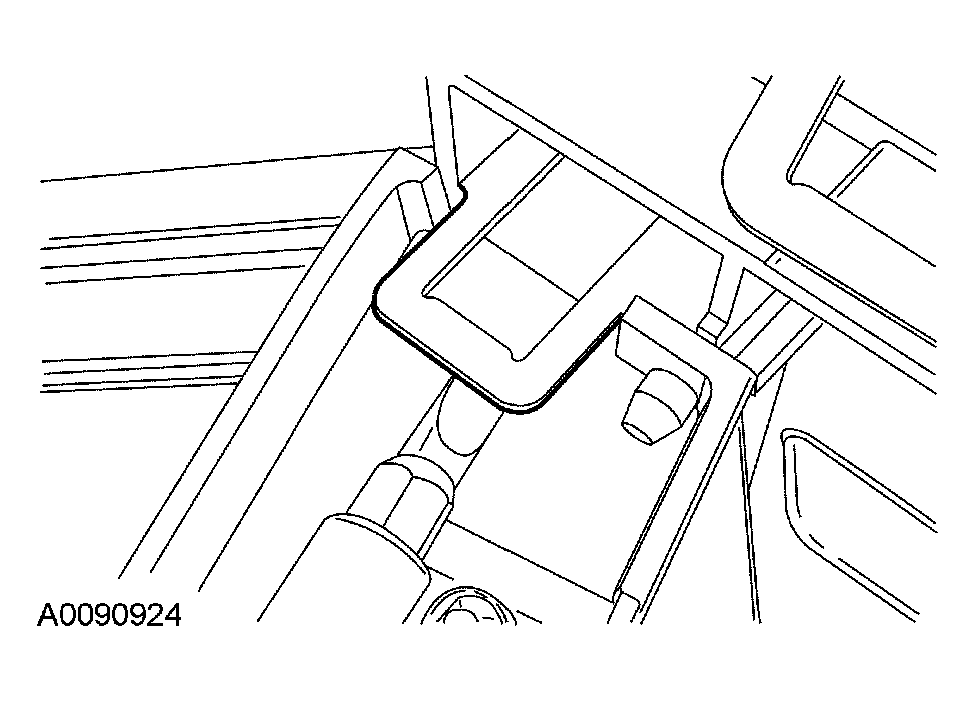

Fig 2: Placing Floor Shift Selector Lever in (D) Position
Courtesy of FORD MOTOR CO.
Gently pry up to remove the upper shift lever trim ring.

Fig 3: Identifying Upper Shift Lever Trim Ring
Courtesy of FORD MOTOR CO.
Remove the top finish panel.

Fig 4: Removing/Installing Top Finish Panel
Courtesy of FORD MOTOR CO.
Remove the set screw.

Fig 5: Locating Set Screw
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the plastic straw inside of the lever does not come out.

Fig 6: Removing Knob And Wiring By Pulling Straight Up On Knob

Courtesy of FORD MOTOR CO.

Remove the knob and wiring by pulling straight up on the knob.
Carefully pry up the 4 bezel clips and remove the bezel.

Fig 7: Removing Bezel
Courtesy of FORD MOTOR CO.
Remove the gearshift bezel.

Fig 8: Removing Gearshift Bezel
Courtesy of FORD MOTOR CO.
