Fuel Tank and Filler Pipe - Exploded View

WARNING: This page is about a different variant/trim than selected.

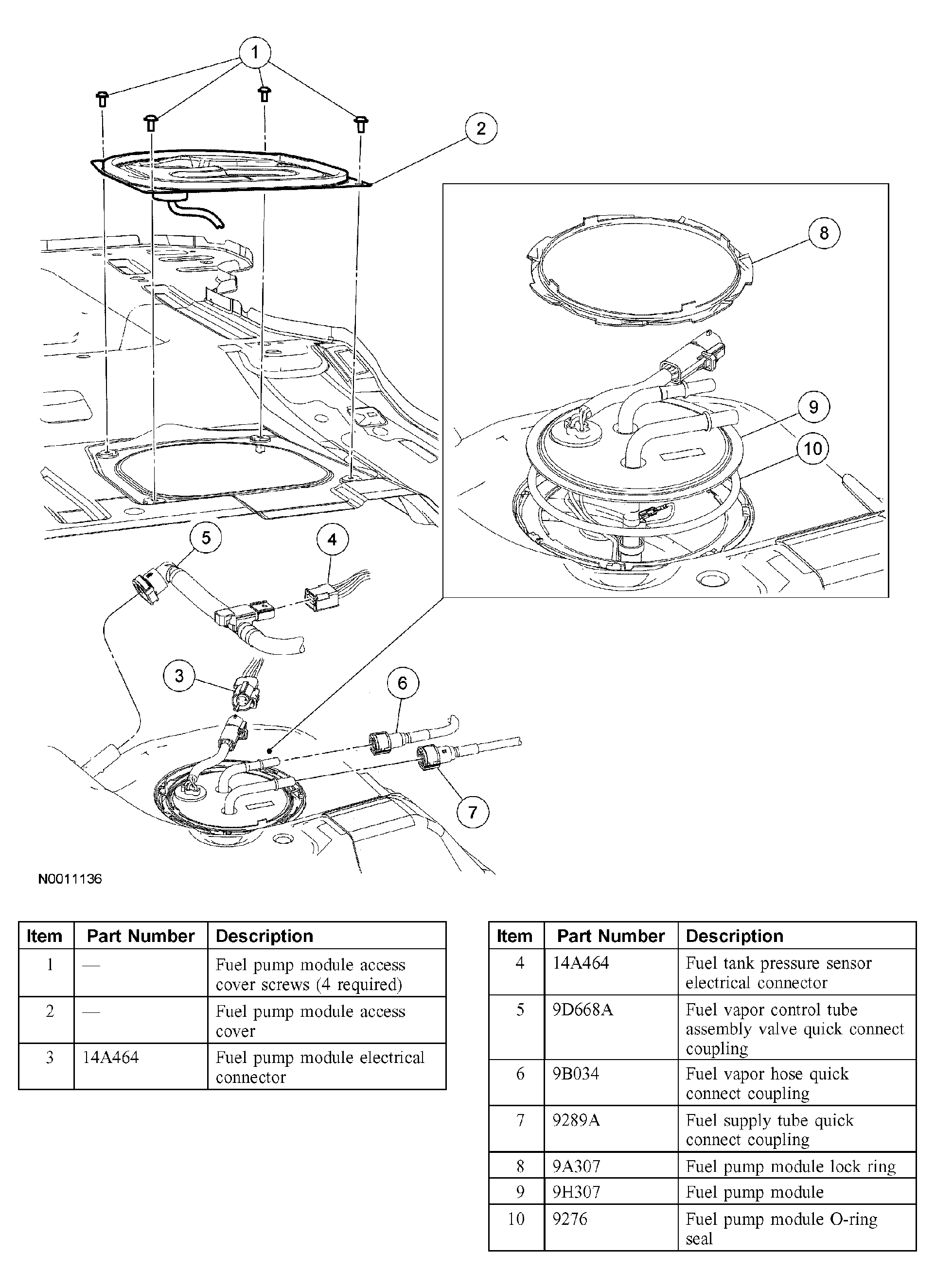

Fig 1: Fuel Tank And Filler Pipe - Exploded View (1 Of 2)
G03902042Courtesy of FORD MOTOR CO.

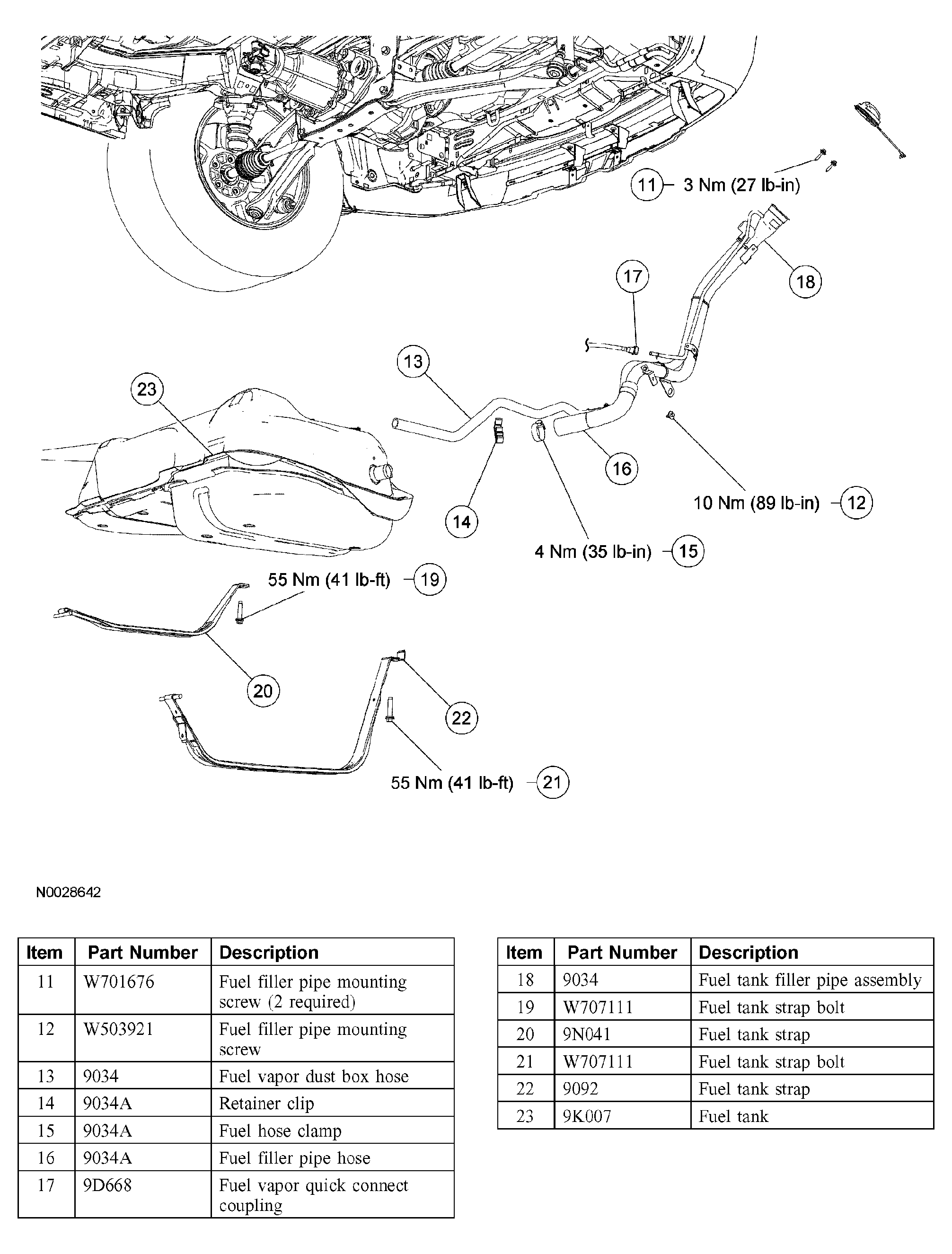

Fig 2: Fuel Tank And Filler Pipe And Torque Specifications - Exploded View (2 Of 2)
G03902043Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
