Fuel Lines: Notes

WARNING: This page is about a different variant/trim than selected.

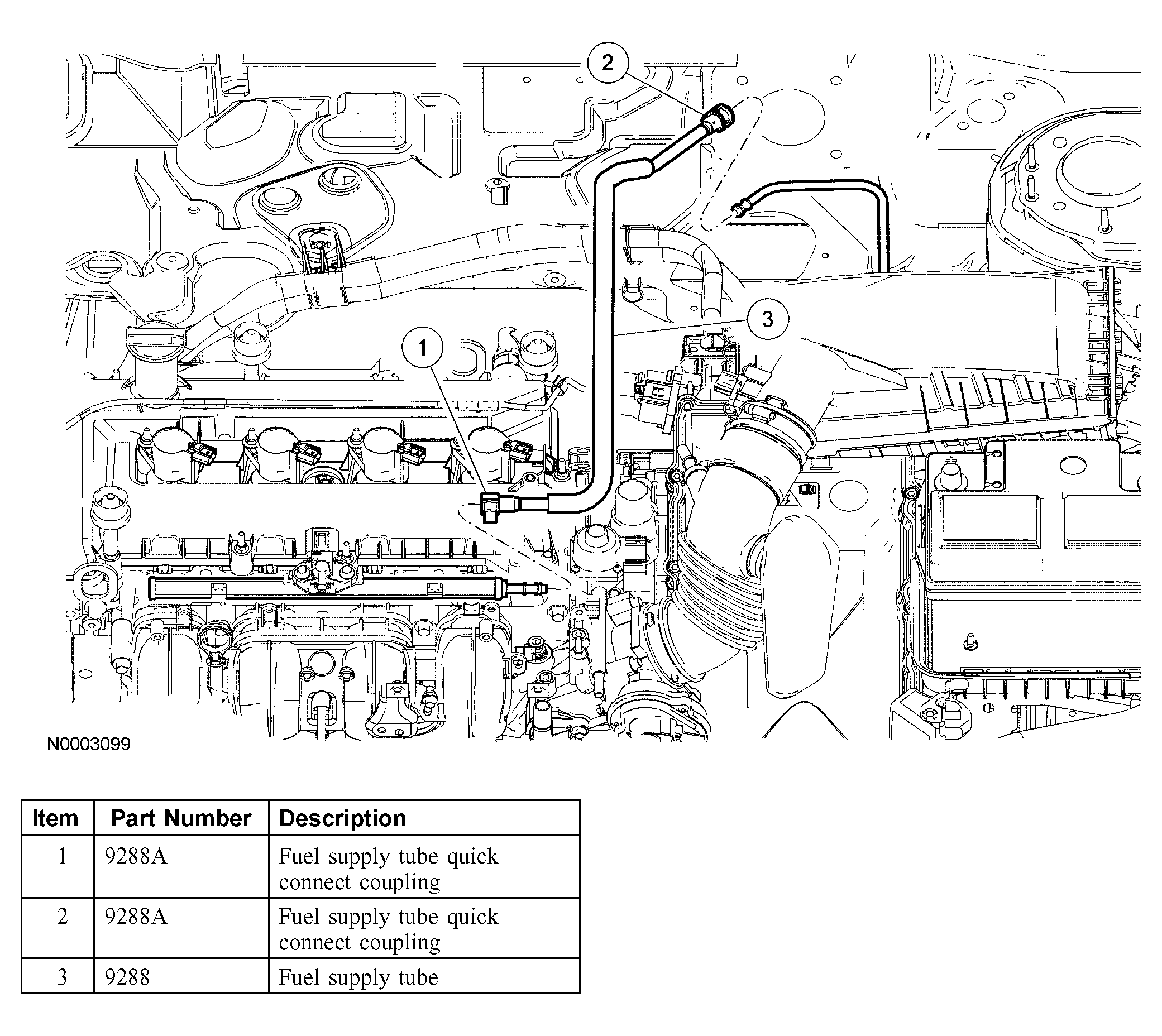

Fig 1: Identifying Fuel Lines (1 Of 4)
G03902056Courtesy of FORD MOTOR CO.

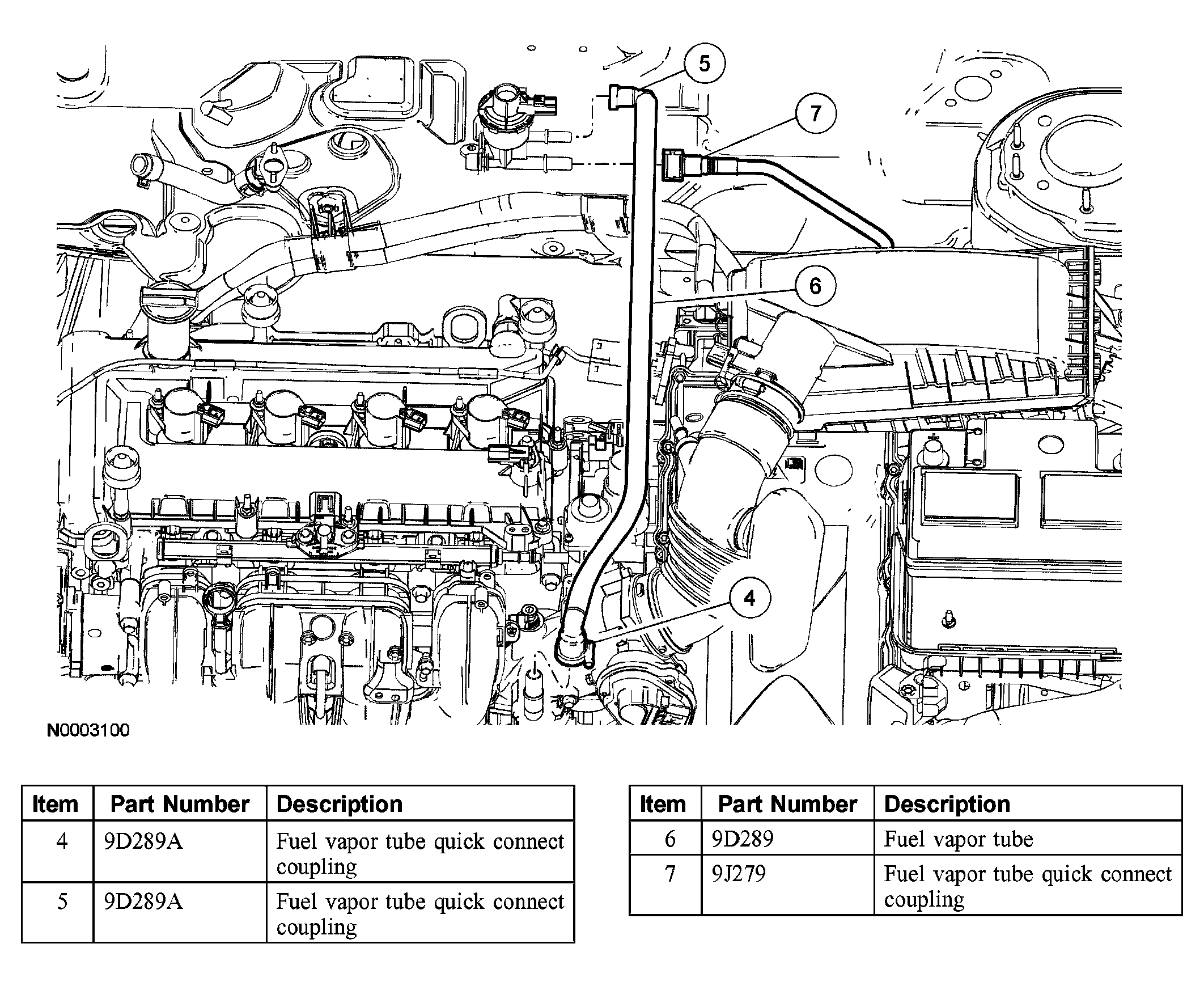

Fig 2: Identifying Fuel Lines (2 Of 4)
G03902057Courtesy of FORD MOTOR CO.

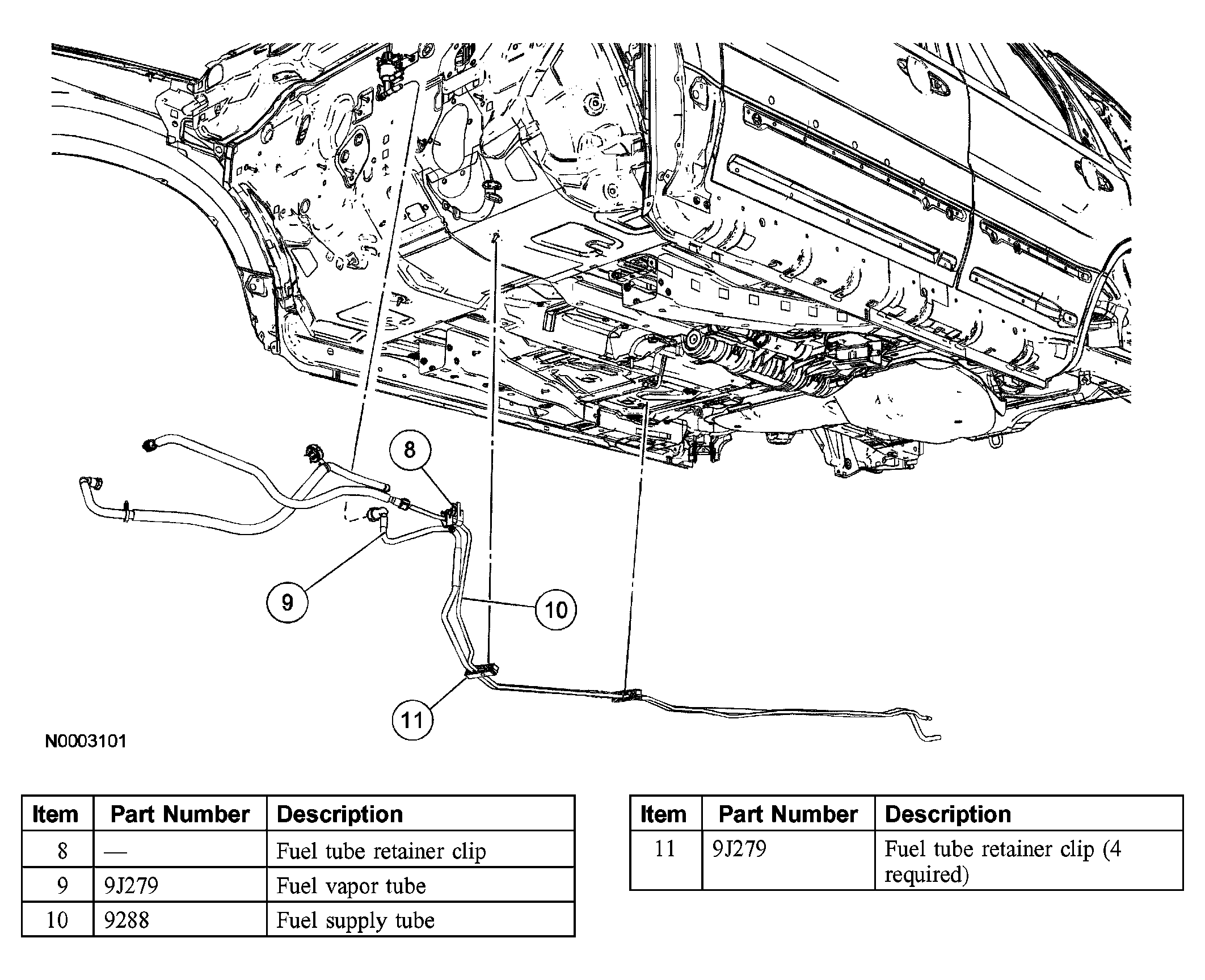

Fig 3: Identifying Fuel Lines (3 Of 4)
G03902058Courtesy of FORD MOTOR CO.

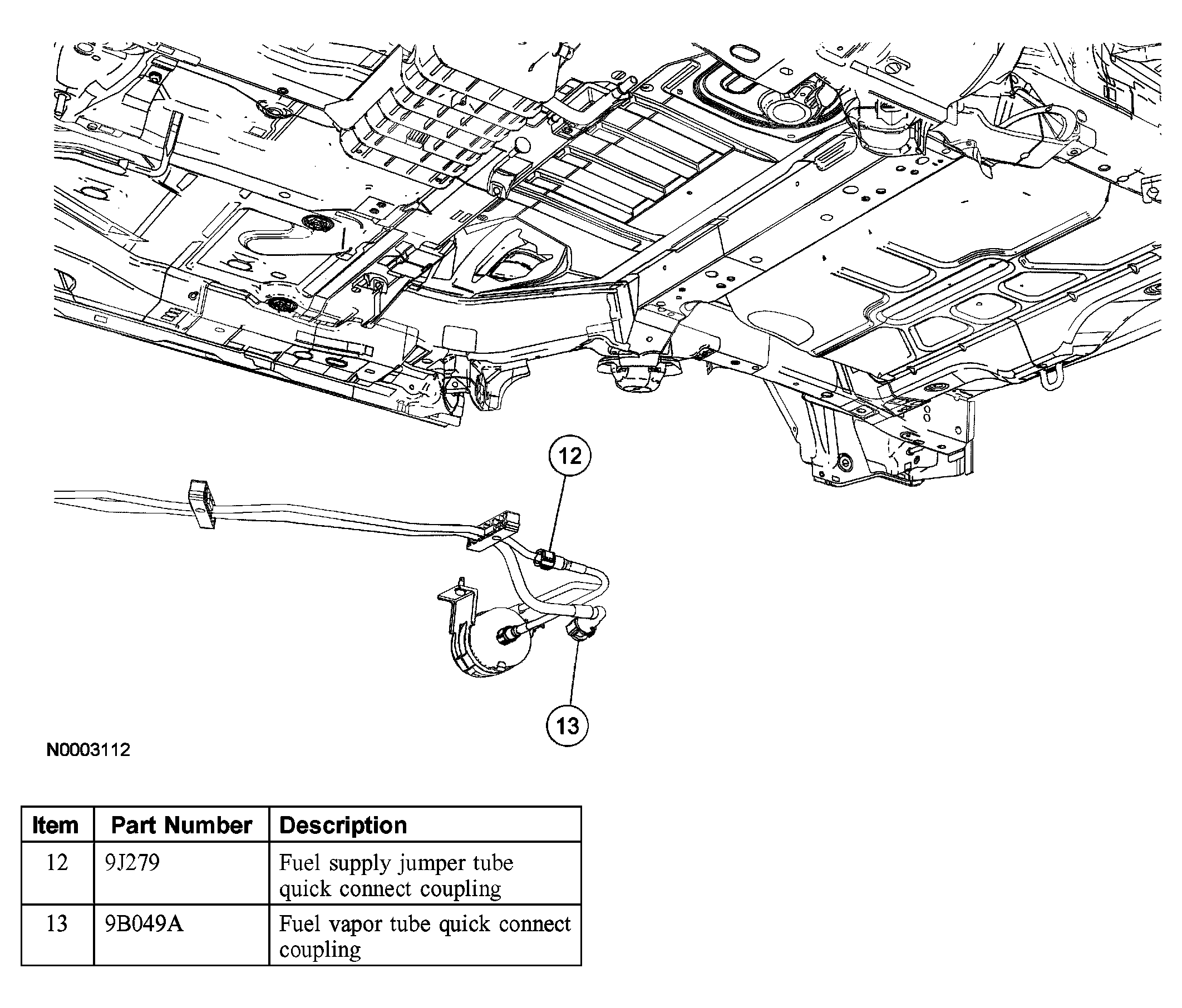

Fig 4: Identifying Fuel Lines (4 Of 4)
G03902059Courtesy of FORD MOTOR CO.
