Motor Electronics Pump

WARNING: This page is about a different variant/trim than selected.

Drain the motor electronics cooling system (MECS). For additional information, refer to MOTOR ELECTRONICS COOLING SYSTEM DRAINING AND FILLING .

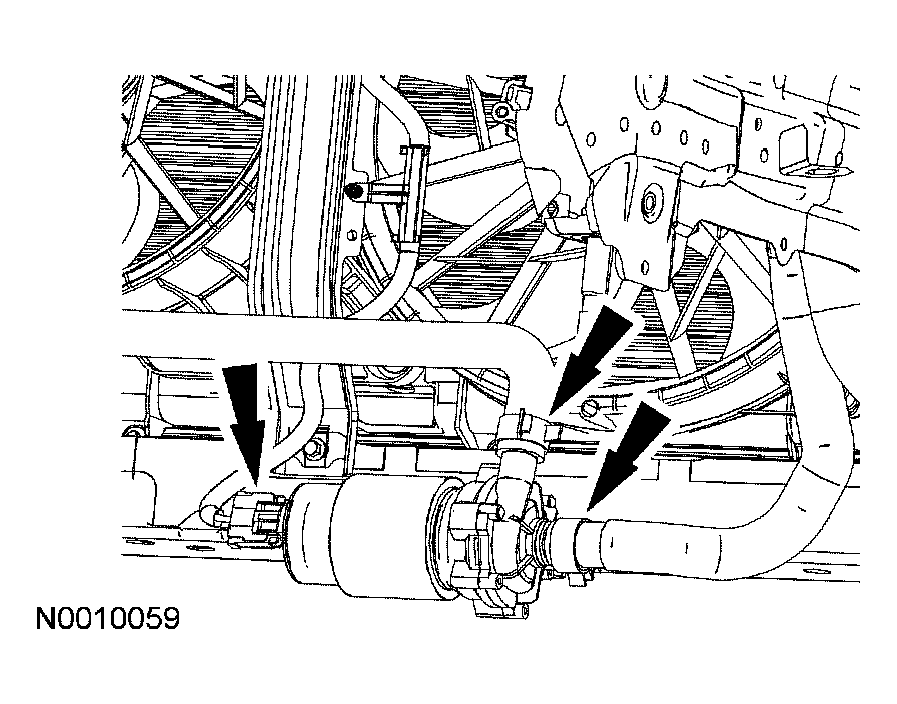

Disconnect the inlet and outlet hoses.
- Disconnect the harness connector.

  Fig 1: Disconnecting Harness Connector
  Courtesy of FORD MOTOR CO.
Remove the bolts.
- To install, tighten to 20 Nm (15 lb-ft).

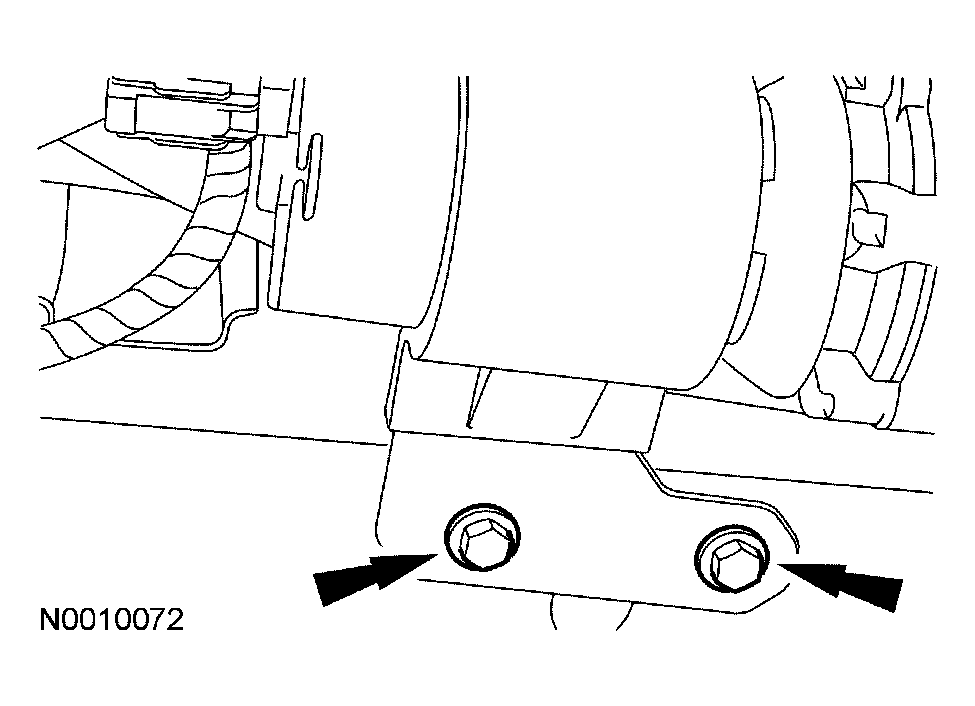

  Fig 2: Removing Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
