Motor Electronics Cooler

WARNING: This page is about a different variant/trim than selected.

Drain the motor electronics cooling system (MECS). For additional information, refer to MOTOR ELECTRONICS COOLING SYSTEM DRAINING AND FILLING .
Remove the front bumper cover. For additional information, refer to BUMPERS .
Loosen the hose clamp and disconnect the inlet hose.

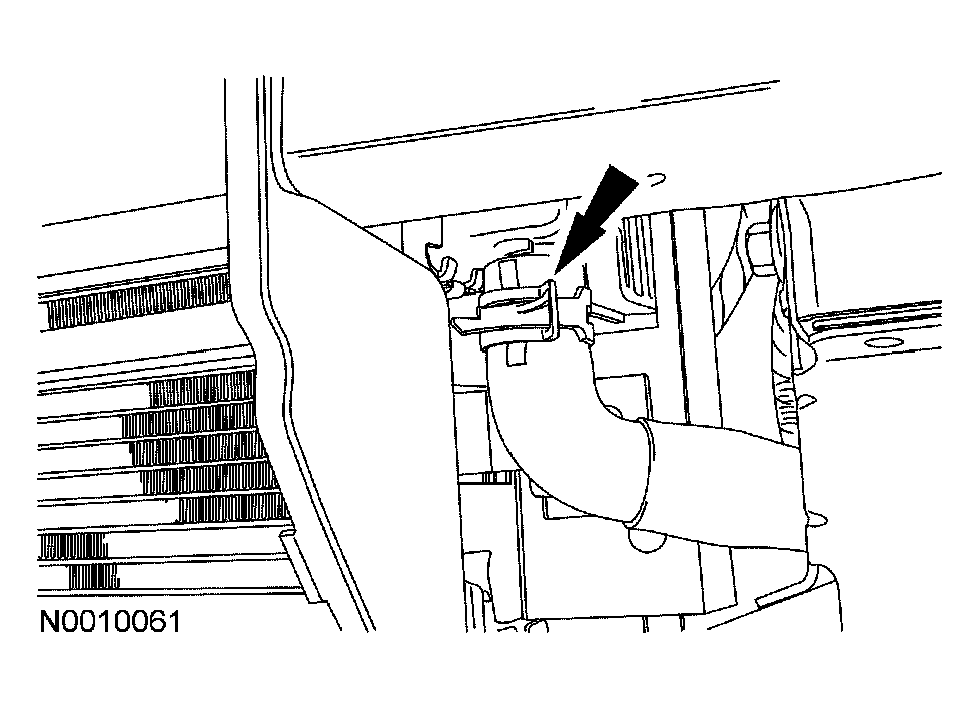

Fig 1: Loosening Hose Clamp
Courtesy of FORD MOTOR CO.
Loosen the hose clamp and disconnect the outlet hose.

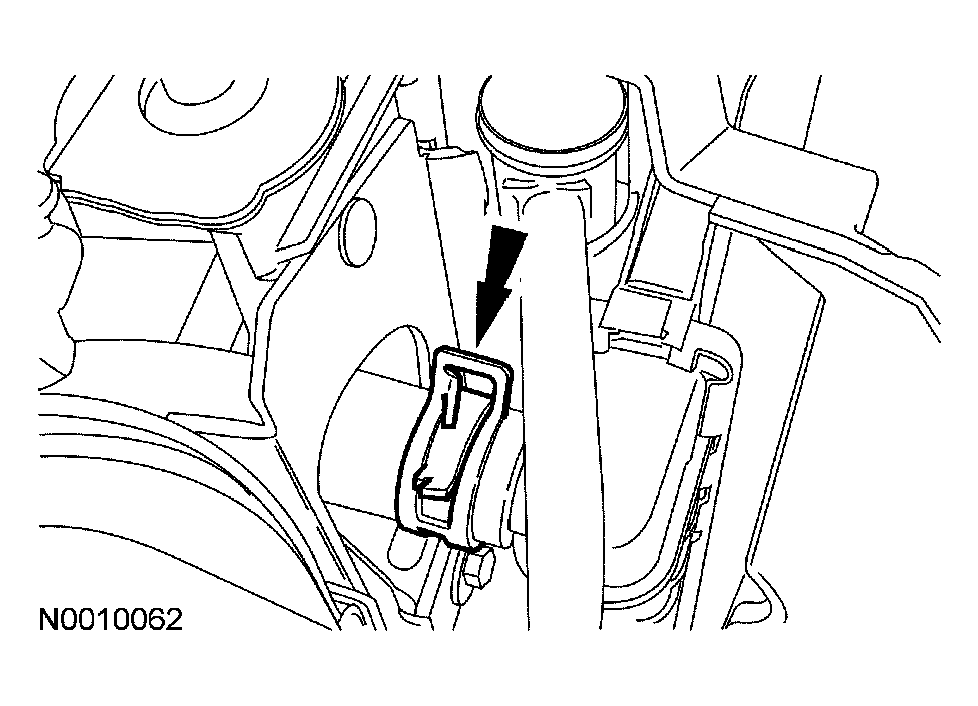

Fig 2: Disconnecting Outlet Hose
Courtesy of FORD MOTOR CO.

NOTE: RH shown, LH similar.

Remove the motor electronics (M/E) cooler bolts.
- To install, tighten to 6 Nm (53 lb-in).

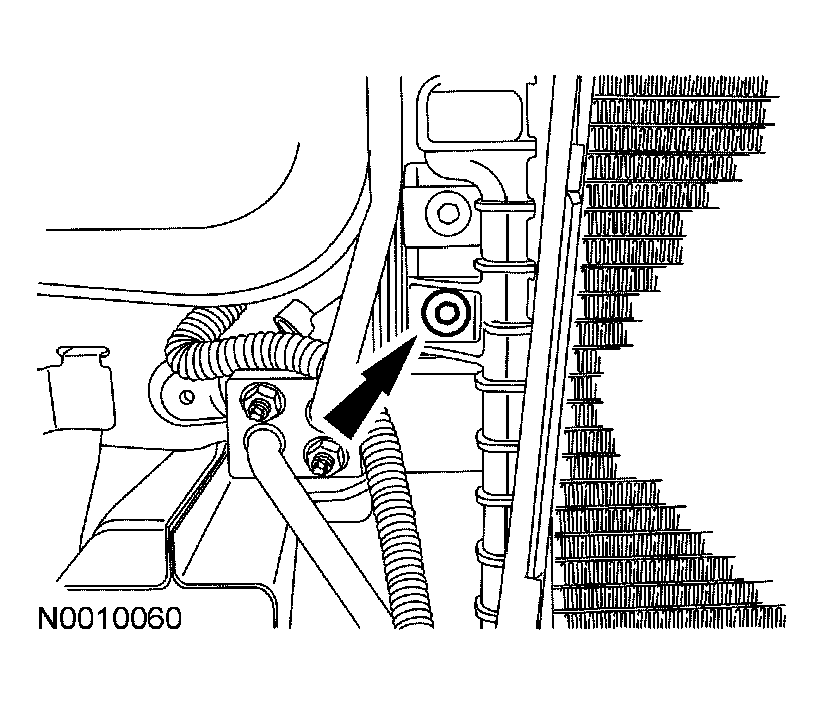

  Fig 3: Removing Motor Electronics (M/E) Cooler Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
