Gearshift Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

Set the parking brake.
Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disengage the secondary shift cable lock by sliding it away from the shifter ball stud.

Fig 1: Removing The Floor Console
Courtesy of FORD MOTOR CO.

NOTE: If the primary shift cable lock is difficult to slide out, disconnect the shift cable from the ball stud, push the primary lock from the rear, and reattach the shift cable to the ball stud.

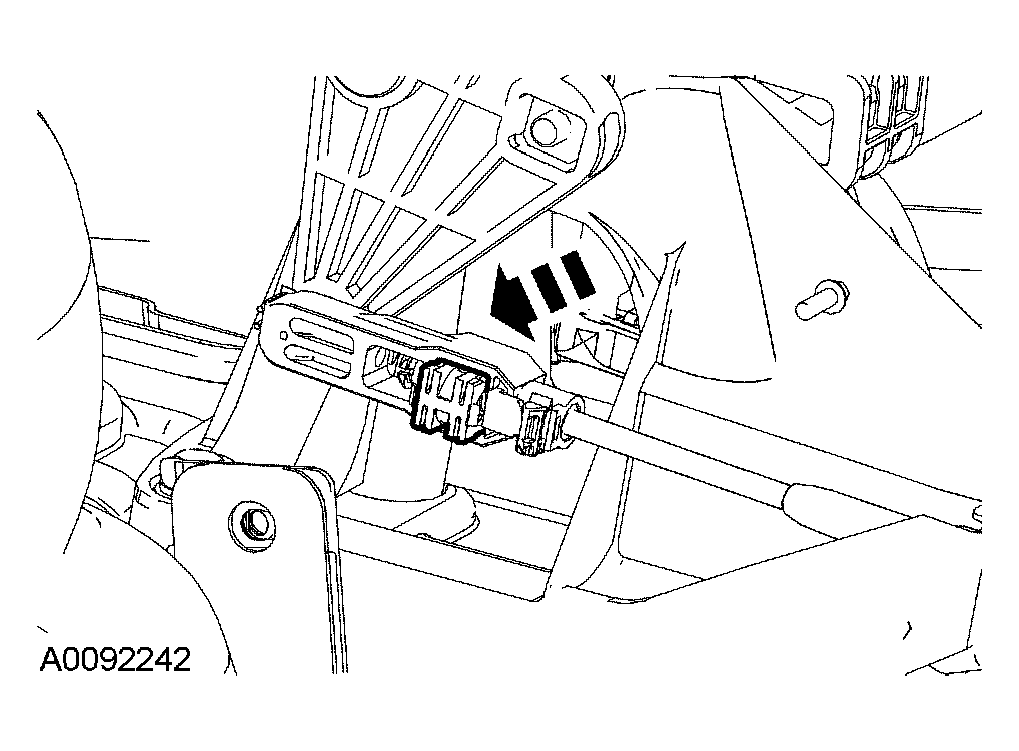

Fig 2: Disconnecting Shift Cable From The Ball Stud

Courtesy of FORD MOTOR CO.

Disengage the primary shift cable lock by sliding it out away from the shift cable.
With the shifter and the transmission in NEUTRAL, engage the primary shift cable lock.

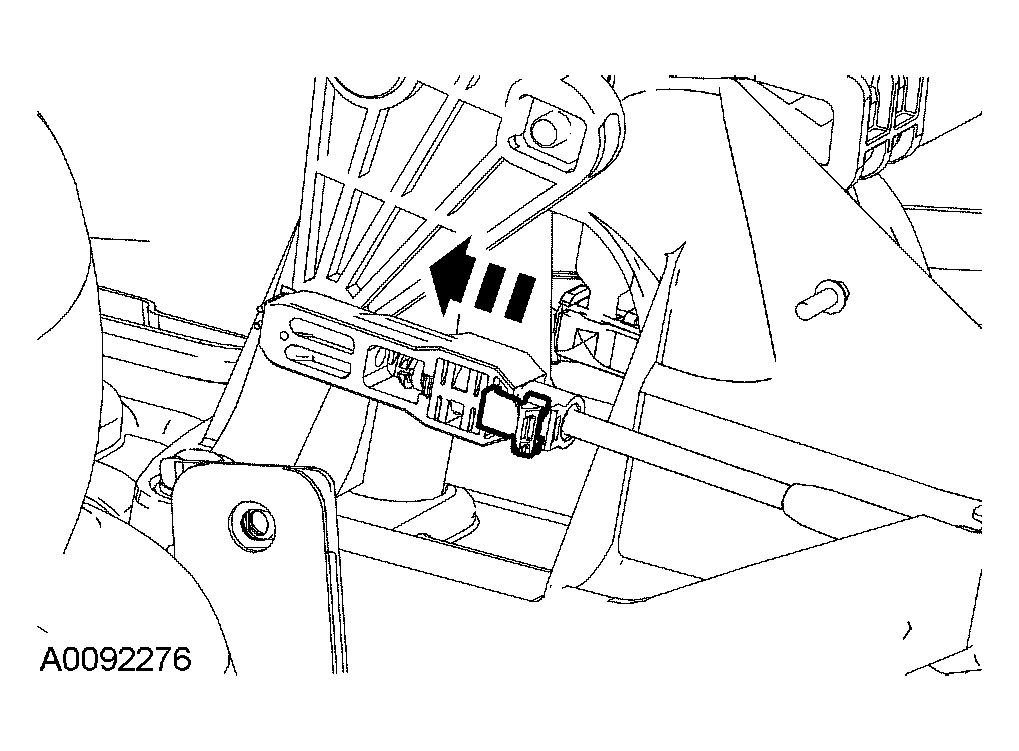

Fig 3: Engaging The Primary Shift Cable Lock
Courtesy of FORD MOTOR CO.
Engage the secondary shift cable lock by sliding it over the primary shift cable lock.

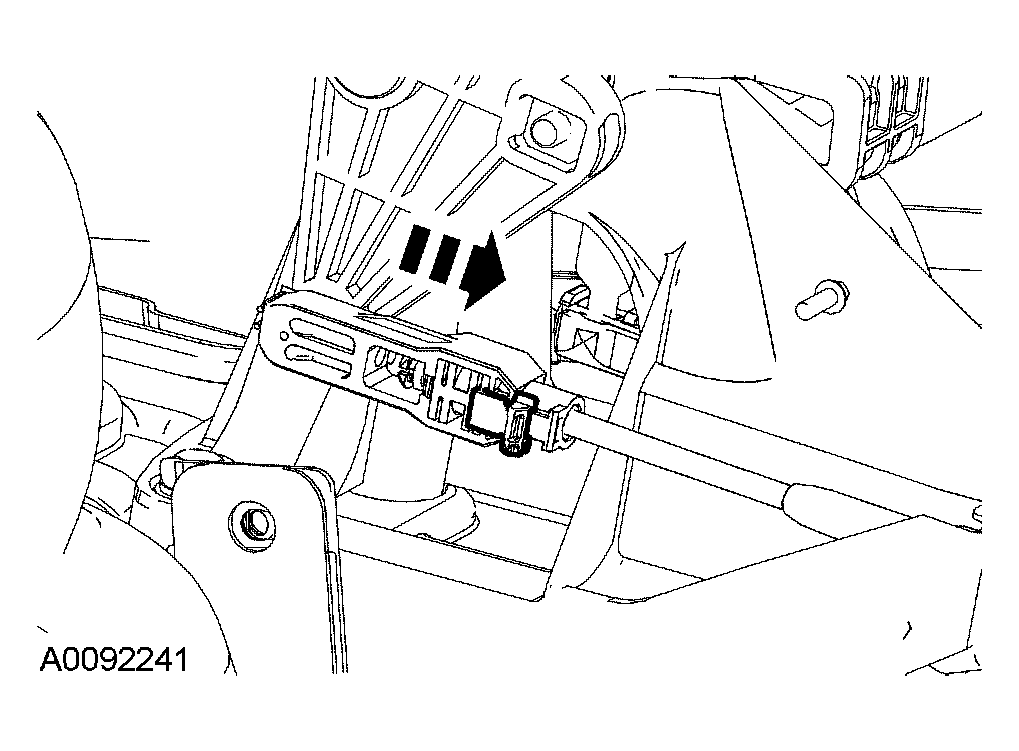

Fig 4: Sliding Primary Shift Cable Lock
Courtesy of FORD MOTOR CO.
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
