Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03901829
 Dial Indicator with Magnetic Base 100-D002 (D78P-4201-B) or equivalent
  1. Mount the special tool so that the indicator contact point rides on the straight edge which spans the clutch disc contact surface.
  2. Rotate the flywheel and check the runout. If the runout exceeds the maximum allowance, install a new flywheel.

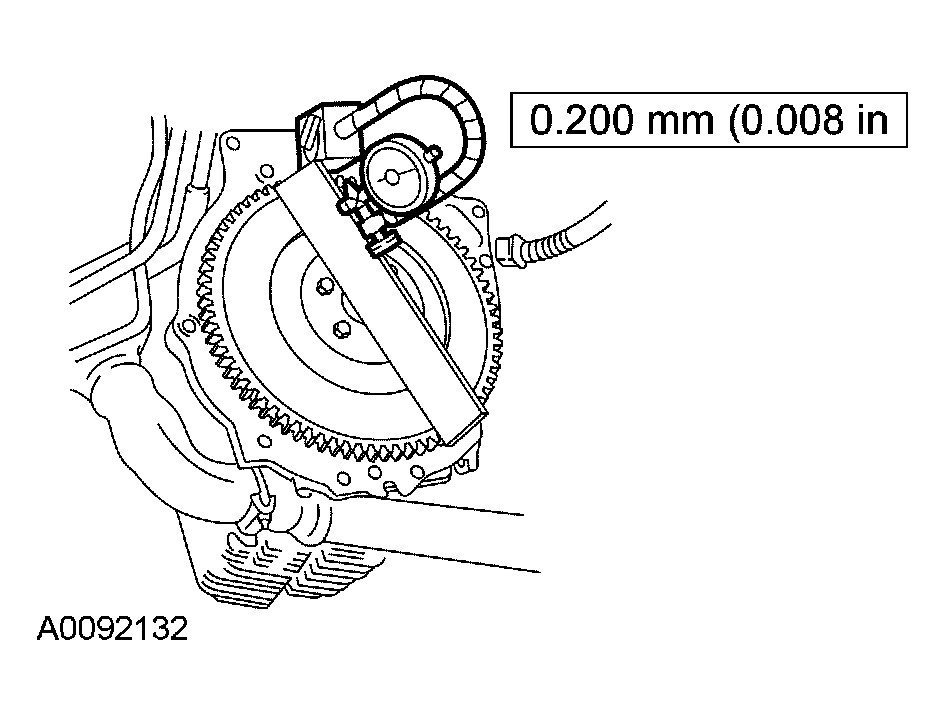

    Fig 1: Checking Runout
    G03901694Courtesy of FORD MOTOR CO.
