Clutch Pressure Plate Check

WARNING: This page is about a different variant/trim than selected.
  1. Check the clutch pressure plate surface for scoring, cracks or discoloration. Minor scratches or discoloration should be removed with a fine emery cloth.
  2. Measure the flatness of the clutch pressure plate surface with a straightedge and a feeler gauge.

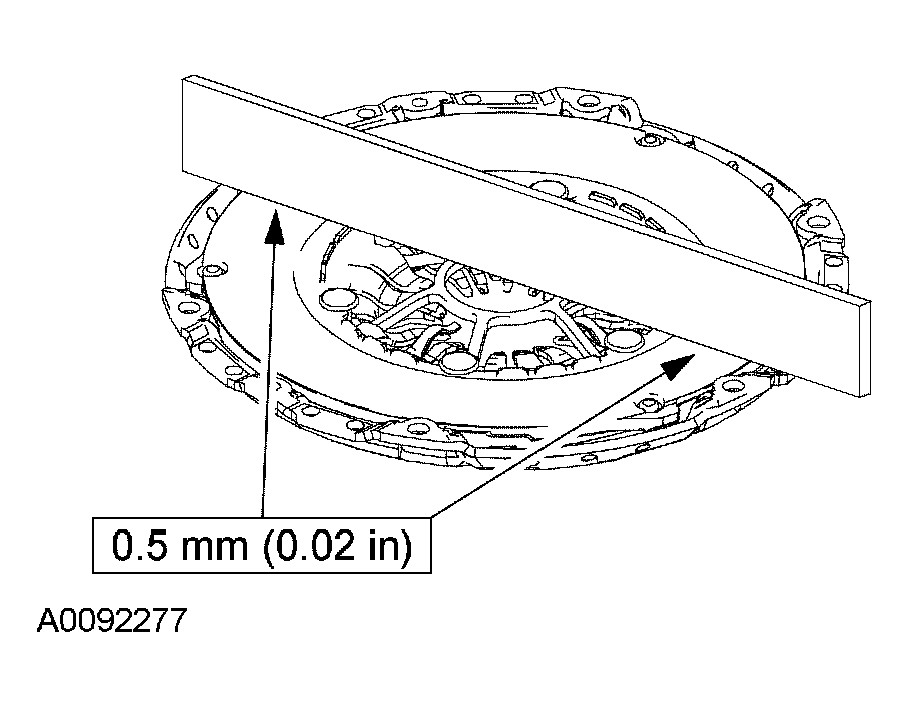

    Fig 1: Measuring The Flatness Of The Clutch Pressure Plate Surface With Straightedge And A Feeler Gauge
    G03901691Courtesy of FORD MOTOR CO.
  3. Check the diaphragm spring fingers for discoloration, scoring and bent or broken segments.
  4. Measure the wear of the diaphragm spring fingers.
    Fig 2: Measuring The Wear Of The Diaphragm Spring Fingers
    G03901692Courtesy of FORD MOTOR CO.
