Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03950580
 3-Bar Engine Support Kit 303-F072 or equivalent

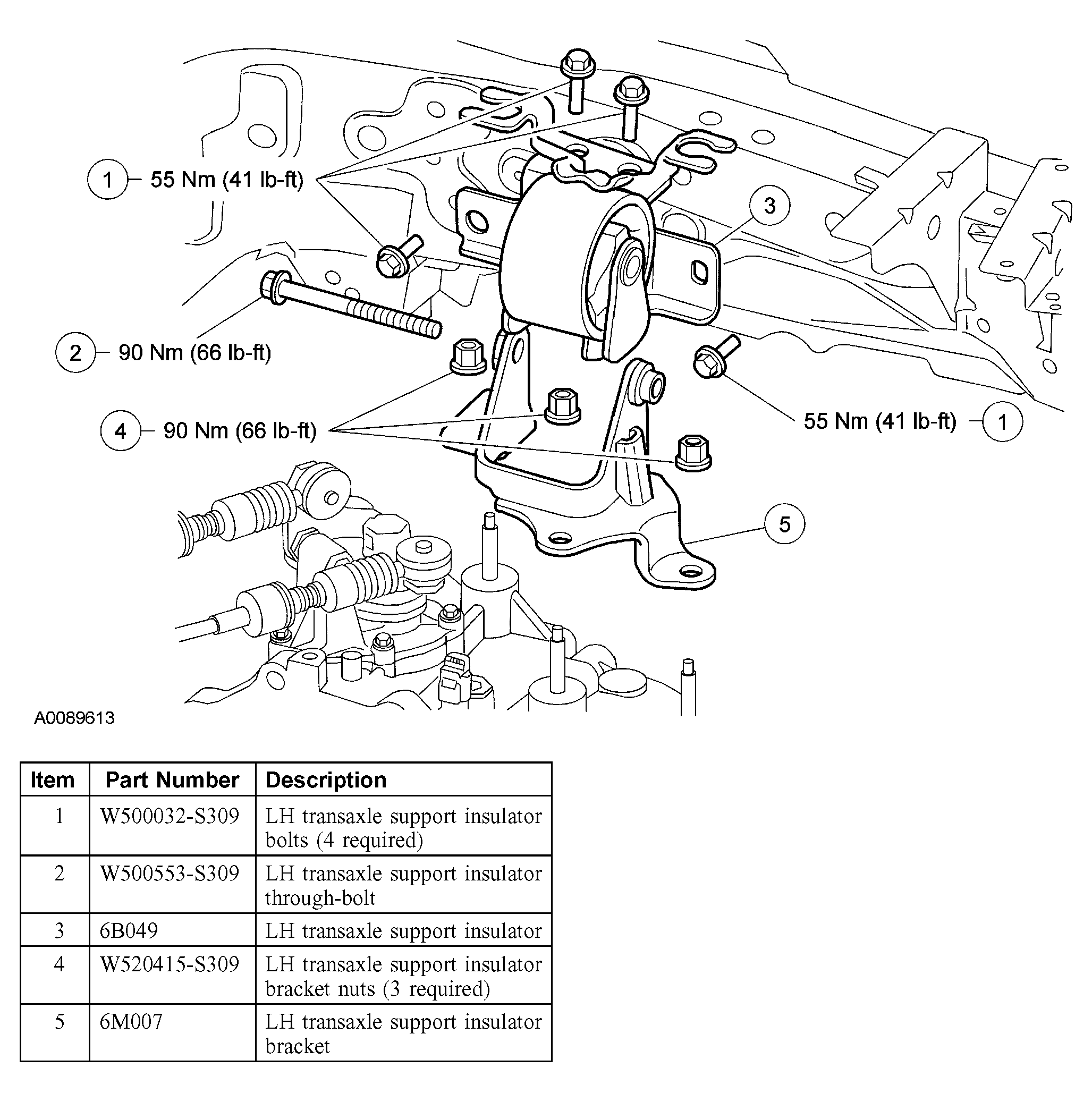

Fig 1: Transaxle Support Insulator -- LH With Torque Specifications
G03901734Courtesy of FORD MOTOR CO.
