Transaxle Front Support Insulator: Notes

WARNING: This page is about a different variant/trim than selected.

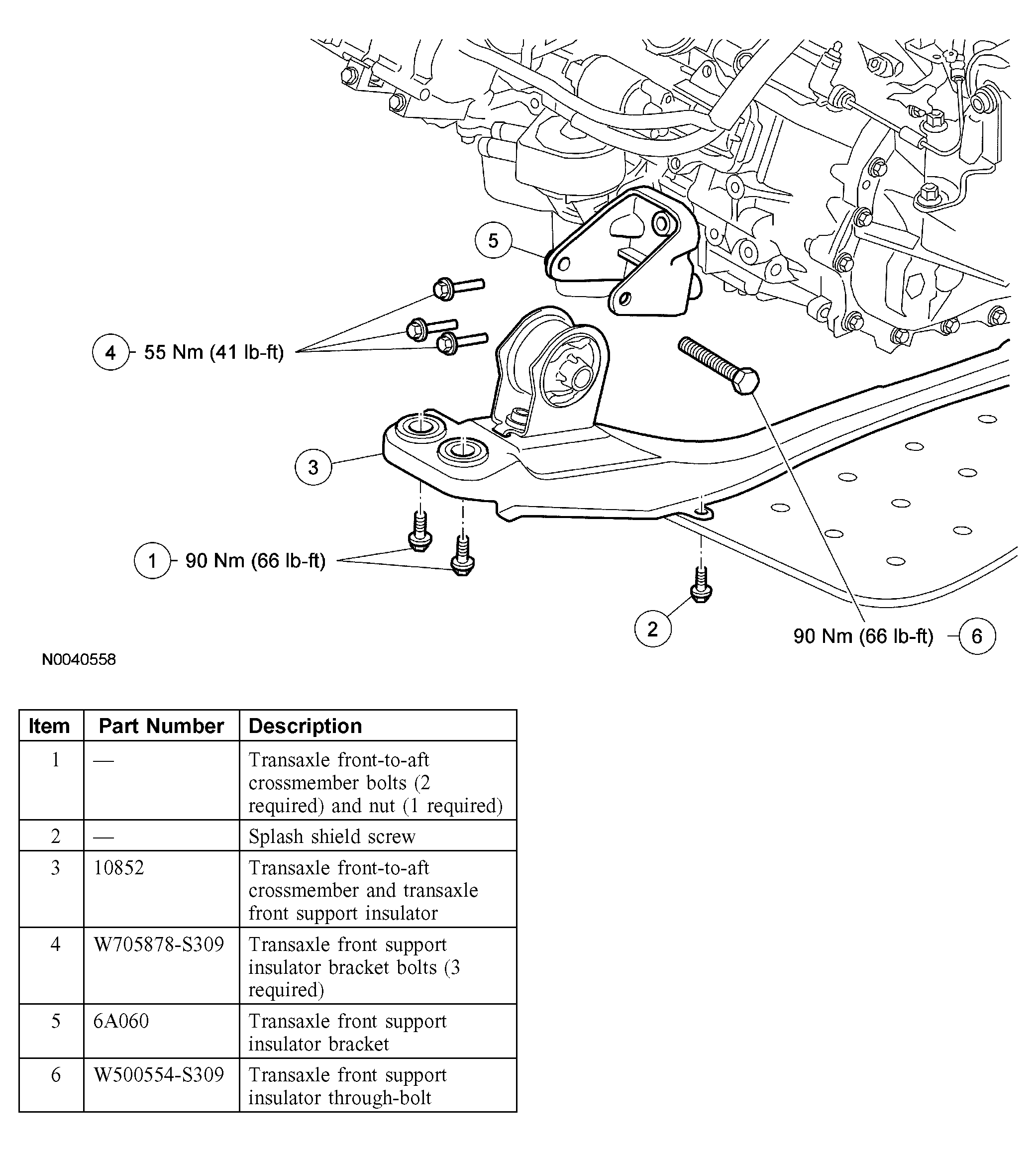

Fig 1: Transaxle Front Support Insulator With Torque Specifications
G03901736Courtesy of FORD MOTOR CO.
