Removal and Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: New halfshaft oil seals should be installed anytime the halfshafts are removed. Failure to install new halfshafts seals may result in transmission oil leak(s).
NOTE: RH intermediate shaft oil seal shown in Fig 1, LH halfshaft oil seal similar.
  1. Remove the RH intermediate shaft or LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  2. Using the special tools, remove the RH intermediate shaft oil seal or the LH halfshaft oil seal.

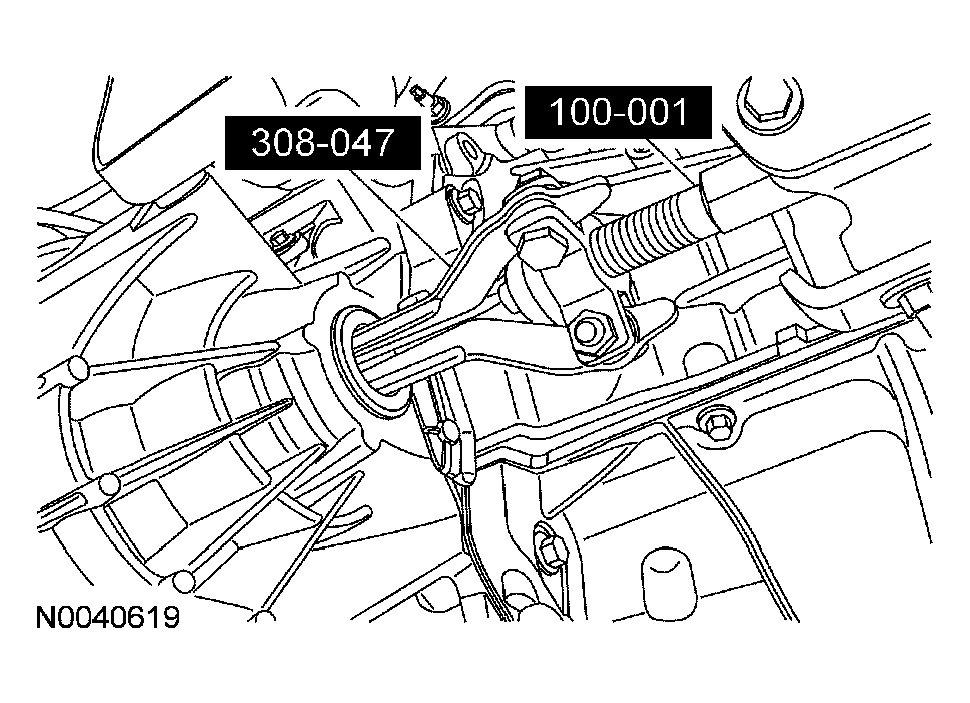

    Fig 1: Removing RH Intermediate Shaft Oil Seal
    G03901730Courtesy of FORD MOTOR CO.
