Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03901829
 Dial Indicator with Holding Fixture 100-D002 or equivalent
G03901790
 Bearing/Oil Seal Plate 205-090 or equivalent
G03901765
 Spindle/Axle Shaft Installer 205-199 or equivalent
G03901841
 Bearing Puller 205-D064 or equivalent
G03883793
 2nd Gear Bushing Installer 308-580 or equivalent
G03883793
 1st Gear Bushing Installer 308-581 or equivalent

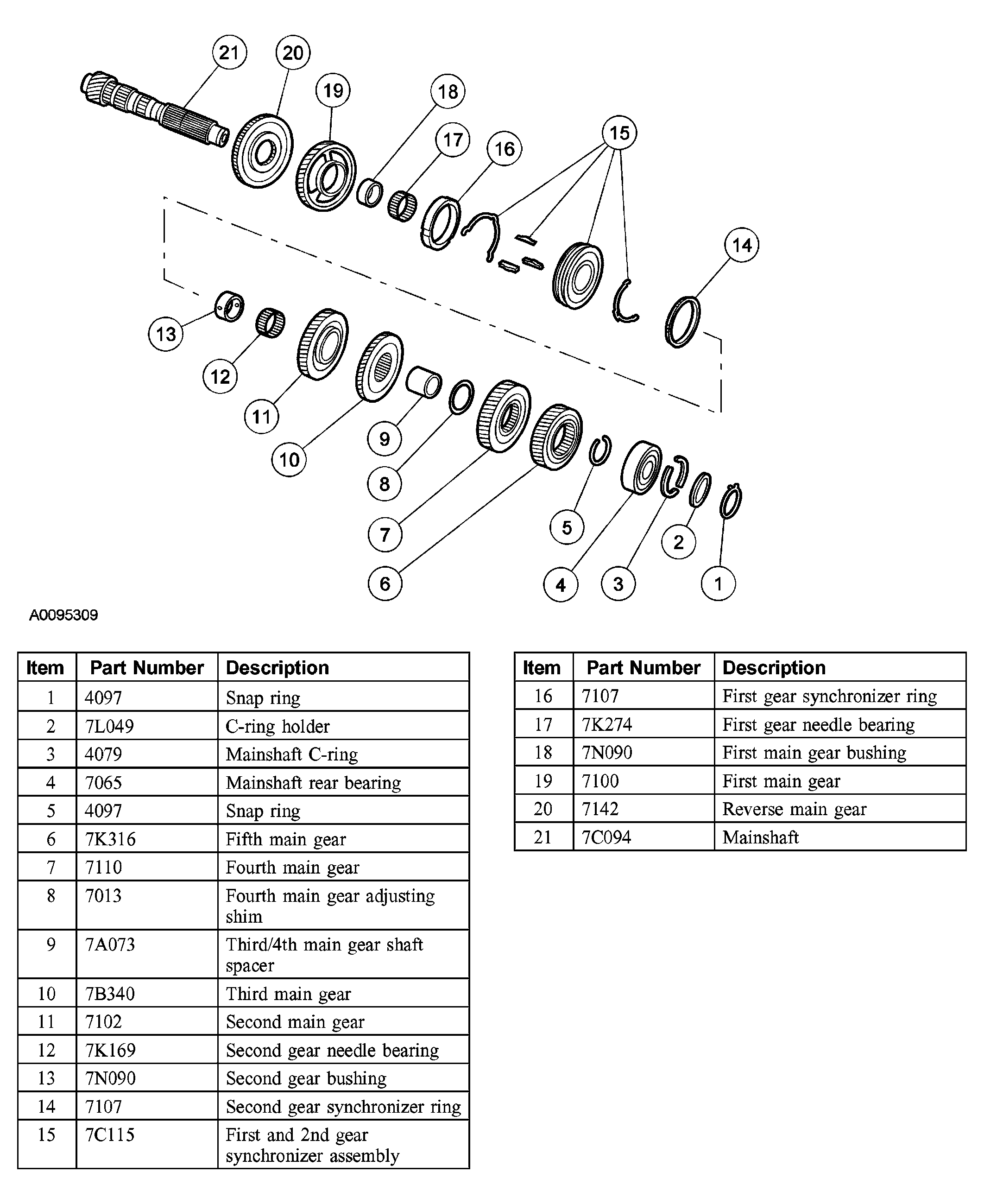

Fig 1: Disassembling/Assembling Mainshaft
G03901795Courtesy of FORD MOTOR CO.
