Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03901765
 Installer, Spindle/Axleshaft 205-199 or equivalent
G03901841
 Puller, Bearing 205-D064 or equivalent
G03883793
 Input Bearing Installer 308-582 or equivalent

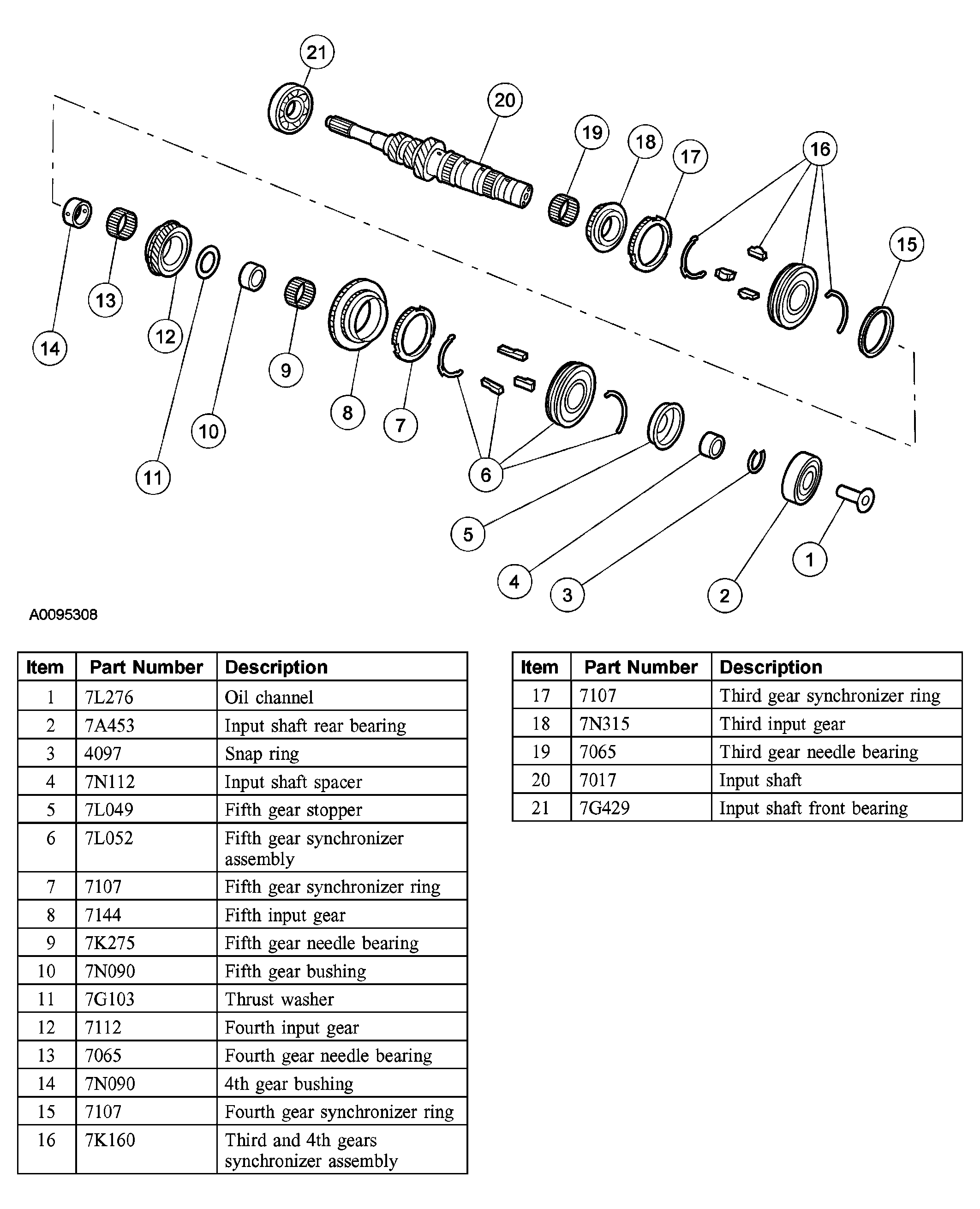

Fig 1: Disassembling/Assembling Input Shaft
G03901768Courtesy of FORD MOTOR CO.
