Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03901829
 Dial Indicator Gauge with Holding Fixture 100-D002 or equivalent
G03901840
 2-Jaw Puller 205-D035 or equivalent
G03901841
 Bearing Puller 205-D064 or equivalent

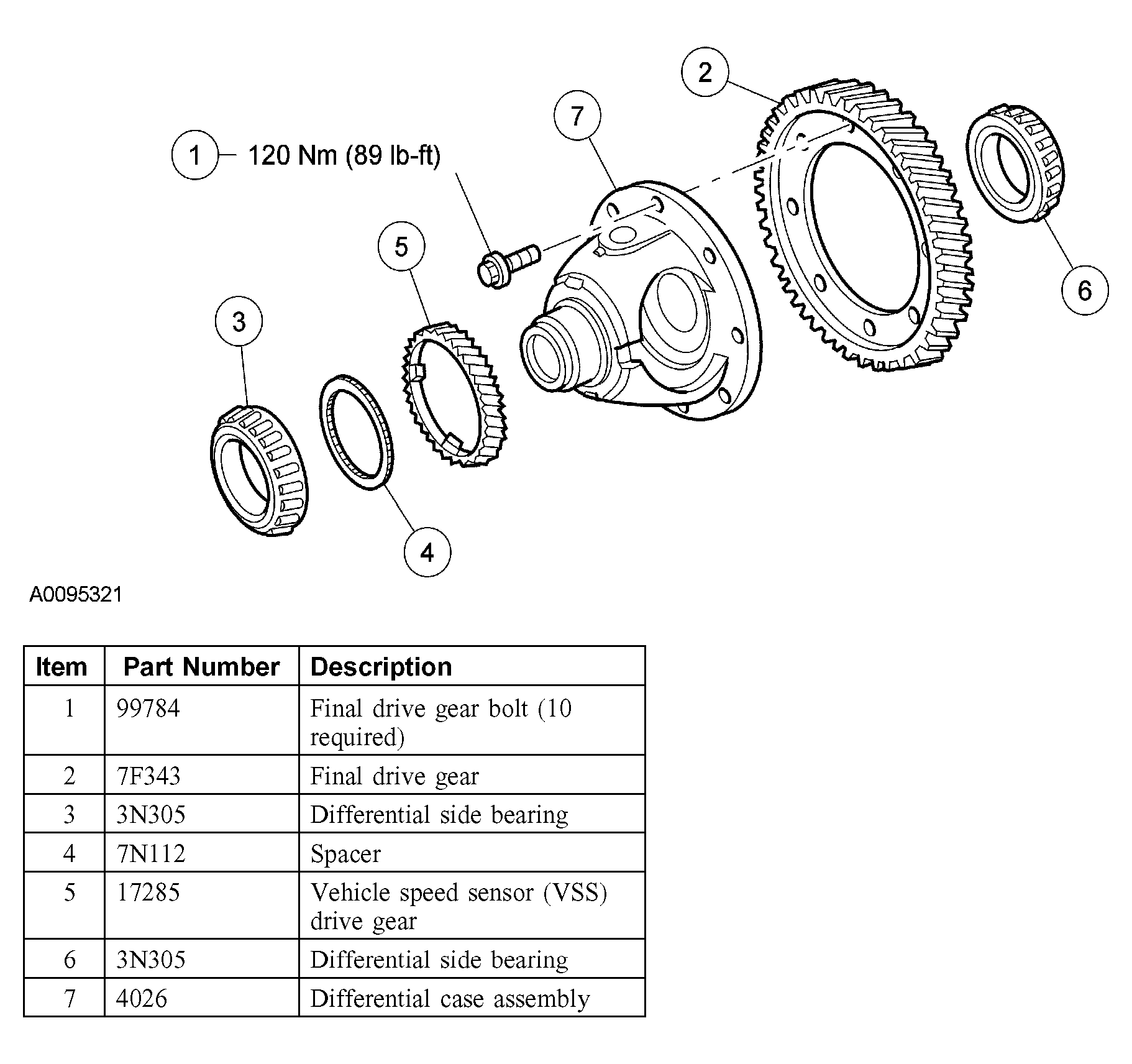

Fig 1: Identifying Differential - FWD
G03901832Courtesy of FORD MOTOR CO.
